EHMD Series
EHMD Series
EHMD Series
EHMD Series
EHMD Series

EHMD Series

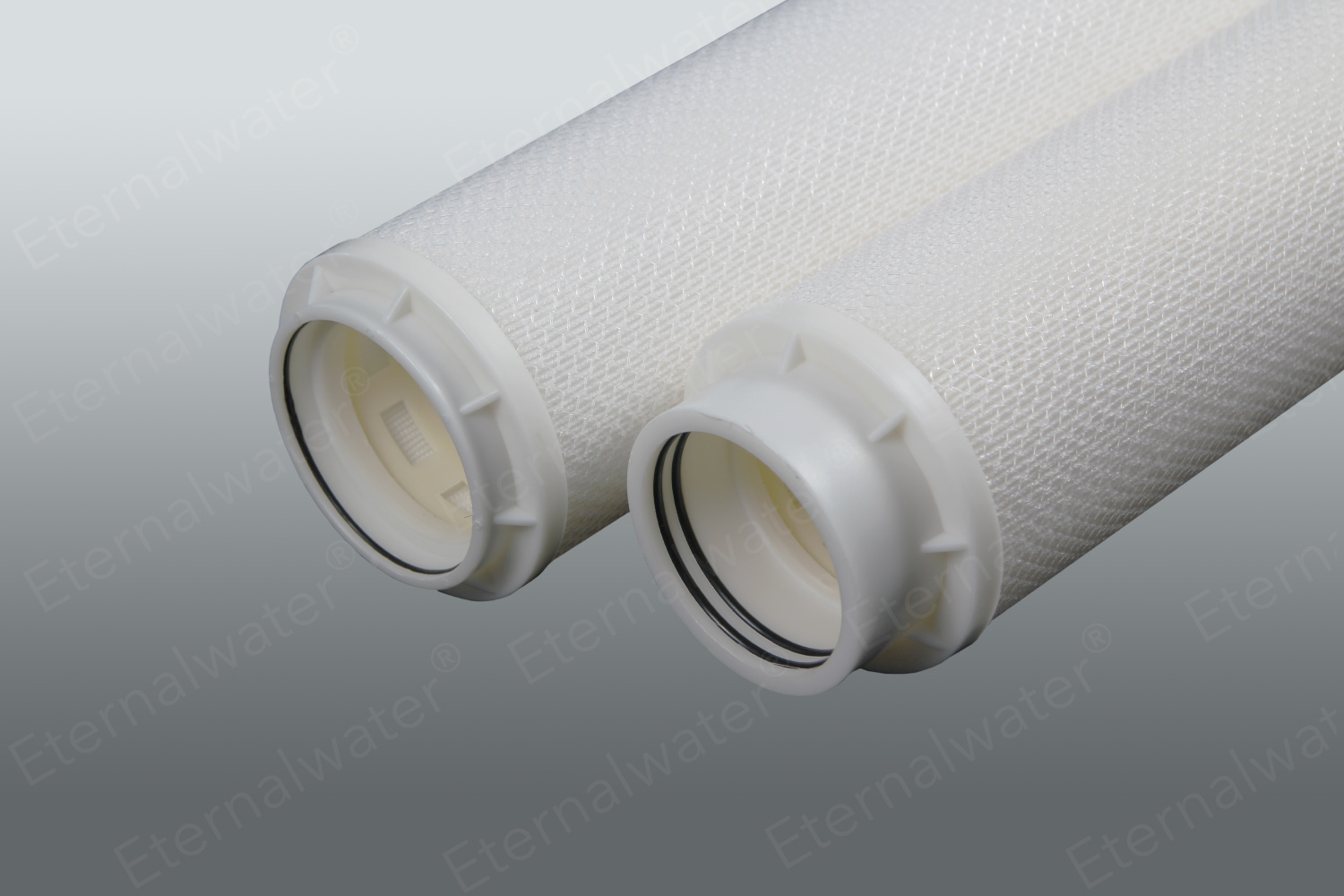

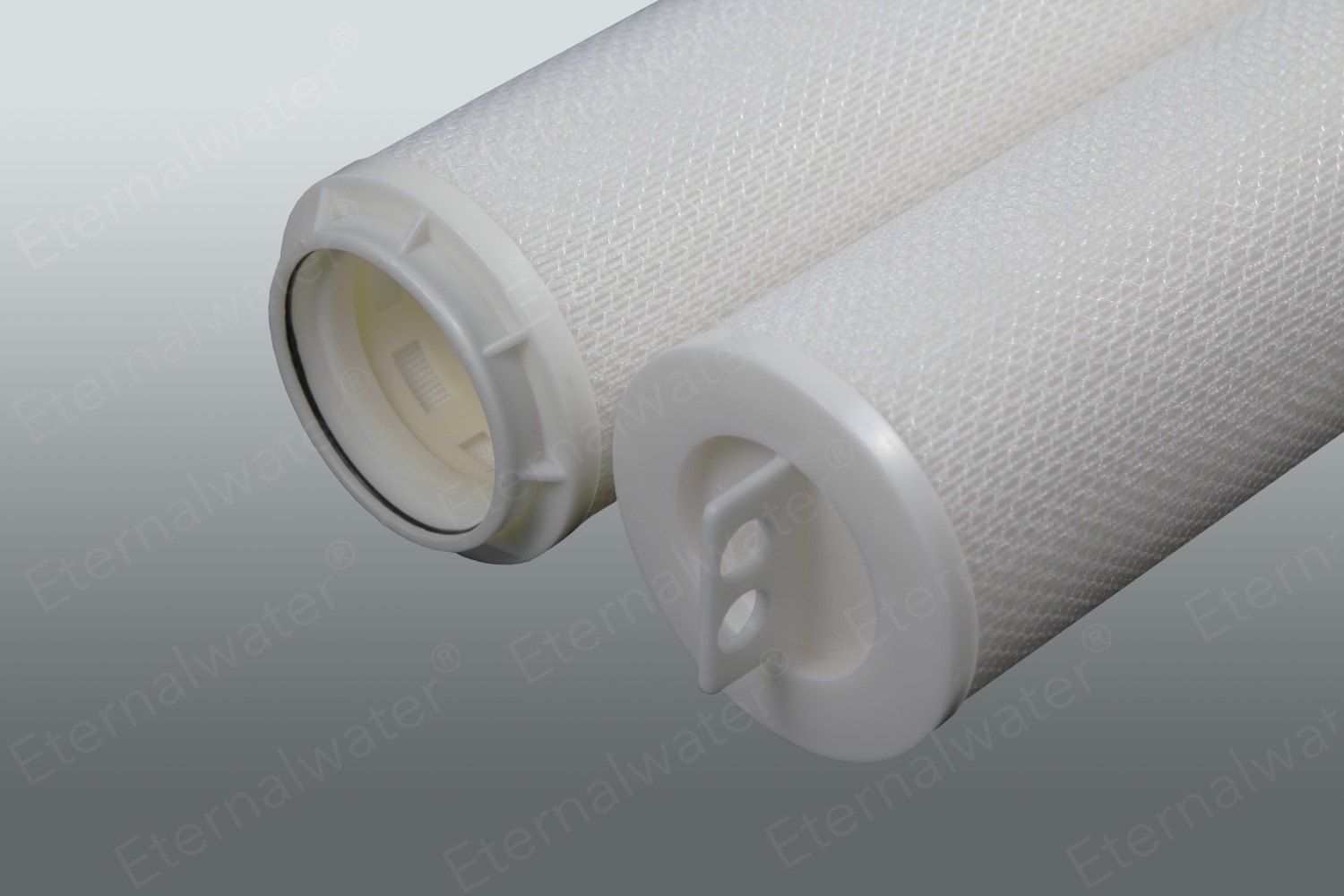

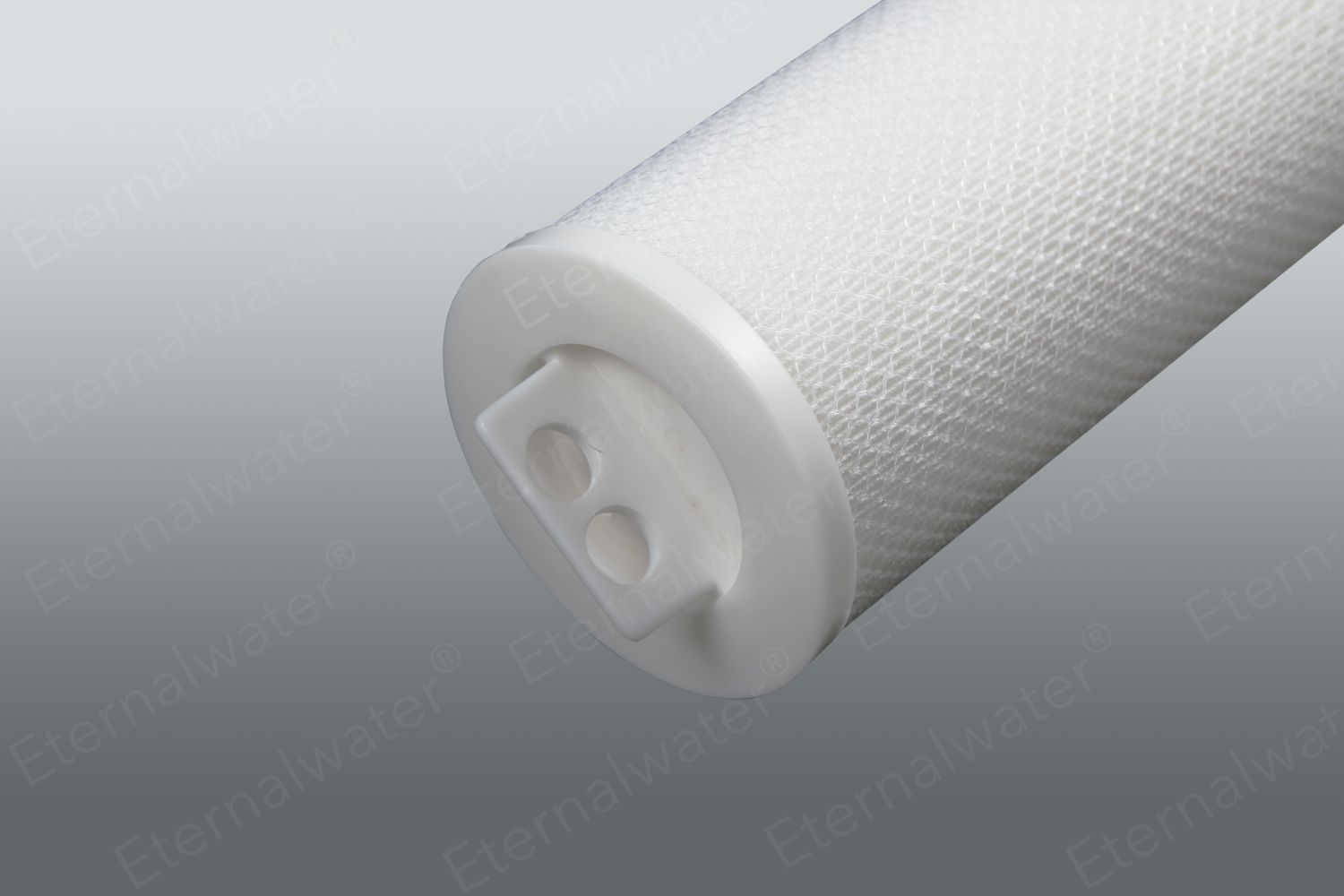

This large-flow filter element has a 6" large-diameter structure and it is welded and produced in a unique horizontal folding design. It adopts an external pressure type and is equipped with a filtration efficiency of more than 99%, a large filtration area, high pollution capacity, and high throughput, which effectively reduces the quantity of filter and the space required. It is widely used in various industries for security filtration, circulating water filtration, and liquid impurity removal filtration.
  • Product features
  • Large filtration area, high throughput, high pollution capacity External pressure structure Pure PP material, wide chemical compatibility Easy installation and replacement, saving manpower and time
  • Industry Application
  • General purpose: pre-filtration for reverse osmosis system, seawater desalination filtration General industry: filtration of process water, condensate water, cooling water, wastewater treatment, etc. Electronics industry: pre-filtration of deionized water Thermal power plant: condensate filtration Chemical/Petrochemical industry: filtration of various acids, alkalis, solvents, quench water, brine, etc.
PRODUCT DESCRIPTION
  • Operating conditions
  • Operating temperature: ≤80℃
  • Maximum pressure difference that can withstand: 2.4bar (21℃)
  • proposal Change the pressure drop: 2.2bar (21℃)
  • Material structure
  • Filter material: PP,GF
  • brace: PP
  • skeleton: PP
  • End cap: PP
  • Gasket/O-ring: EPDM, silica gel, fluororubber, PTFE coated, PTEF
  • Filter element size
  • external diameter: 6"(152mm)
  • length: 40"
Ordering Information
  • Series
  • EHMD
  • Material
  • P=PP
  • Micron Rating
  • 100=1.00μm
  • 500=5.00μm
  • 1000=10.00μm
  • 5000=50.00μm
  • 10000=100.00μm
  • End cap type
  • B=Single inner seal
  • C=Inner double seal
  • Length
  • 40=40"
  • O-ring
  • S=Silicone
  • E=EPDM
  • core
  • W=Inner PP core+Outer grid
