GF -EBG Series

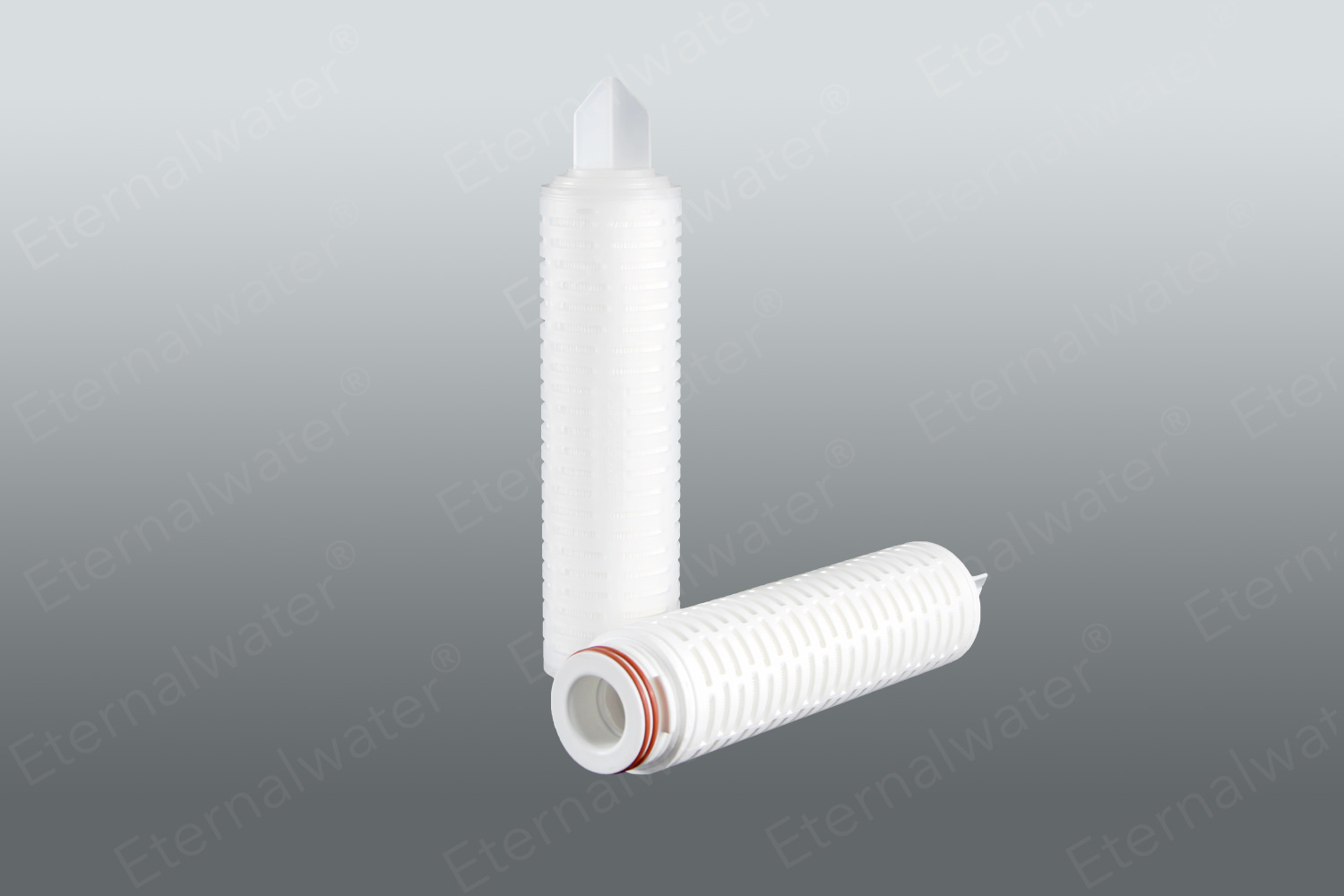

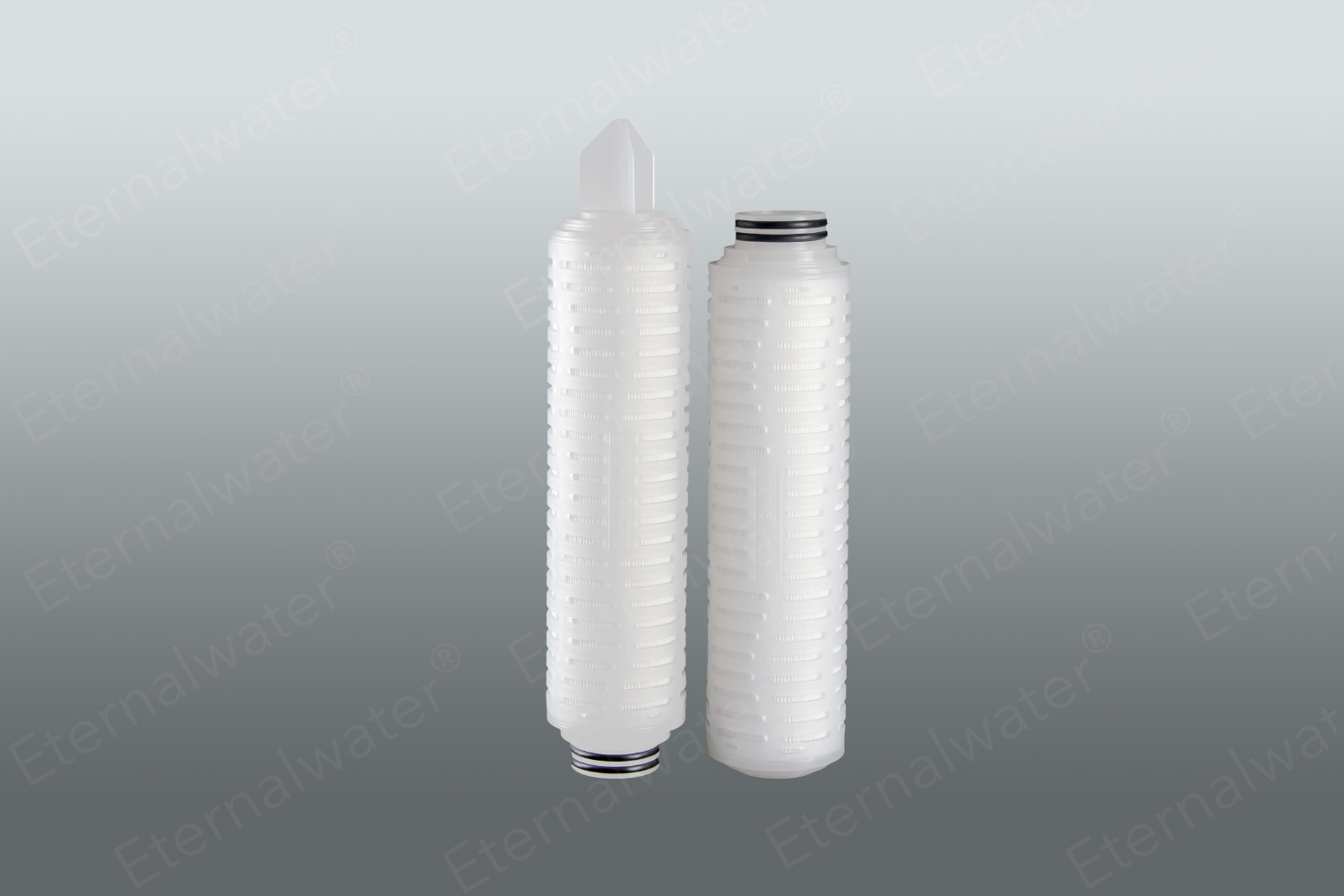

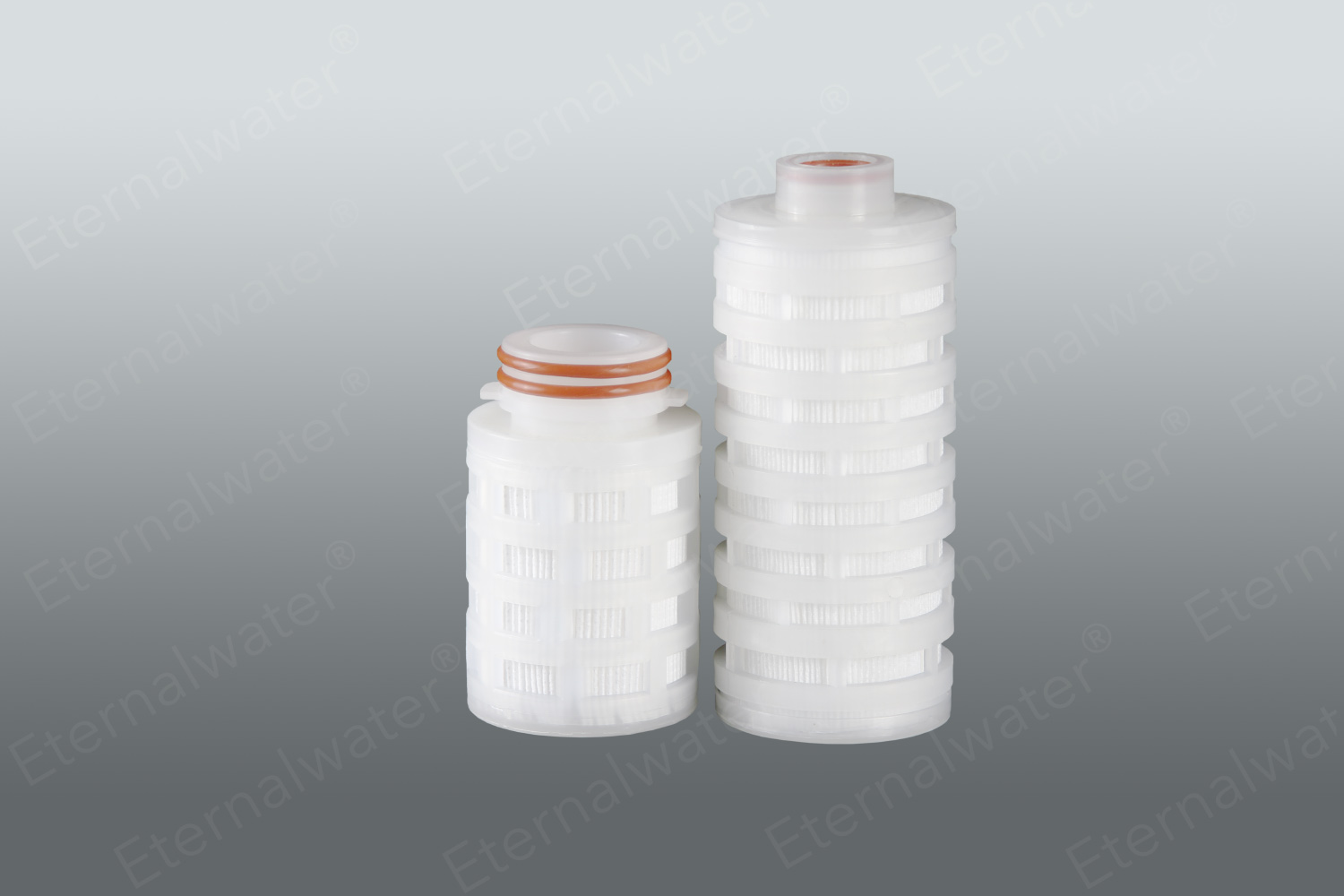

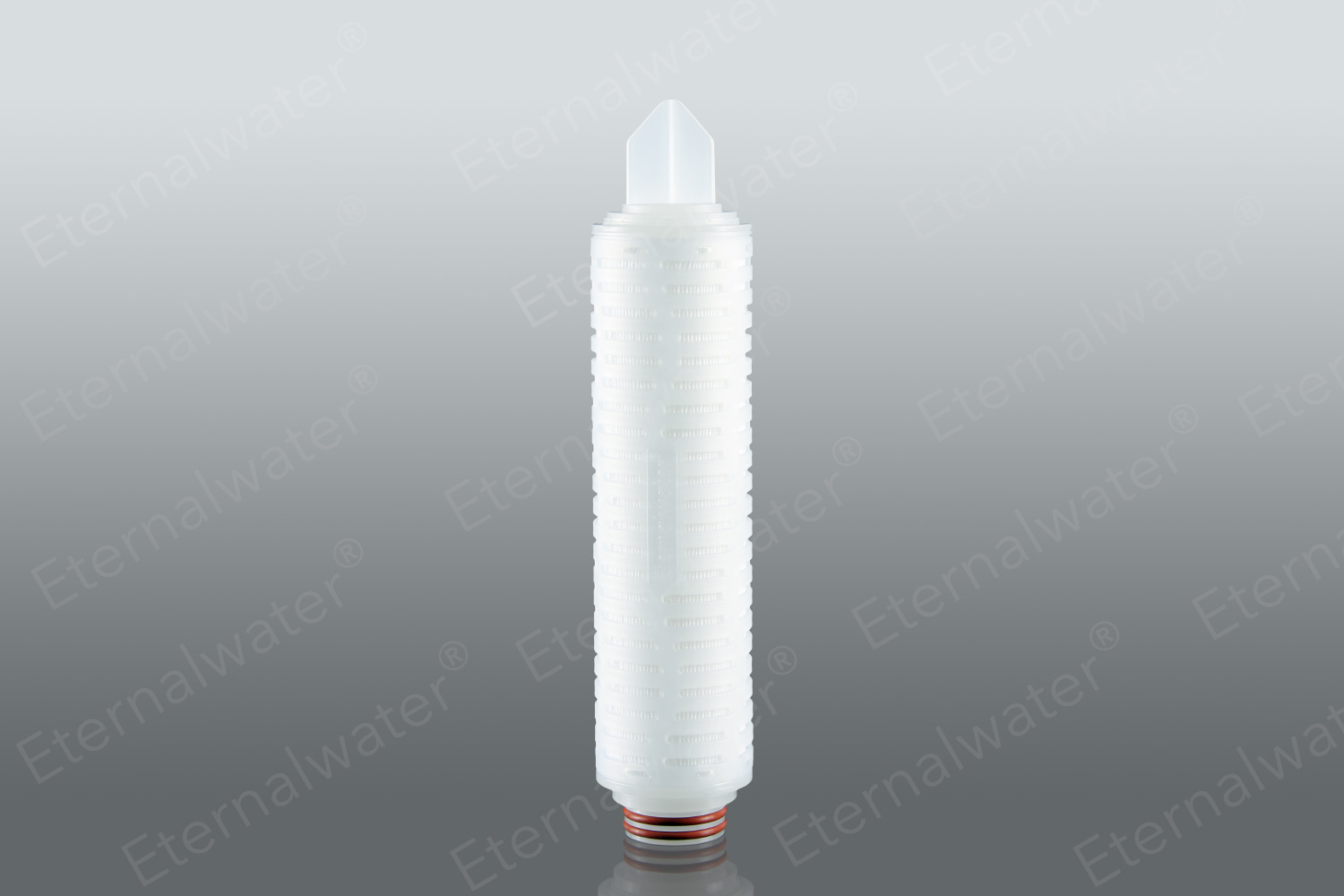

The pleated filter element adopts rigid ultra-fine glass fiber (GF) membrane, resulting from its high flow rate and large pollution capacity, adsorption effect, good retention effect, and low leaching characteristics, it becomes an efficient pre-filtration filter element. The integrity test before leaving factory ensures the high quality of the products.

Product features
High flow rate and large pollution capacity The dissolved matter is very low and there is no fiber falling off. Each filter element passes integrity test.

Industry Application
Electronics industry: terminal filtration for ultrapure water preparation, semiconductor wet equipment terminal filtration, water-based reagent filtration. Pharmaceutical industry: pre-filtration of cell culture media, pre-filtration of serum and blood products, decarburization filtration of APIs and preparations, clarification filtration of viscous or colloidal liquids. Food industry: terminal filtration of mineral water and pure water.

PRODUCT DESCRIPTION

Operating conditions
Operating temperature: ≤80℃
Maximum pressure difference that can withstand: 4bar (21℃)／2.4bar (80℃)
Sterilization method: 121℃/30min steam sterilization

Material structure
Filter material: mixed fiber membrane
Inner core: PP
Cover: PP
End cap: PP
Sealing technology :Hot-Melt Welding
Gasket/O-ring: EPDM, silica gel, fluororubber, PTFE coated, PTEF

Filter element size
external diameter: 68mm
length: 5〞、10 〞、20 〞、30〞、40〞

Ordering Information

Series

EBG

Micron Rating

022=0.22μm

045=0.45μm

100=1.00μm

500=5.00μm

1000=10.00μm

End cap type

J1=222/Fin

J2=222/Flat

J3=226/Fin

J4=226/Flat

J5=DOE

Length

05=5"

10=10"

20=20"

30=30"

40=40"

O-ring

S=Silicone

E=EPDM

V=Viton

D=PTFE

core

A=PP core

B=PP core+Interface lined with stainless steel

C=PP core+Lined with stainless steel
