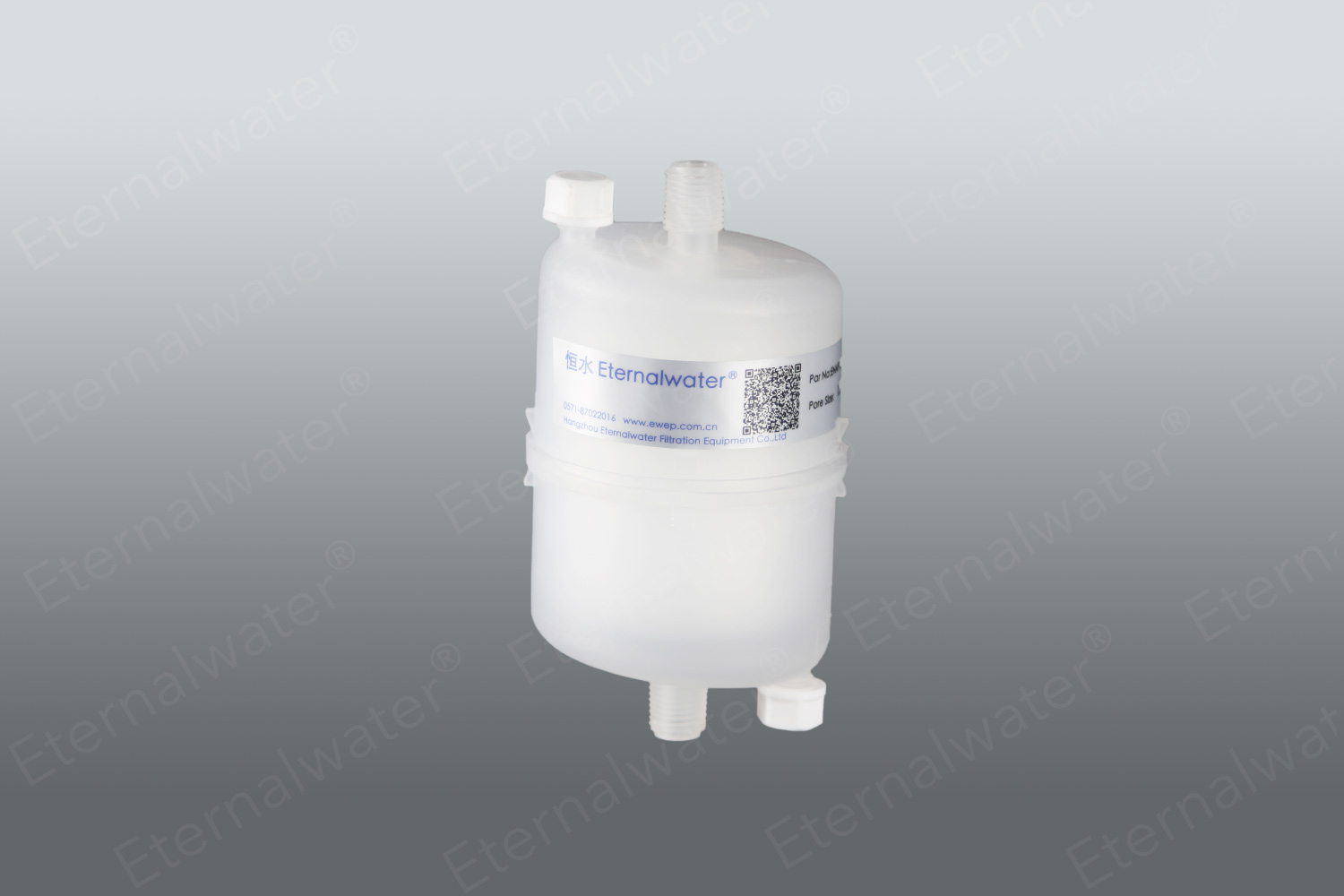

KZ capsule filter

The capsule filter of KZ series has a variety of volumes for choices. Its cannulated connection for inlet and outlet has the advantages of quick installation and convenient use. The internal filter element can be configured with appropriate membrane material according to the characteristics of the filter material, which has a very wide range of applicability, and it is especially suitable for the filtration of small doses of material liquid.

Product features
Match various filter media and precision Low precipitation and high-pressure resistance Reasonable structure, convenient connection and the loss reduction of residual material

Industry Application
Pharmaceuticals, microelectronics, chemicals, inks, food and beverages

PRODUCT DESCRIPTION

Material structure
Filter media: PP、PES、PTFE、Nylon
Shell material: PP
Size of inner core: 2.5”、5”
Filter area: 0.11㎡/0.22㎡
Filtration accuracy: 0.01μm-50μm
Interface form: ½”KZ 1’KZ (25 mm quick chuck / 50 mm quick chuck)

Operating conditions
Operating temperature : ≤60℃
Maximum pressure difference that can withstand: 2bar (21℃)
It is recommended to replace the pressure drop : 1.5bar (21℃)

Ordering Information

Series

Material

P=PP

S=PES

T=Hydrophobic PTFE

TL=Hydrophilic PTFE

V=Hydrophobic PVDF

VL=Hydrophilic PVDF

N6=N6

N66=N66

M=MCE

Micron Rating

005=0.05μm

010=0.10μm

022=0.22μm

045=0.45μm

100=1.00μm

500=5.00μm

Length

25=2.5"

50=5"

Interface

A=1/4“NPT

B=3/8"NPT

C=1/2"NPT

D=1/4"

E=3/8"

F=1/2"

G=0.5"

H=1.5"
