Outside pressure large flow filter cartridge EKD Series

Outside pressure large flow filter cartridge EKD Series

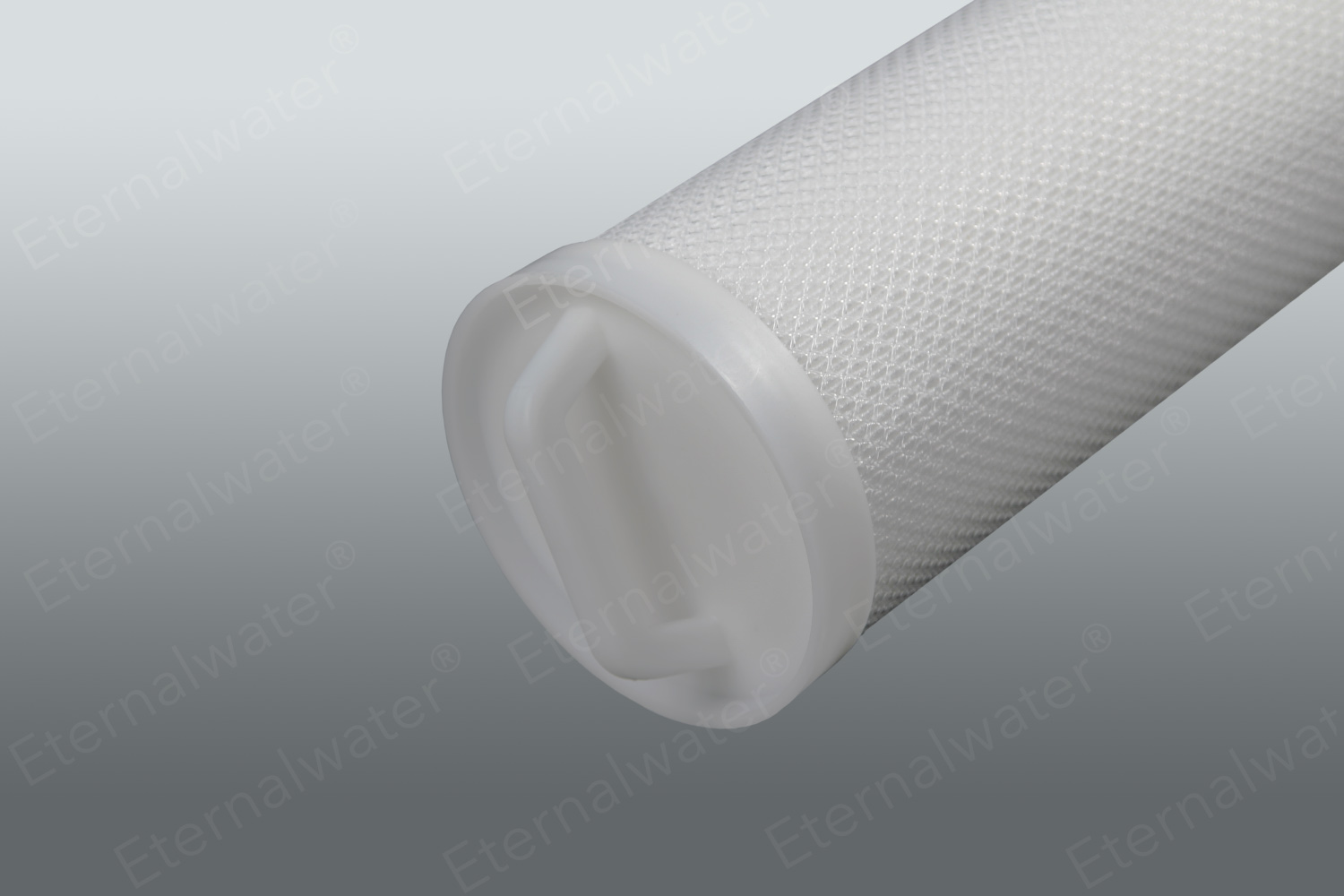

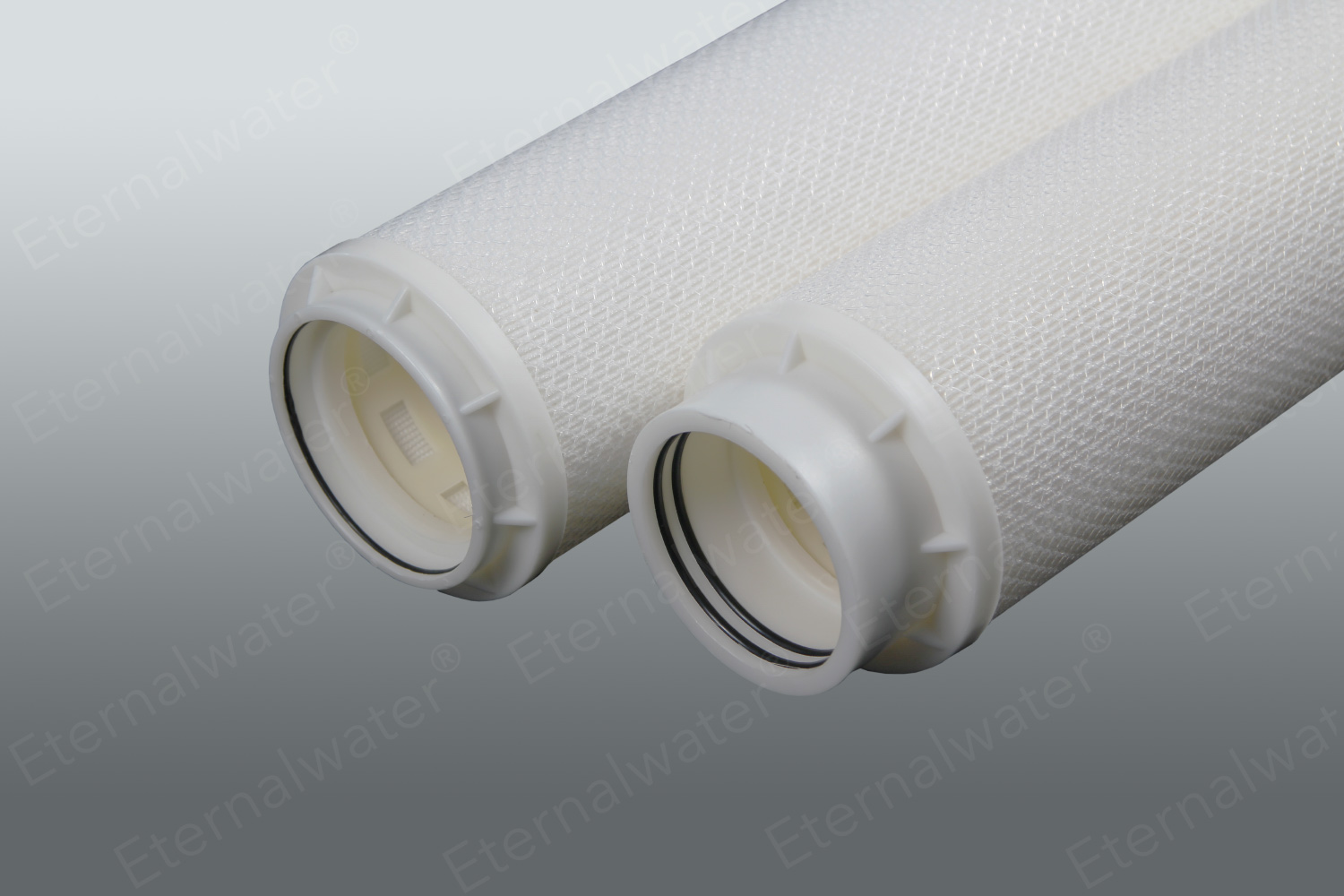

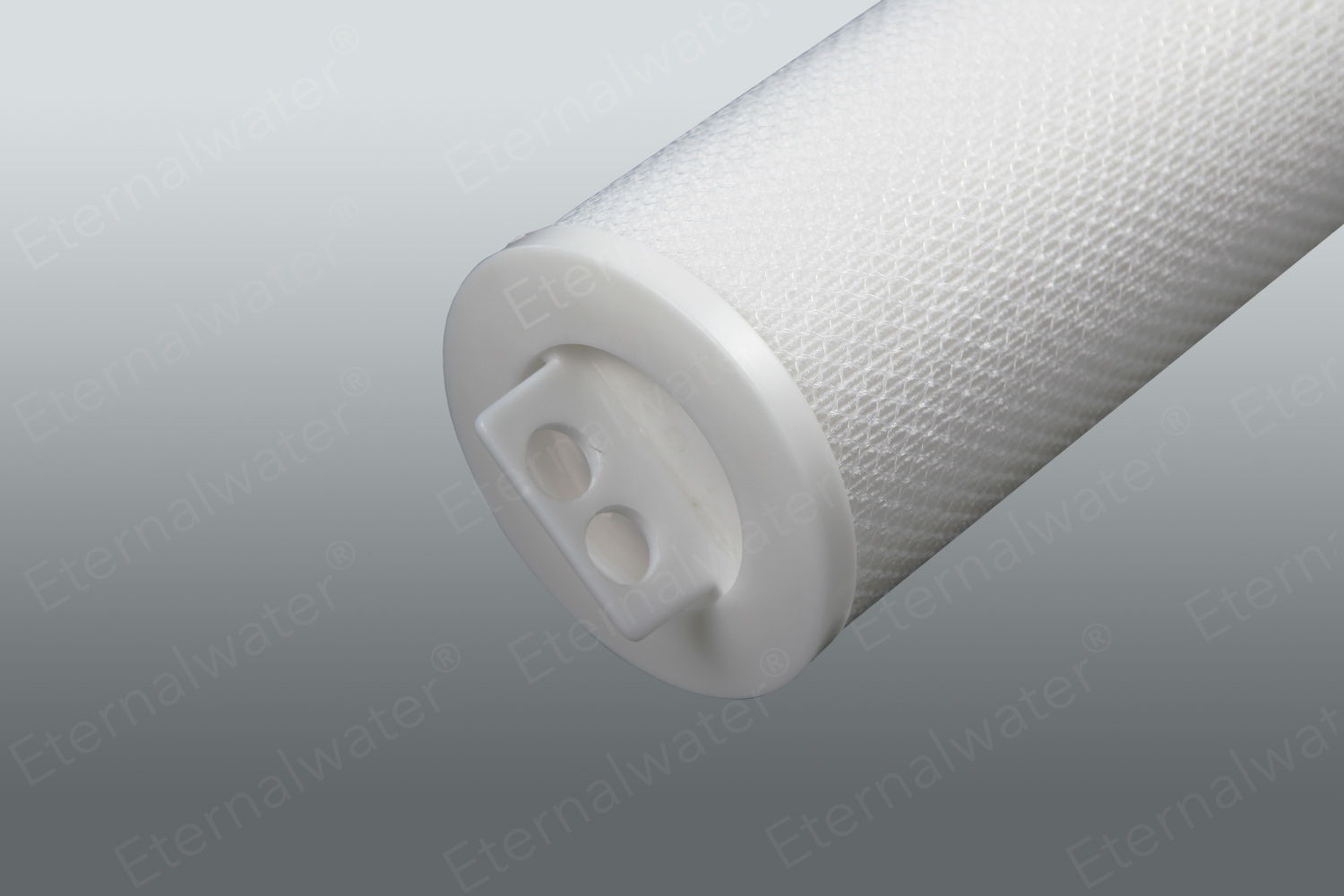

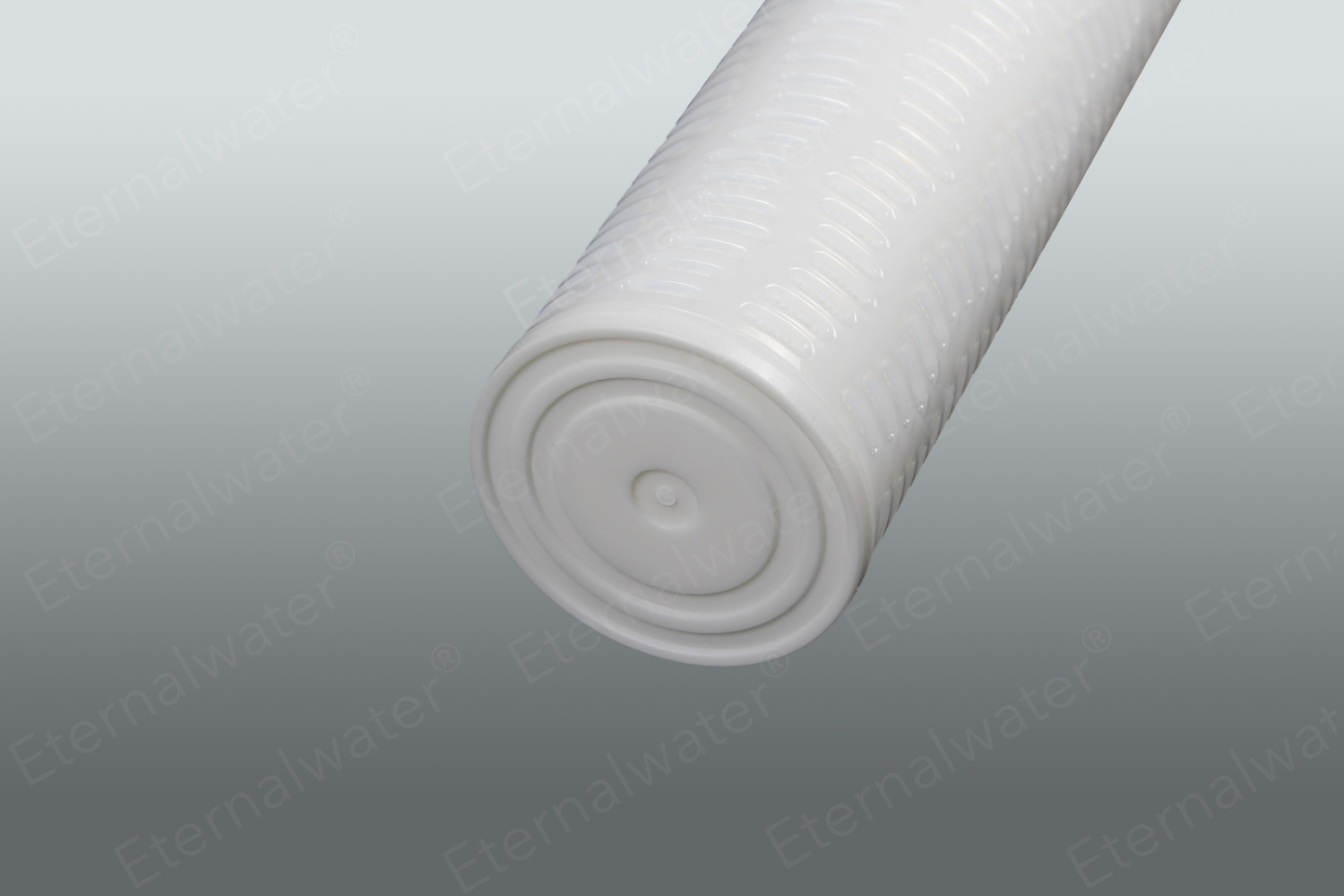

EKD series high-flow filter cartridge adopts large diameter (6 " ) structure, folded and welded. It has a high-strength polypropylene support frame inside, and the liquid flow direction is from the outside to the inside. The external support is an integral polypropylene frame and Polyester filter. Two kinds of structures.Special structure makes it have a larger filtration area .
  • Product features
  • High dirt holding capacity and long service life
    Pure polypropylene material offers broad chemical compatibility
    The original product size of the end cap can be used universally
    Multi-layer gradient pore structure improves filtration efficiency
  • Industry Application
  • Petrochemical industry
    Chemical paint
    Paint production
    Oil injection
    Produced water treatment Condensate oil treatment process
    Sewage disposal
    Production wastewater treatment
    Domestic sewage treatment
    Aquaculture
    Purification treatment of aquaculture water
  • DOWNLOAD
  • INQUIRY NOW
PRODUCT DESCRIPTION
  • Length:
  • 20" 40" 60"
  • Outer diameter:
  • 161mm
  • Filter material:
  • Polypropylene(PP)、Glass fiber(GF)
  • Cage:
  • Polypropylene(PP)、Glass fiber(GF)
  • Material of Sealing O-ring:
  • EPDM、Red silicone、Buna-N
  • Removal Rating:
  • 0.5μm、1μm、3μm、5μm、10μm、 20μm、50μm、100μm
  • Maximum working temperature:
  • Polypropylene(PP)82°C Glass fiber(GF)121°C
  • Maximum working pressure drop:
  • Polypropylene(PP)3.4bar Glass fiber(GF)3.4bar
  • Recommended pressure drop for filter cartridge replacement :
  • 2.4Bar@20°C
  • Flow direction:
  • From inside to out
  • Maximum Flow rate:
  • 20" 24m3/H 40"48m3/H 60"72m3/H
Ordering Information
  • Series
  • EKD
  • Material
  • P=PP
  • G=GF
  • Micron Rating
  • 050=0.50μm
  • 100=1.00μm
  • 300=3.00μm
  • 500=5.00μm
  • 1000=10.00μm
  • 2000=20.00μm
  • 10000=100.00μm
  • Appearance
  • A=Diamond mesh
  • Length
  • 20=20"
  • 40=40"
  • 60=60"
  • O-ring
  • S=Silicone
  • E=EPDM
  • N=Buna-N
  • Center pole
  • A=PP Skeleton
  • G=GF Skeleton
  • C=None
