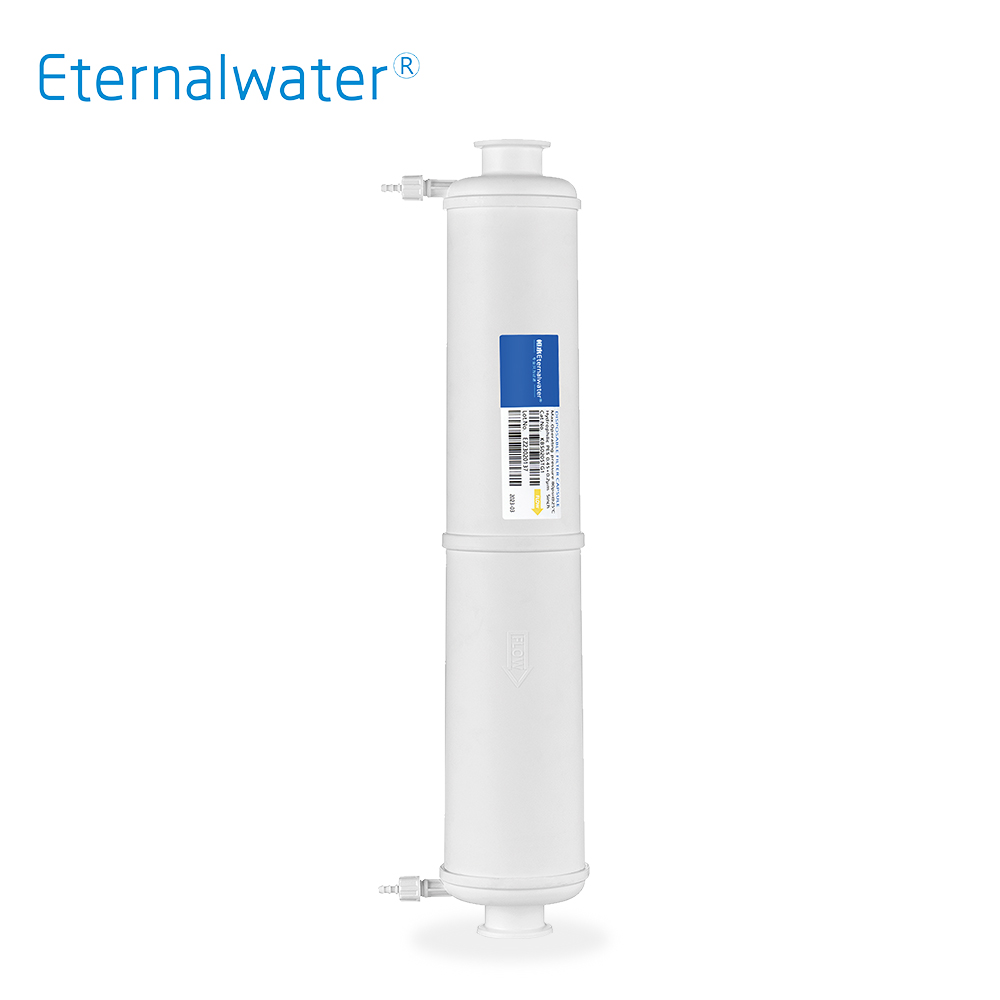

High protein permeation low adsorption sterilizing grade filter cartridge

High protein permeation low adsorption sterilizing grade filter cartridge

Eternalwater ELV Series--Sterilizing filter cartridge, using hydrophilic polyvinylidene fluoride (PVDF) membrane, PVDF membrane has low protein adsorption performance and low extractables , especially suitable for filtration of sterile vaccines, biological reagents, culture media fluids, etc.
  • Product features
  • High protein permeability, low adsorption
    Low precipitation
    Good corrosion resistance, oxidation resistance, heat resistance
    100% integrity tested ensures sterilization absolutely
    Widely chemical compatibility, PH working range 1-14
    Each filter cartridge corresponds to a unique serial number, which can be tracked throughout the process
  • Industry Application
  • Filtration of biological reagent
    Filtration of culture media
    Filtration of blood product
    Filtration of vaccine
    Sterilization and filtration of antibiotic solutions
  • DOWNLOAD
  • INQUIRY NOW
PRODUCT DESCRIPTION
  • Filter Material:
  • Hydrophilic polyvinylidene fluoride membrane (PVDF)
  • Center core / Housing / End cap Material:
  • Polypropylene
  • Cage material:
  • Polypropylene
  • Vent O-ring Material:
  • Silicone/ EPDM/ Viton
  • Filtration area:
  • ≥0.6m²/10inch
  • Maximum working temperature:
  • 80℃
  • Maximum working:
  • 4.2bar@23℃（forward direction)
  • pressure difference:
  • 2.4bar@80℃（forward direction）
  • Sterilization:
  • 126℃/30min； high pressure steam sterilization；≥30 times
  • Endotoxin:
  • ＜0.25EU/mL
  • Extractable matter:
  • ＜30mg/10inch
  • Biocompatibility:
  • All materials comply with biosafety evaluation of plastic USP<88>, ClassVI-70°C level
  • Integrity Test Method:
  • Bubble point, diffusion flow; for detailed parameters, please consult the sales engineer of Eternalwater Company
Ordering Information
  • Series
  • ELV Series PVDF
  • Micron Rating
  • 010=0.10μm
  • 020=0.20μm
  • 045=0.45μm
  • 050=0.50μm
  • 060=0.60μm
  • 080=0.80μm
  • 100=1.00μm
  • 500=5.00μm
  • End cap type
  • J1=222/Fin
  • J2=222/Flat
  • J3=226/Fin
  • J4=226/Flat
  • J5=DOE
  • Length
  • 05=5"
  • 10=10"
  • 20=20"
  • 30=30"
  • 40=40"
  • O-ring
  • S=Silicone
  • E=EPDM
  • V=Viton
  • D=E-FKM
  • core
  • A=PP core
