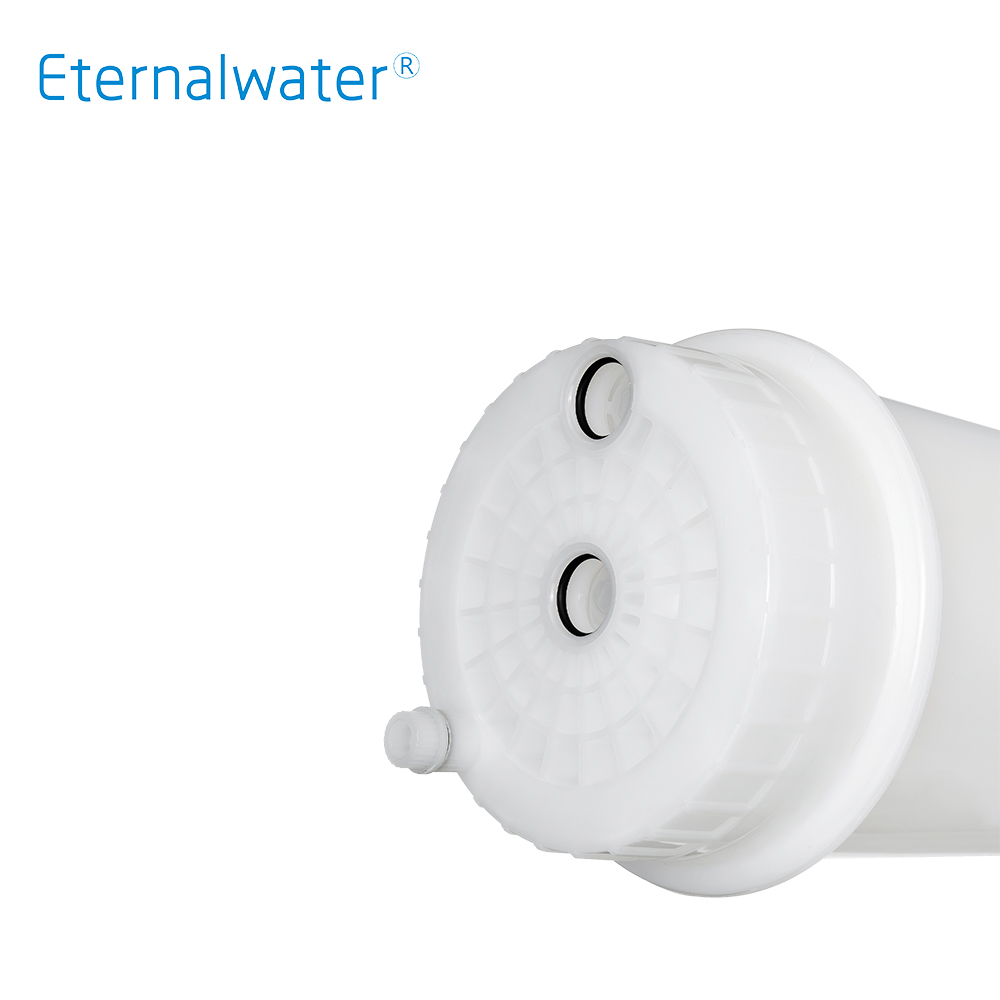

Seven-core capsule filter Used for high flow rate EAH Series
Seven-core capsule filter Used for high flow rate EAH Series

Seven-core capsule filter Used for high flow rate EAH Series

EAH Series seven-core capsule filter adopts an integrated design. On the basis of meeting the gradient winding structure of the polypropylene filter material, the filter area is increased by increasing the number of winding filter elements, effectively improving the filtration efficiency, thereby achieving the effect of long service life.
  • Product features
  • All polypropylene material, good chemical compatibility
    Drainable design ensures rapid recovery of slurry
    Using hot melt welding process, there is no risk of precipitation
    of other adhesives and metal foreign matter
    Suitable for production lines with low model change frequency
    helping to increase production capacity
  • DOWNLOAD
  • INQUIRY NOW
PRODUCT DESCRIPTION
  • Shell material:
  • Polypropylene (PP)
  • Filter membrane material:
  • Polypropylene (PP)
  • Number of filter cartridge:
  • 7 cores
  • Filter cartridge length:
  • 10inch、20inch
  • Sealing o- ring:
  • EPDM
  • Maximum operating temperature:
  • 80°C
  • Outer diameter:
  • 210mm
  • Exhaust valve thread size:
  • R 1/4
  • Check valve material:
  • Seal=PP/Spring=SUS304
  • Inner filter cartridge structure:
  • Winding filter cartridge
  • Maximum working pressure:
  • 0.7Mpa
Ordering Information
  • Series
  • EAH Series
  • Removal Rating
  • 3000=30μm
  • 4000=40μm
  • 5000=50μm
  • 20000=200μm
  • 30000=300μm
  • filter cartridge length
  • 10=10 inch
  • 20=20 inch
  • Sealing o- ring
  • E=EPDM
