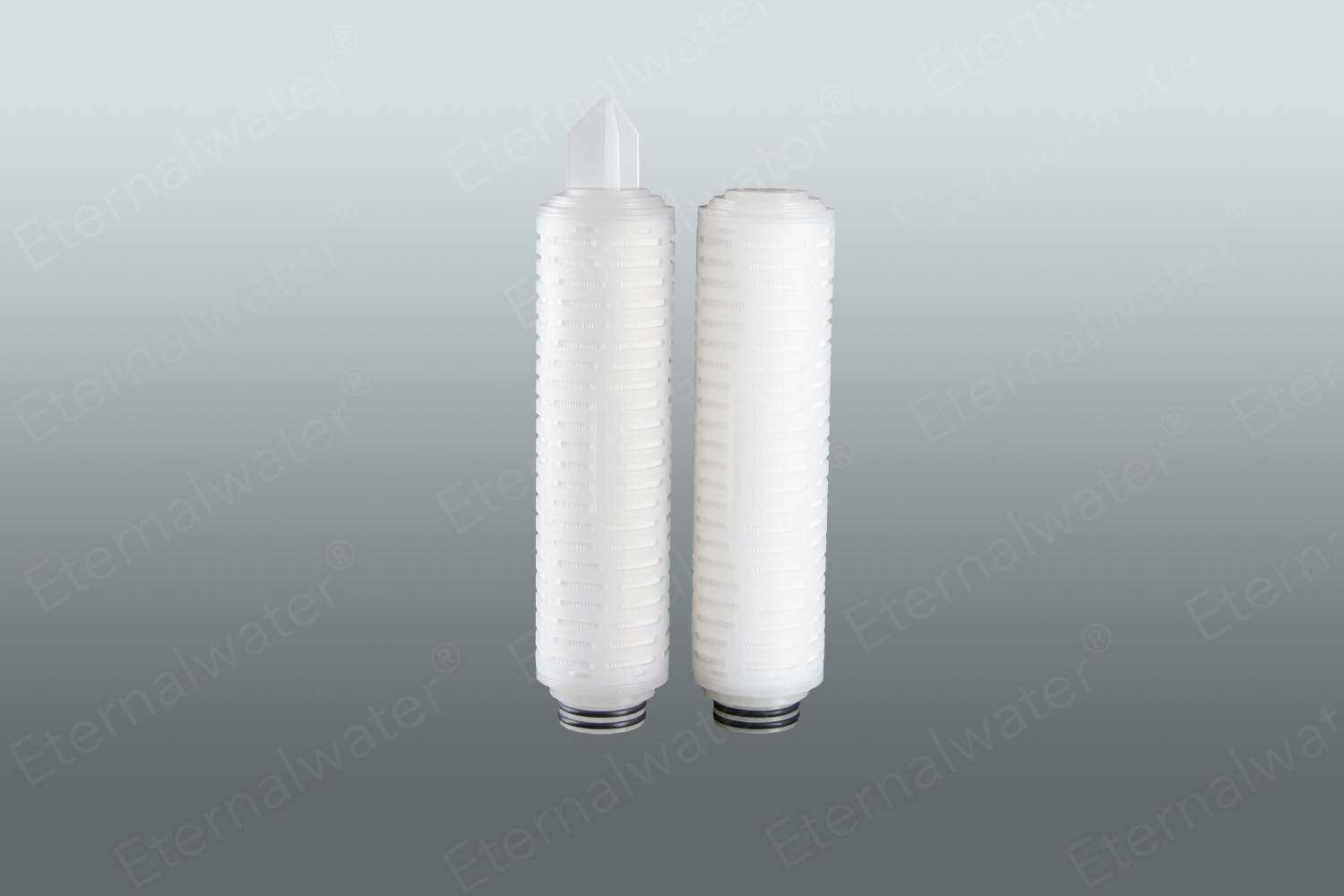

PTFE ELT Series

The hydrophilic PTFE filter element adopts a permanently modified hydrophilic PTFE membrane. The hydrophilic PTFE membrane has wide chemical compatibility without the need of pre-wetting.The integrity test before delivery ensures the high quality of products.

Product features
Modified hydrophilicity, free of wetting, natural hydrophobicity, corrosion resistance Broad chemical compatibility Absolute pore size to ensure effective filtration

Industry Application
Electronic industry: Filtration of hydrophilic solvents, various acids, alkalis and other corrosive solutions Pharmaceutical industry: Solvent sterilization and filtration, and filtration of corrosive, strong oxidizing liquids

PRODUCT DESCRIPTION

Operating conditions
Operating temperature: ≤80℃
Maximum pressure difference that can withstand: 4bar (21℃)／2.4bar (80℃)
Sterilization method: 121℃/30min steam sterilization

Material structure
Filter material: Imported PTFE membrane
Inner core: PP
shell: PP
End cap: PP
Sealing technology: hot melt welding
Gasket/O-ring: Silicone rubber, EPDM, fluororubber

Filter element size
external diameter: (68mm)
length: 5〞、10 〞、20 〞、30〞、40〞

Ordering Information

Series

ELT

Micron Rating

005=0.05μm

010=0.10μm

022=0.22μm

045=0.45μm

100=1.00μm

300=3.00μm

500=5.00μm

End cap type

J1=222/Fin

J2=222/Flat

J3=226/Fin

J4=226/Flat

J5=DOE

Length

05=5"

10=10"

20=20"

30=30"

40=40"

O-ring

S=Silicone

E=EPDM

V=Viton

D=PTFE

core

A=PP core

B=PP core+Interface lined with stainless steel

C=PP core+Lined with stainless steel

DOWNLOAD
INQUIRY NOW
[email protected]
+86-0571-87022016

related products

Hangzhou Eternalwater Filtration Equipment Co., Ltd. specializes in the development of microporous membranes such as PES, PVDF, N66, PTFE, PP, etc., and designs and manufactures various folded membrane cartridges. Products are widely used in liquid filtration and gas filtration in the pharmaceutical, food and beverage, chemical, electronics and other industries, and provide filtration, separation and purification solutions for customers.

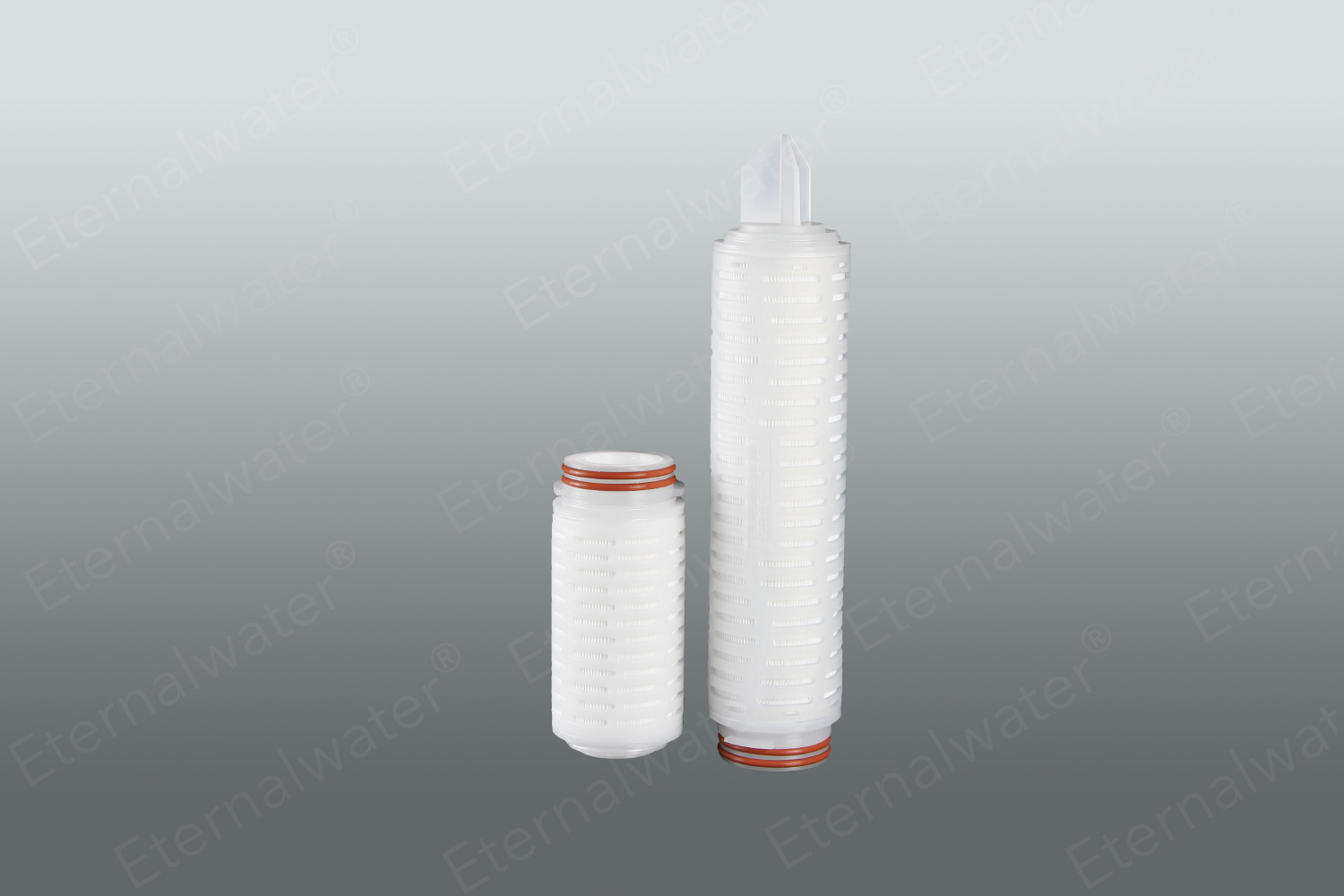

PTFE EFT Series
The hydrophobic PTFE filter element adopts natural hydrophobic PTFE membrane. The wide chemical compatibility of PTFE membrane makes the filter element suitable for sterilization and filtration of strong solvents, strong corrosive liquids, and strong oxidizing liquids.

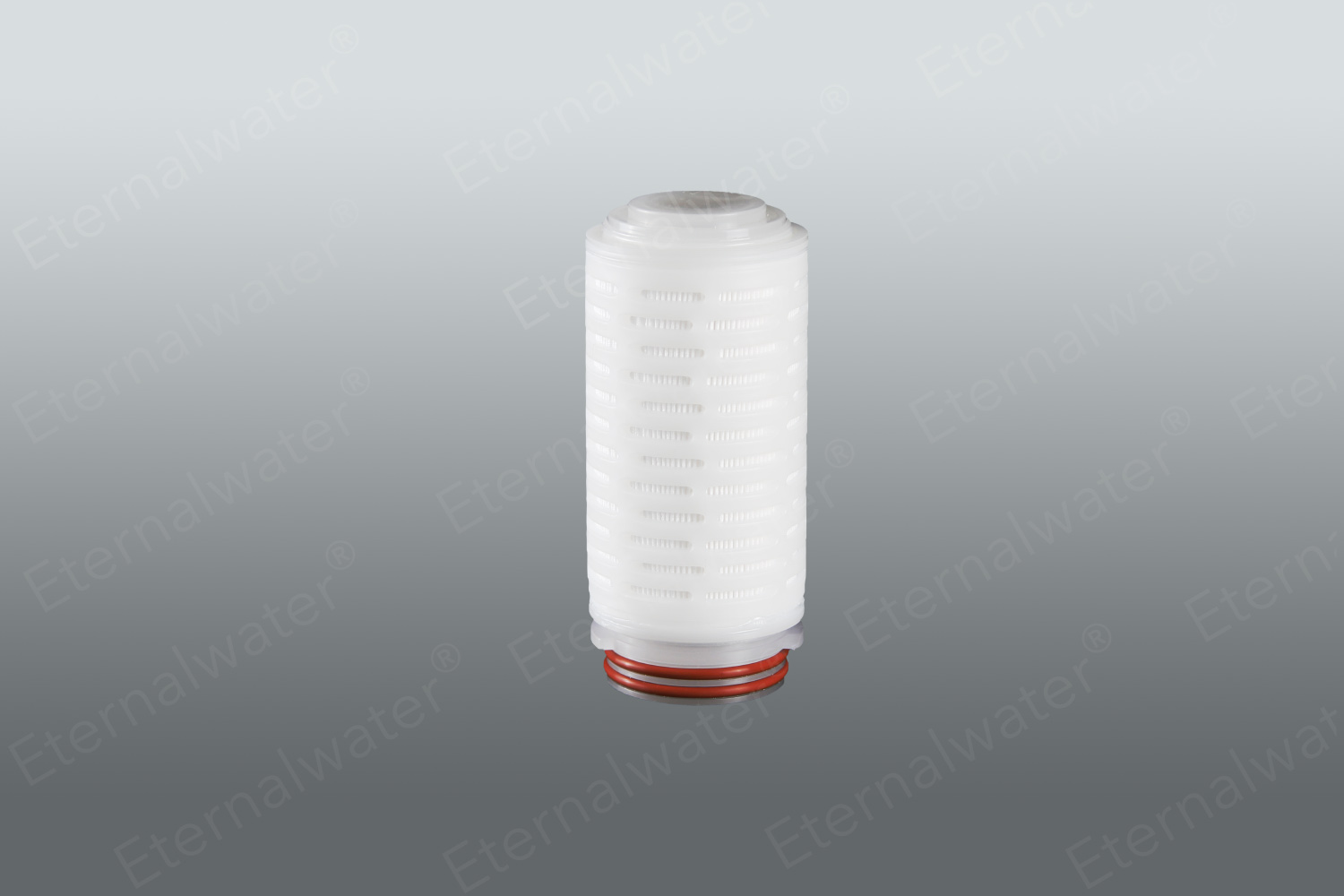

PTFE EKT Series
It is suitable for gas sterilization and adopts imported hydrophobic PTFE membrane, which has high flux and high sterilization efficiency. The filter element has good heat resistance and can operate steam sterilization for over 150 times.The integrity test before delivery ensures the high quality of products.

PTFE ELT Series
The hydrophilic PTFE filter element adopts a permanently modified hydrophilic PTFE membrane. The hydrophilic PTFE membrane has wide chemical compatibility without the need of pre-wetting.The integrity test before delivery ensures the high quality of products.

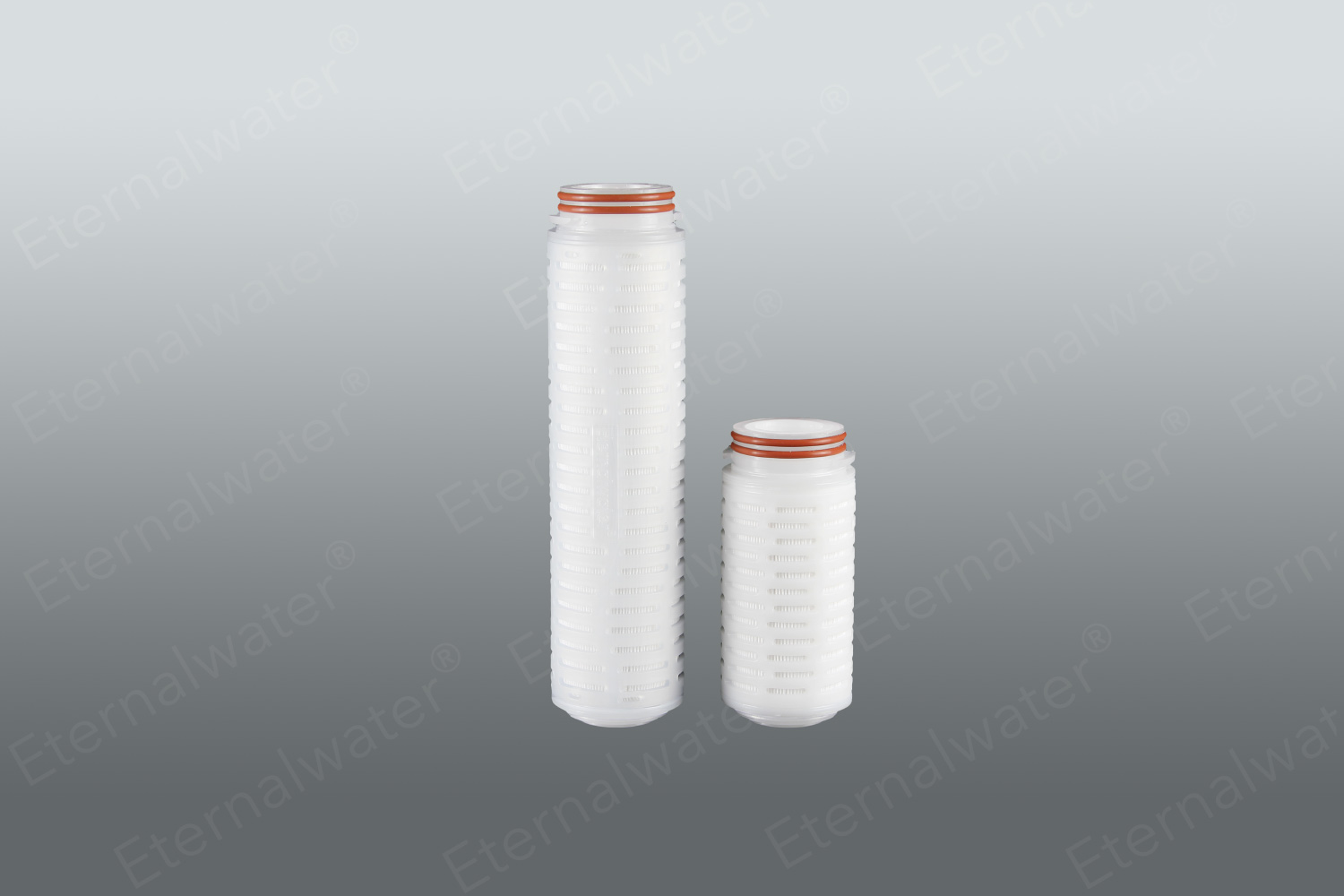

PTFE EQT Series
