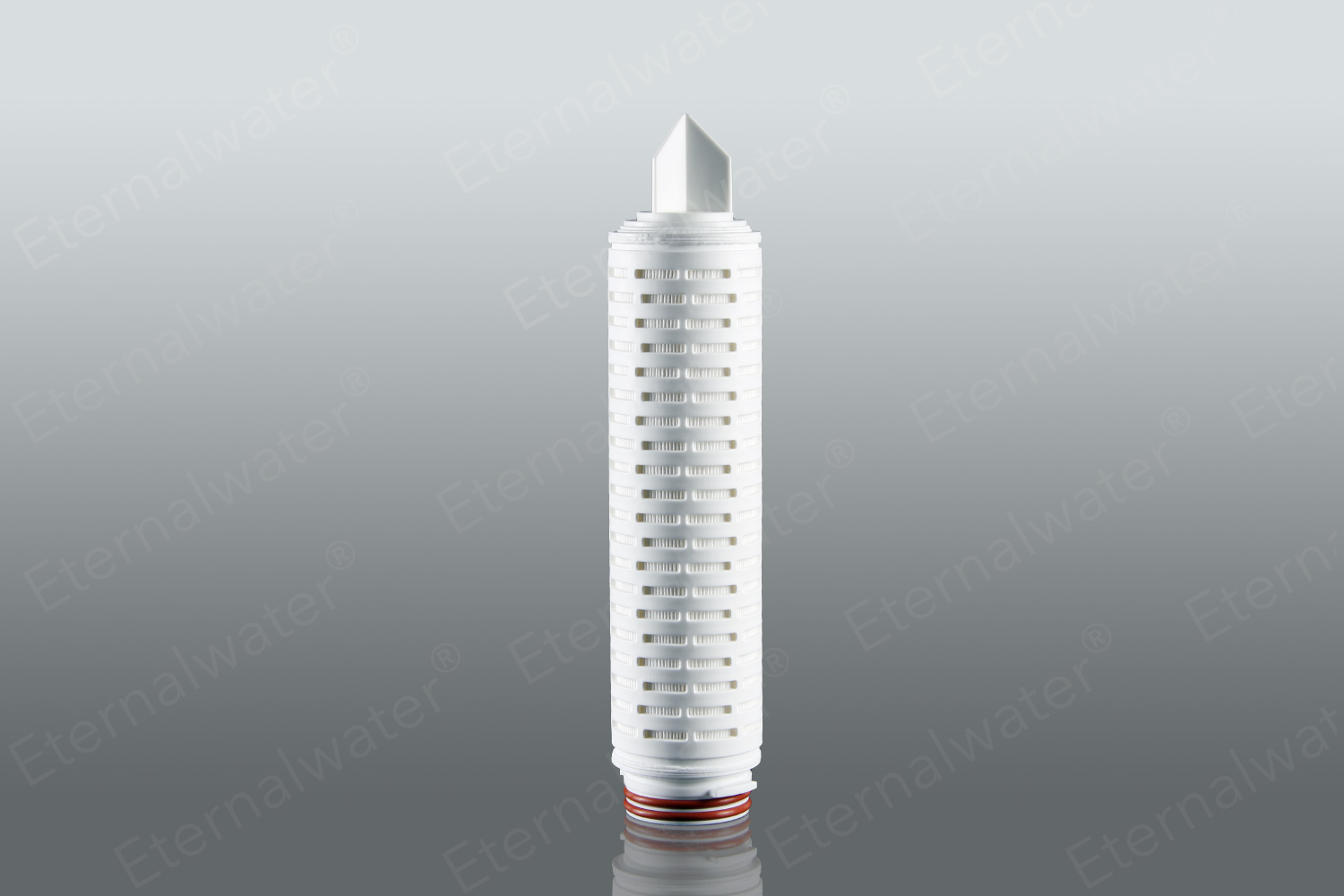

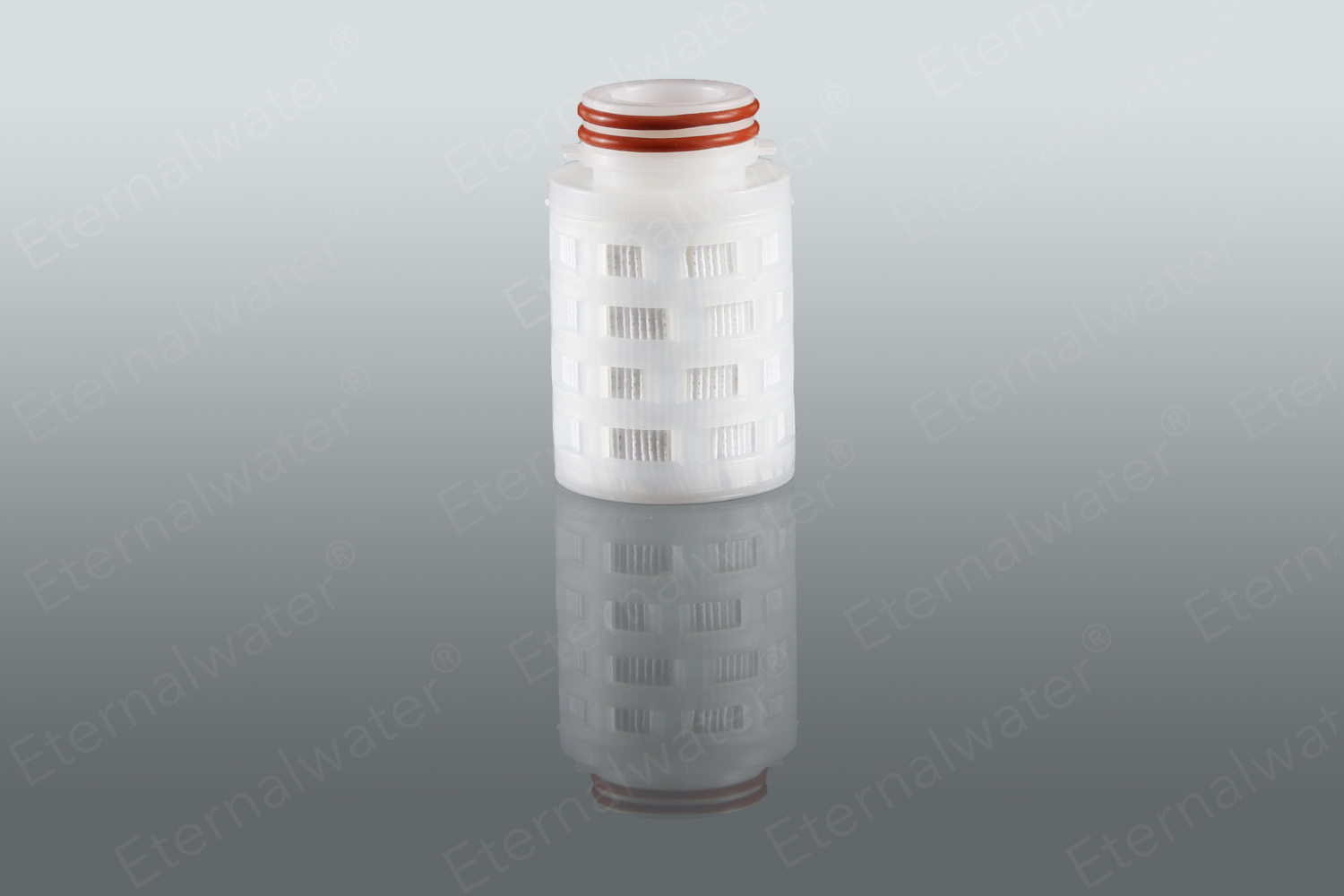

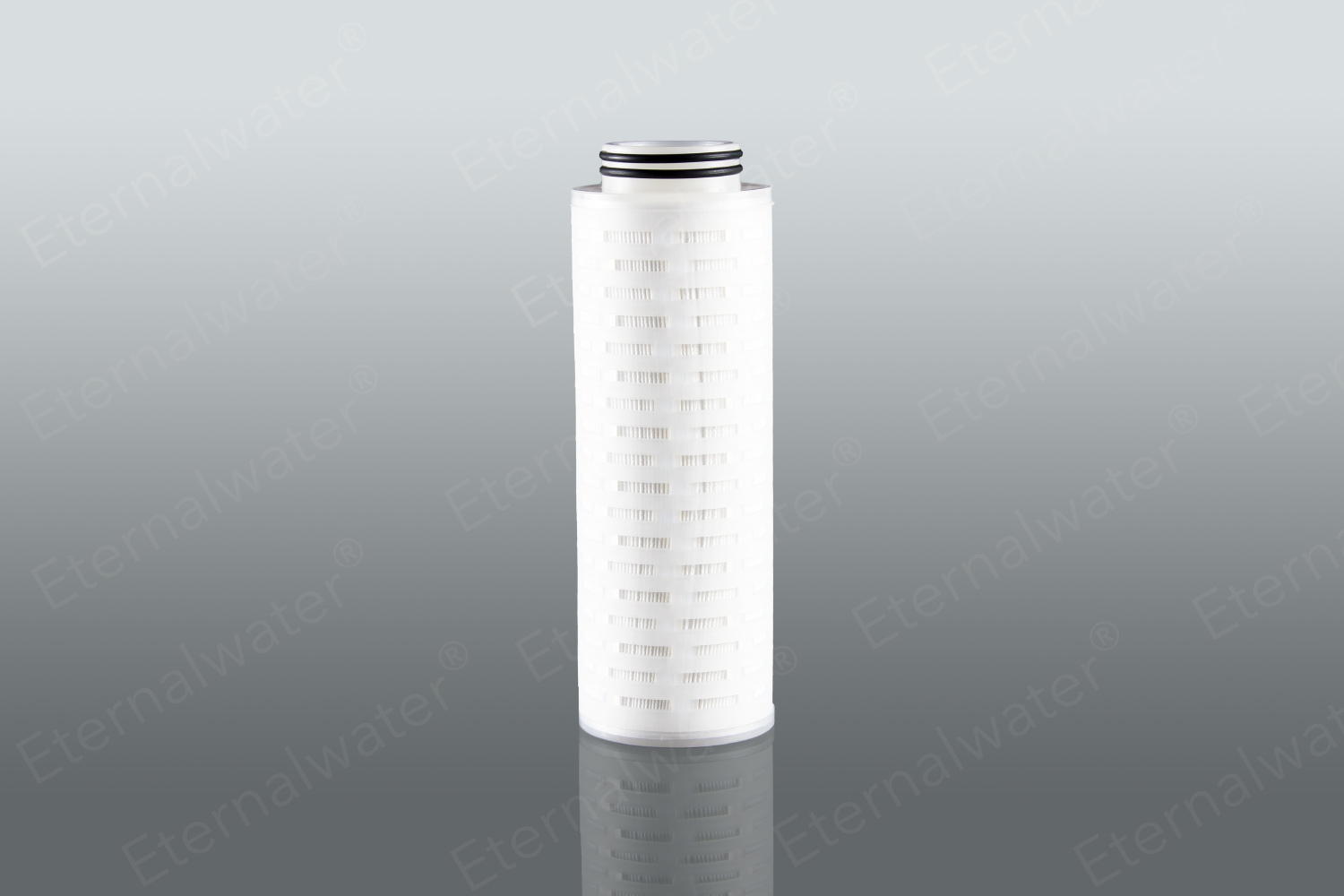

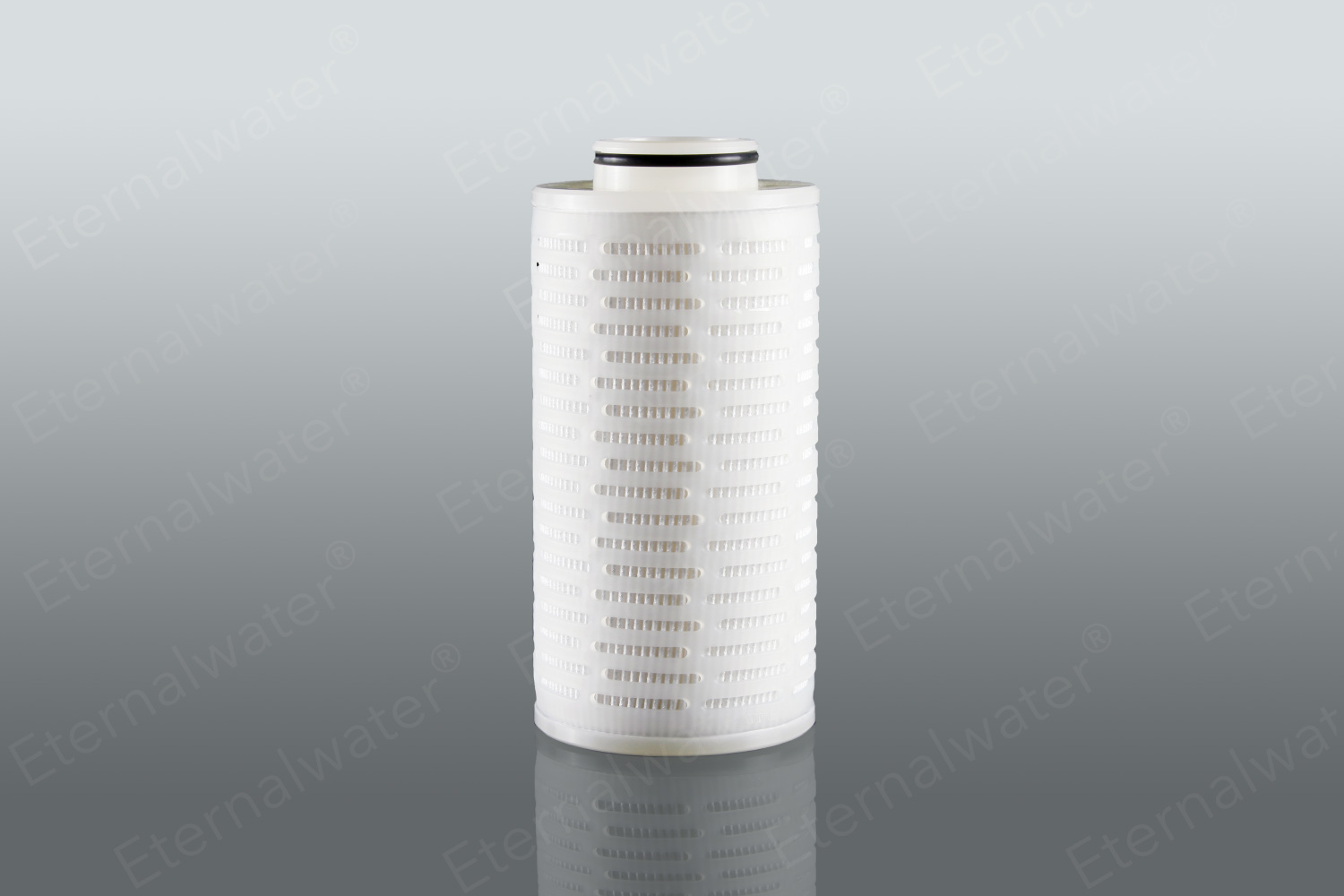

PTFE EQT Series

The strongest corrosion-resistant perfluorinated filter element adopts imported PTFE membrane and imported PTFE support layer. The perfluorinated framework is made through a special structural design. It has high flux and flow rate, and long life to meet the filtration requirements under most harsh environments. It has superior corrosion resistance and durability in a strongly corrosive acid and alkali environment.The integrity test before delivery ensures the high quality of products.

Product features
PTFE membrane, low dissolution, high-temperature resistance, oxidation resistance and high-pressure resistance PTFE support layer PVDF/PFA skeleton Multiple filter precisions are available High flow rate, long service life Broad chemical compatibility

Industry Application
Electronic industry: Filtration of various solvents, various strong acids, strong alkalis and other strong corrosive solutions Pharmaceutical industry: Strong corrosive, strong oxidizing liquid filtration

PRODUCT DESCRIPTION

Operating conditions
Operating temperature: ≤120℃
Maximum pressure difference that can withstand: 5bar (21℃)／2bar (100℃)
Sterilization method: 121℃/30min steam sterilization

Material structure
Filter material: Imported PTFE membrane
Supporting layer:PTFE
shell: PVDF/PFA
End cap: PVDF/PFA
Sealing technology: hot melt welding
Gasket/O-ring: Fluororubber, PTFE

Filter element size
external diameter: (68mm)
length: 5〞、10 〞、20 〞、30〞、40〞

Ordering Information

Series

EQT

Micron Rating

005=0.05μm

010=0.10μm

022=0.22μm

045=0.45μm

100=1.00μm

300=3.00μm

500=5.00μm

End cap type

J1=222/Fin

J2=222/Flat

J3=226/Fin

J4=226/Flat

J5=DOE

J6=215/Flat

Length

05=5"

10=10"

20=20"

30=30"

40=40"

O-ring

V=Viton

D=PTFE

core

D=PVDF core
