capsule filter working principle

2024-04-24 Eternalwater

What Is a Capsule Filter And How Does It Work?


The capsule filter cartridge, also known as a disposable filter cartridge, is strictly speaking a filtration unit that should be categorized as a filter. Due to its small size and filtration area, the capsule filter is very suitable for the filtration of liquids and gases with small flow rates.

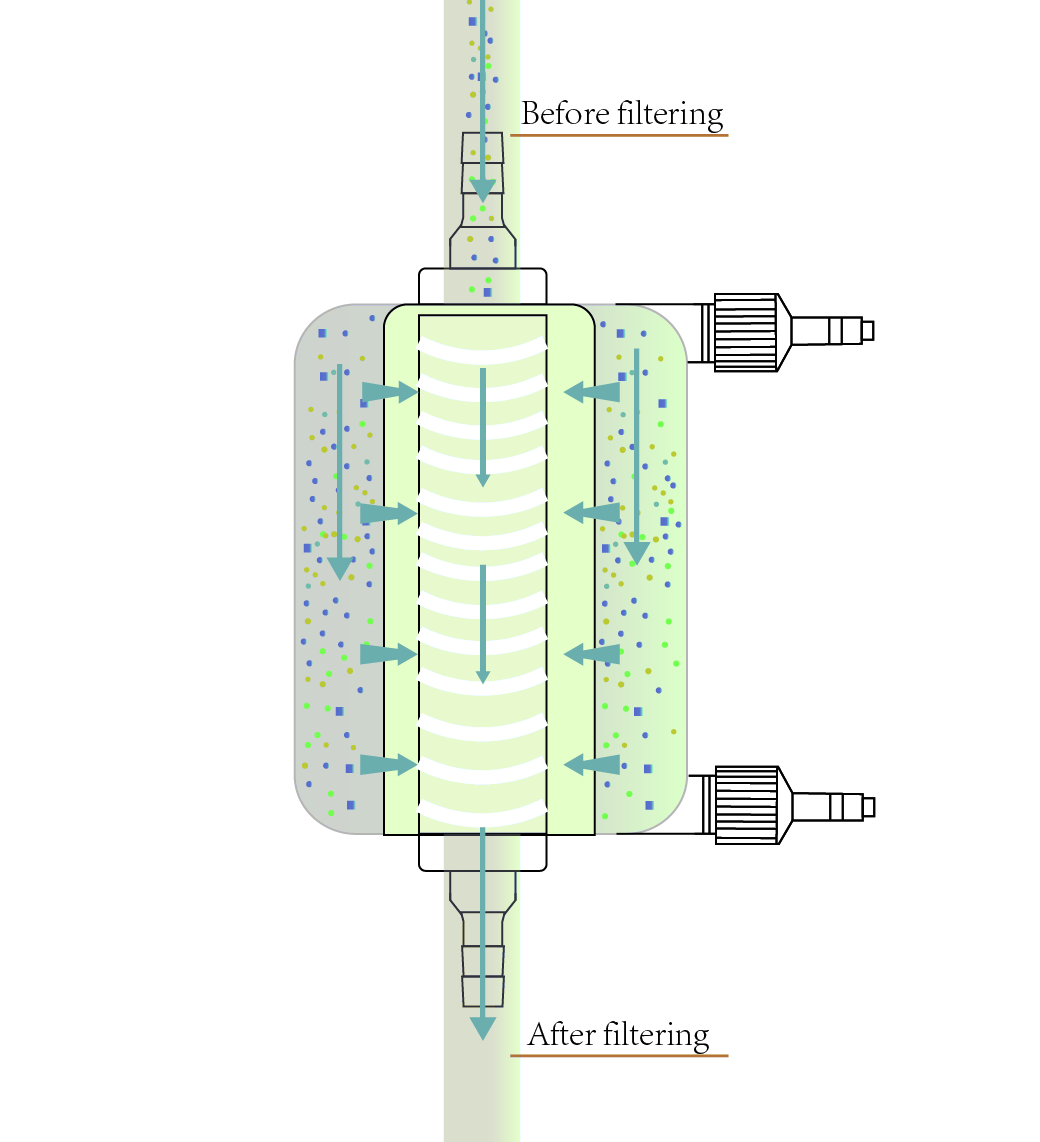

How Does The Capsule Filter Work?


When fluids pass through the filter, they pass through the annular flow channel and enter the hose, which is connected to the inlet and outlet respectively. During the filtration process, the exhaust port at the top is opened and the fluid direction passes into the filtrate. When the filtrate fills the filter, all the air is squeezed out and the exhaust port of the bladder filter is screwed on. After the filtration is completed, open the exhaust port at the bottom of the filter to discharge the remaining filtrate. In this way, the capsule filter can effectively purify the fluid and achieve the purpose of filtration.

high flow filter element
In addition, capsule filters utilize filtration media (such as fiber capsules or microporous membranes) to filter solid particles and impurities from the fluid. These media are capable of retaining impurities, while the pure fluid is discharged through the outlet, realizing liquid-solid separation.

Features Of Capsule Filter


High filtration efficiency: the use of high-quality filtration media and pore size design can effectively remove impurities and microorganisms in the solution and ensure the purity of the beverage.

Bio-safety and non-toxicity: During the production process, it is required to be carried out in a clean environment and ensure the bio-safety and non-toxicity of the product to protect the health of consumers.

Wide applicability: it can meet the requirements of different beverage production processes and is suitable for solvent filtration under various PH values and temperatures, such as beverages and fruit juices.

A variety of specifications available: the capsule filter should provide a variety of length and specification options to meet the needs of different processing capacity and flow rate to achieve the best filtration effect.


capsule filter suppliers
