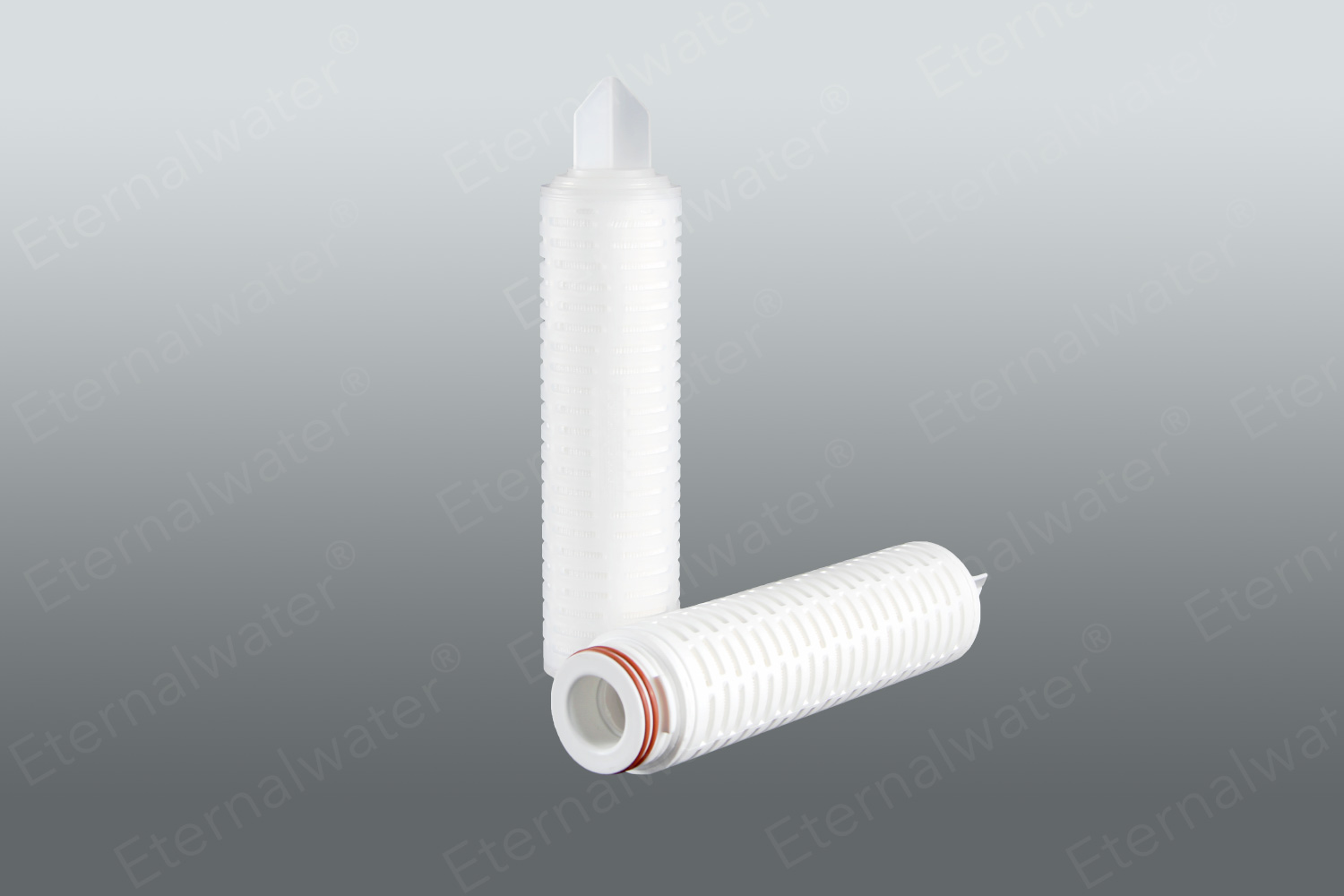

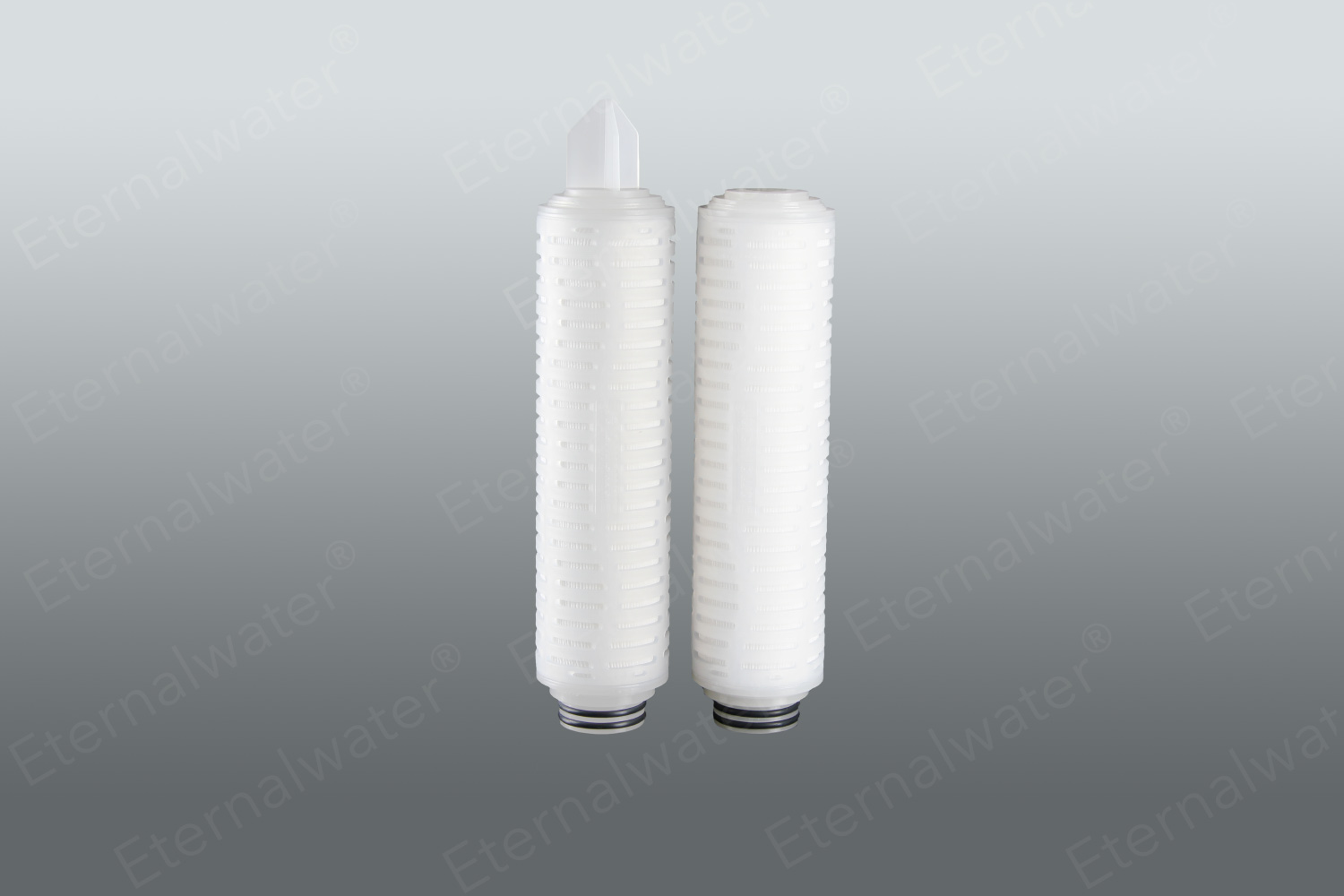

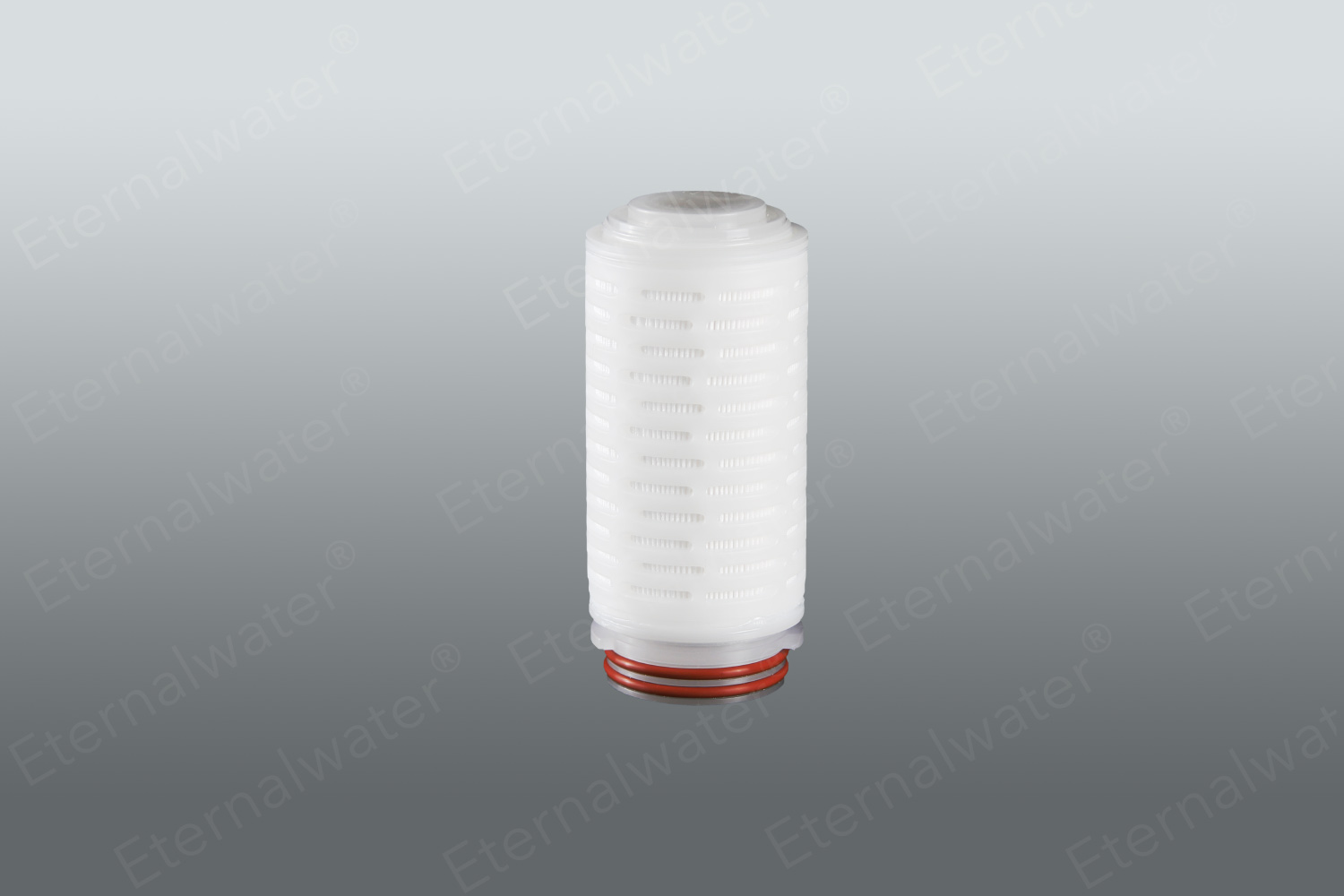

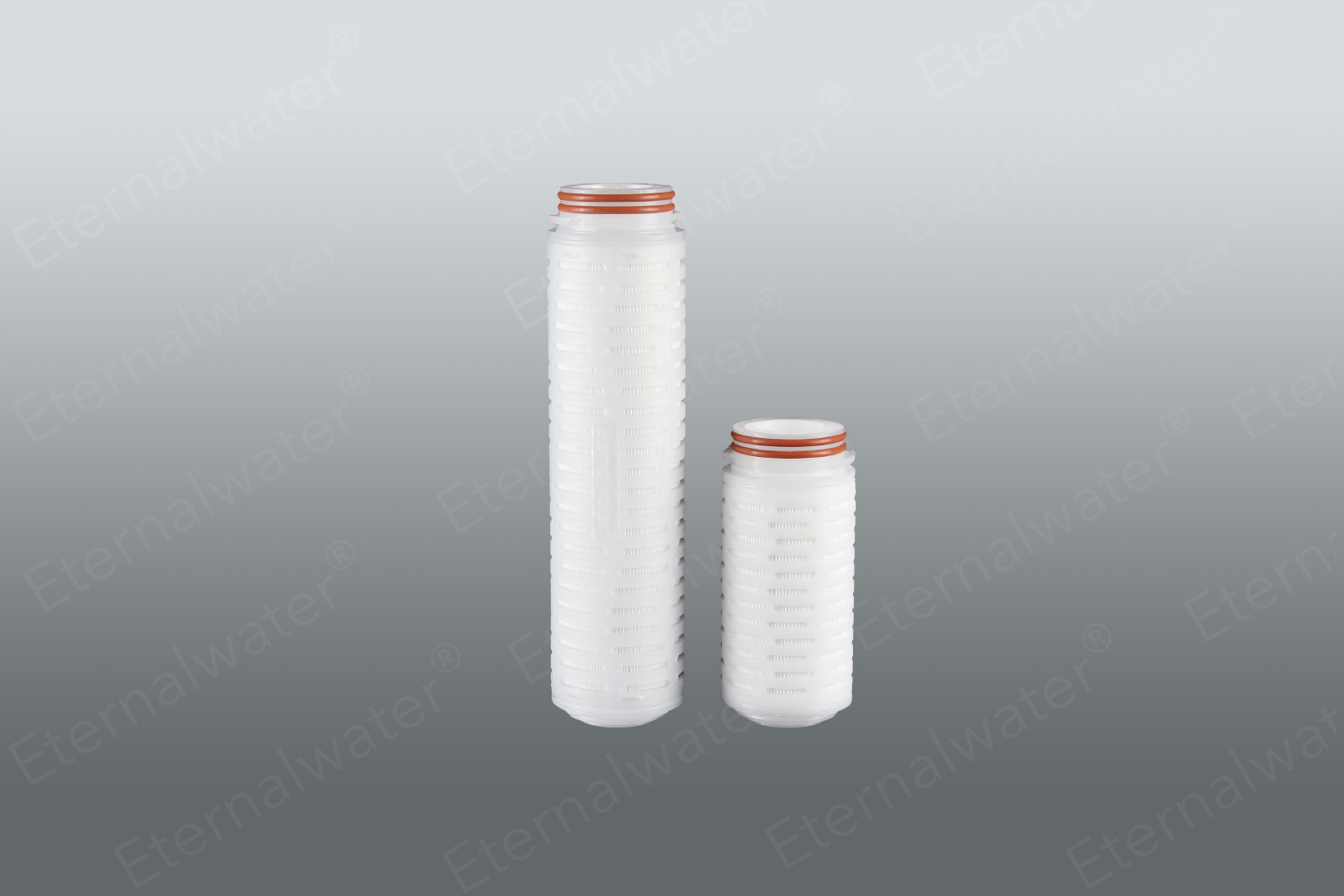

GF -EBGG Series

The high-efficiency pre-filtering glass fiber pleated filter element is made of ultra-fine glass fiber material. The retention rate is as high as 96%, which effectively protects the terminal sterilization filter element, and is suitable for gas pretreatment and precision filtration

Product features
No fiber shedding, very low dissolution Good adsorption and high open porosity High flow rate, low drop of pressure Compressed gas particle removal and oil removal filtration

Industry Application
Electronics industry: compressed gas particle removal, oil removal and filtration. Pharmaceutical industry: compressed gas particle removal, oil removal and filtration. Food industry: fermentation gas pre filtration..

PRODUCT DESCRIPTION

Operating conditions
Operating temperature: ≤80℃
Maximum pressure difference that can withstand: 4bar (21℃)／2.4bar (80℃)
Sterilization method: 121℃/30min steam sterilization

Material structure
Filter material: mixed fiber membrane
Inner core: PP
Cover: PP
End cap: PP
Sealing technology :Hot-Melt Welding
Gasket/O-ring: EPDM, silica gel, fluororubber, PTFE coated, PTEF

Filter element size
external diameter: 68mm
length: 5〞、10 〞、20 〞、30〞、40〞

Ordering Information

Series

EBGG

Micron Rating

022=0.22μm

045=0.45μm

100=1.00μm

500=5.00μm

1000=10.00μm

End cap type

J1=222/Fin

J2=222/Flat

J3=226/Fin

J4=226/Flat

J5=DOE

Length

05=5"

10=10"

20=20"

30=30"

40=40"

O-ring

S=Silicone

E=EPDM

V=Viton

D=PTFE

core

A=PP core

B=PP core+Interface lined with stainless steel

C=PP core+Lined with stainless steel
