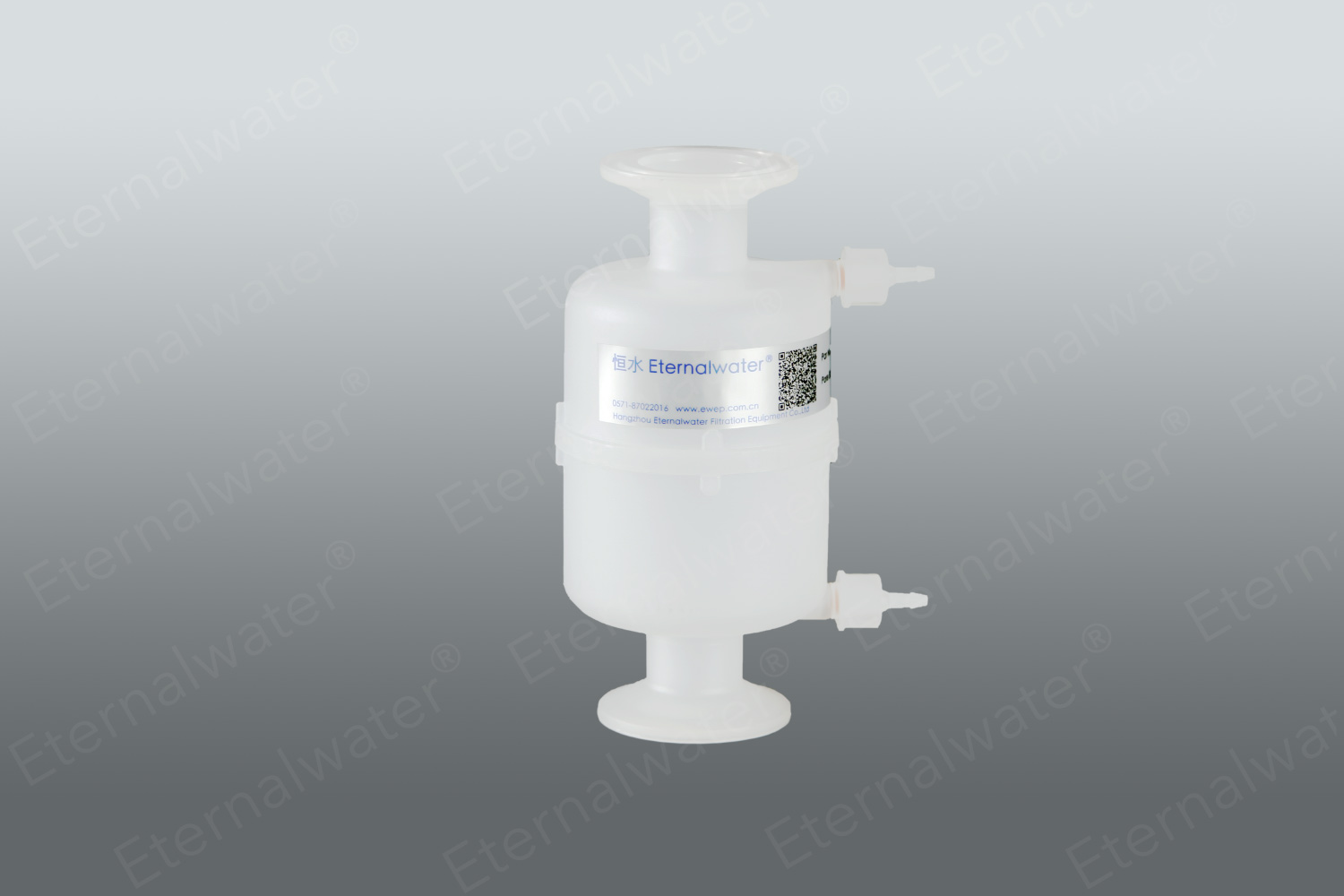

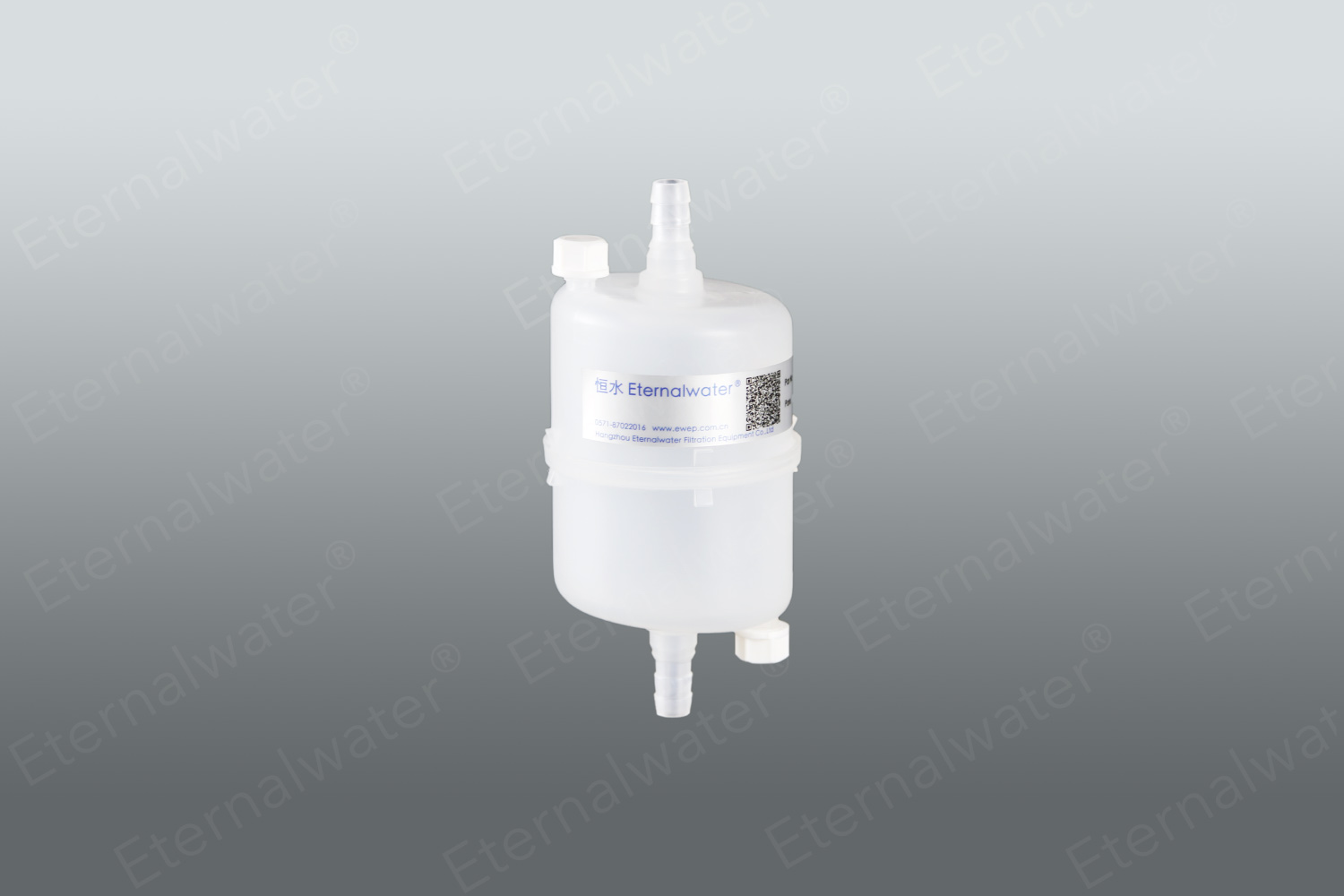

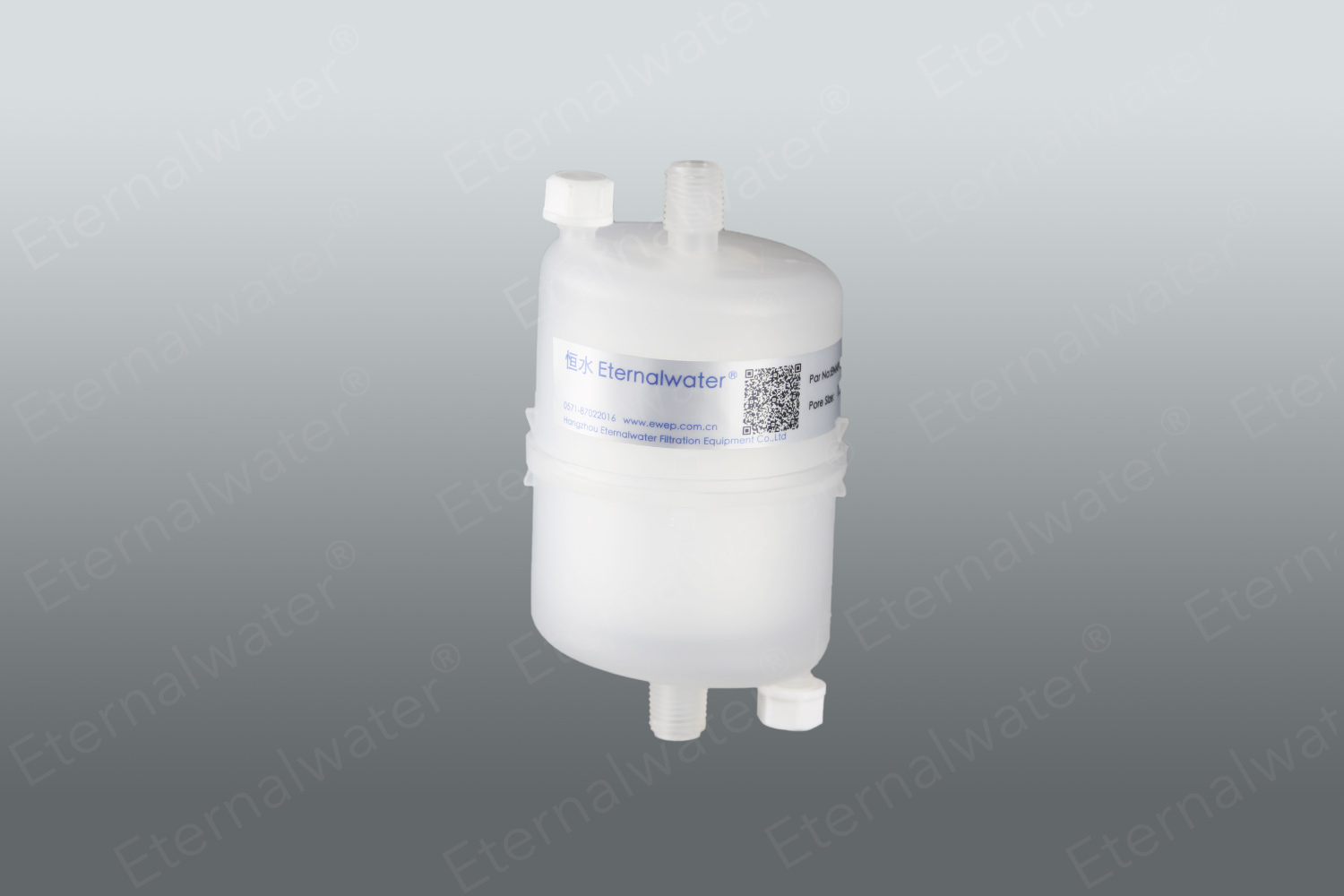

HT capsule filter
HT capsule filter
HT capsule filter
HT capsule filter

HT capsule filter

The capsule filter of HT series has a variety of volumes for choices. Its cannulated connection for inlet and outlet has the advantages of quick installation and convenient use. The internal filter element can be configured with appropriate membrane material according to the characteristics of the filter material, which has a very wide range of applicability, and it is especially suitable for the filtration of small doses of material liquid.
  • Product features
  • Match various filter media and precision Low precipitation and high-pressure resistance Reasonable structure, convenient connection and the loss reduction of residual material
  • Industry Application
  • Pharmaceuticals, microelectronics, chemicals, inks, food and beverages
  • DOWNLOAD
  • INQUIRY NOW
PRODUCT DESCRIPTION
  • Material structure
  • Filter media: PP、PES、PTFE、Nylon
  • Shell material: PP
  • Size of inner core: 2.5”、5”
  • Filter area: 0.11㎡/0.22㎡
  • Filtration accuracy: 0.01μm-50μm
  • Interface form: ¼” HT
  • Operating conditions
  • Operating temperature : ≤60℃
  • Maximum pressure difference that can withstand: 2bar (21℃)
  • It is recommended to replace the pressure drop : 1.5bar (21℃)
Ordering Information
  • Series
  • HT
  • Material
  • P=PP
  • S=PES
  • T=Hydrophobic PTFE
  • TL=Hydrophilic PTFE
  • V=Hydrophobic PVDF
  • VL=Hydrophilic PVDF
  • N6=N6
  • N66=N66
  • M=MCE
  • Micron Rating
  • 005=0.05μm
  • 010=0.10μm
  • 022=0.22μm
  • 045=0.45μm
  • 100=1.00μm
  • 500=5.00μm
  • Length
  • 25=2.5"
  • 50=5"
  • Interface
  • A=1/4“NPT
  • B=3/8"NPT
  • C=1/2"NPT
  • D=1/4"
  • E=3/8"
  • F=1/2"
  • G=0.5"
  • H=1.5"
