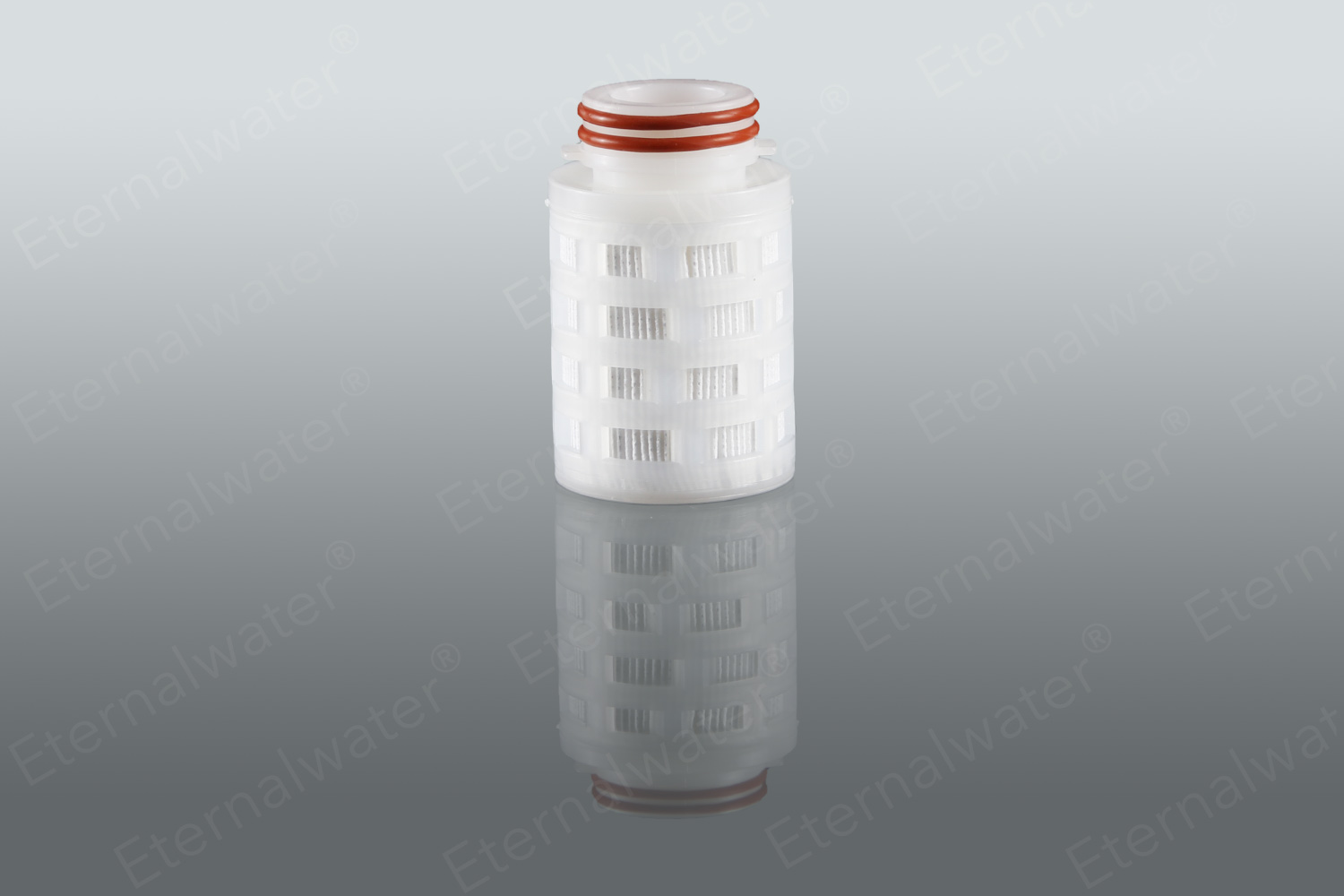

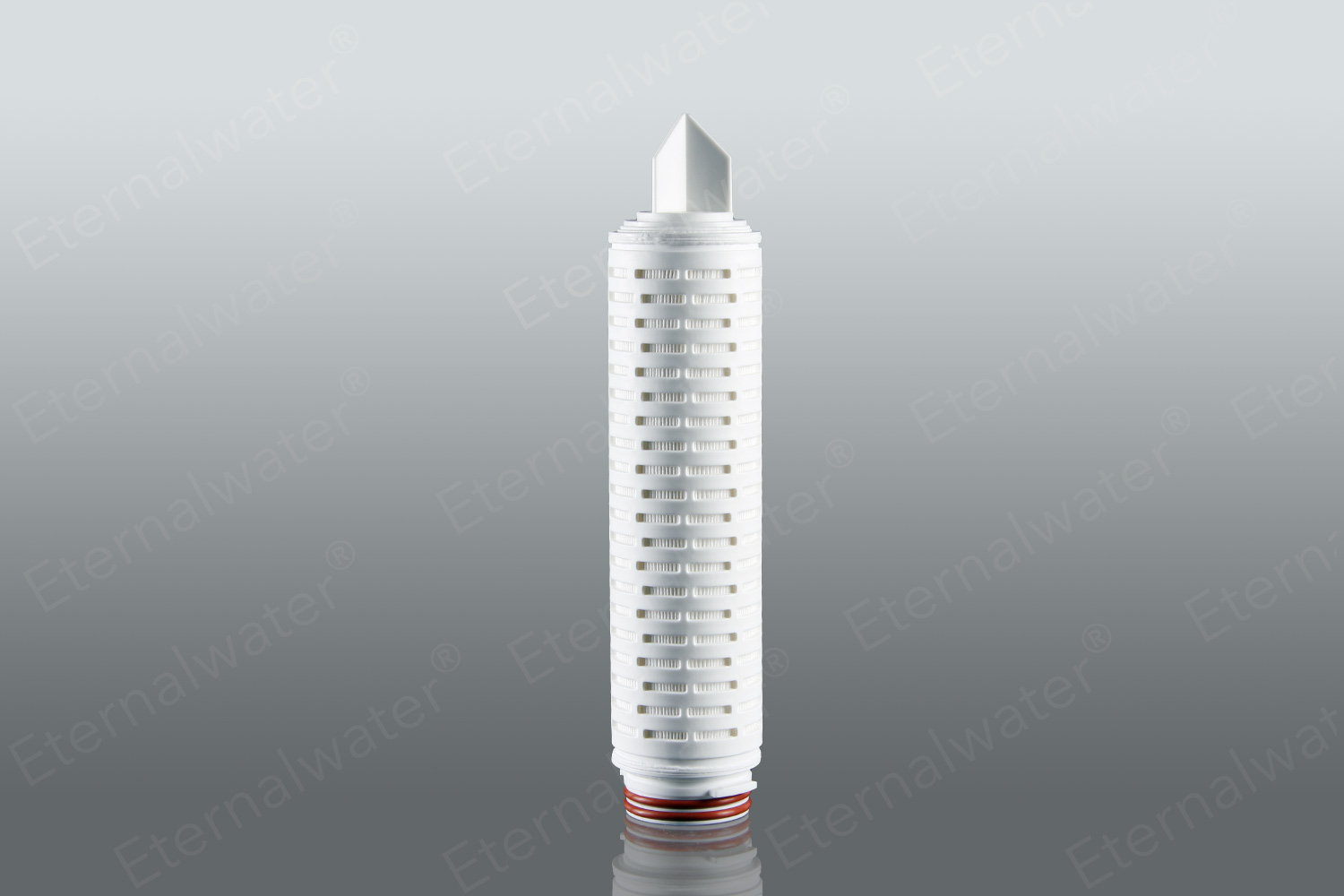

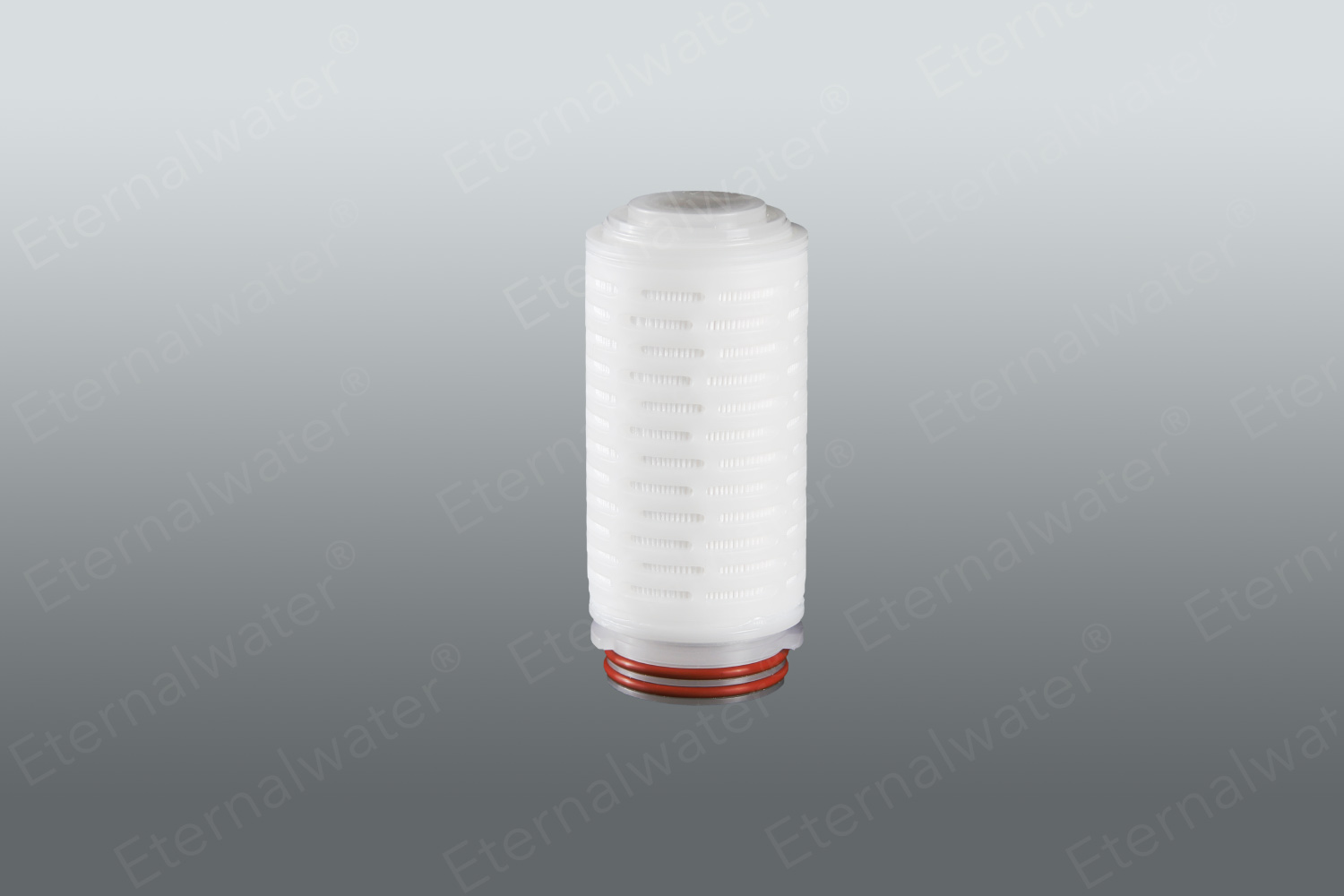

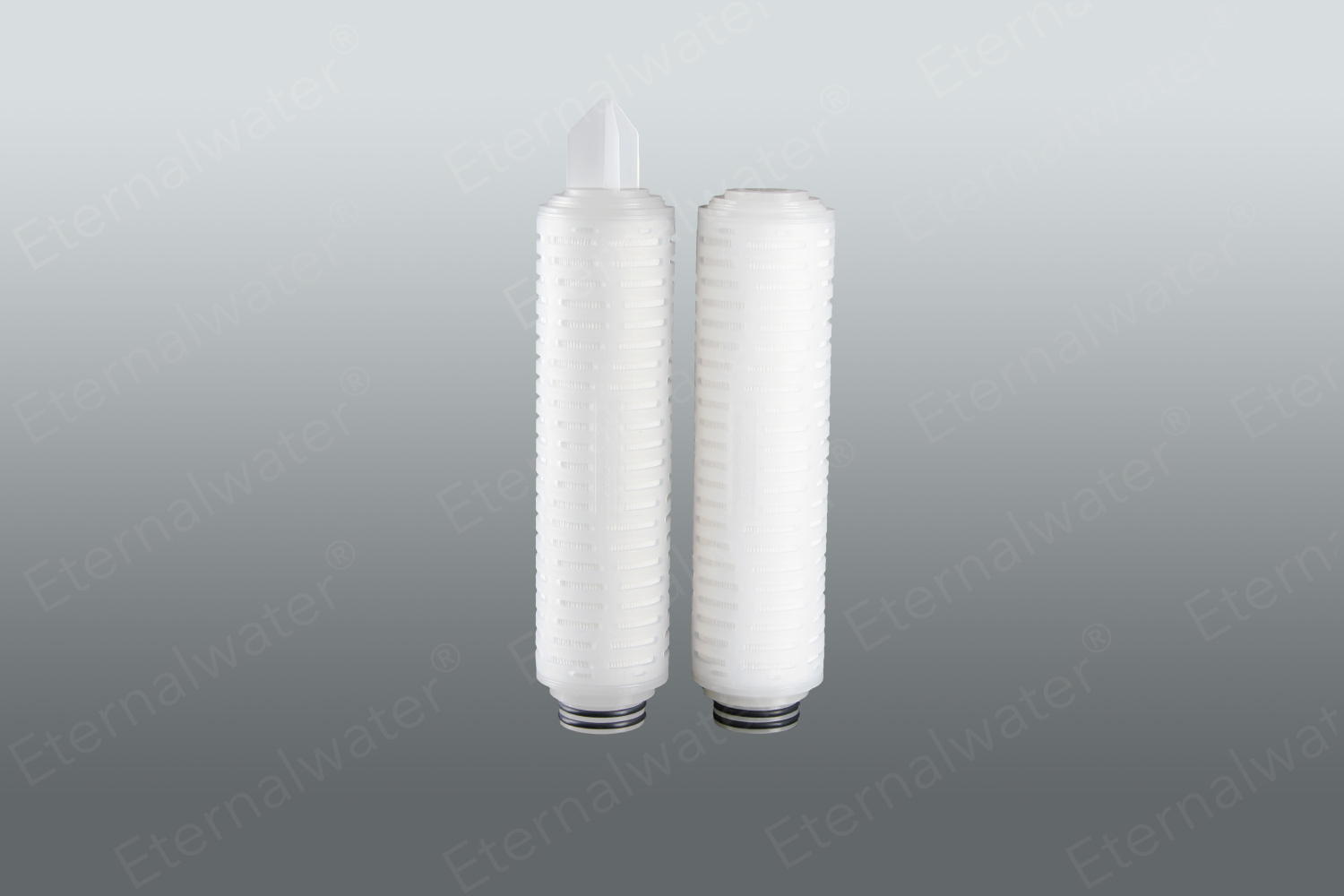

MCE-EPM Series

The pleated filter element with mixed fiber membrane adopts low-protein absorbed hydrophilic MCE membrane, which has high throughput, high rejection performance and low protein adsorption performance.

Product features
Charged, high throughput, strong sterilization Absolute pore size to ensure effective filtration Each filter element passes the integrity test.

Industry Application
Electronics industry: Ultrapure water preparation terminal filtration, semiconductor wet equipment terminal filtration, water-based reagent filtration Pharmaceutical industry:Water for injection, large volume parenteral, small volume parenteral, freeze-dry powder injector, eye drops, biological products, blood products, antibiotics and other liquid sterilization filtration Food industry:Terminal filtration of mineral water and pure water

PRODUCT DESCRIPTION

Operating conditions
Operating temperature: ≤80℃
Maximum pressure difference that can withstand: 4bar (21℃)／2.4bar (80℃)
Sterilization method: 121℃/30min steam sterilization

Material structure
Filter material: GF
Inner core: PP
shell: PP
End cap: PP
Sealing technology: hot melt welding
Gasket/O-ring: EPDM, silica gel, fluororubber, PTFE coated, PTEF

Filter element size
external diameter: (68mm)
length: 5〞、10 〞、20 〞、30〞、40〞

Ordering Information

Series

EPM

Micron Rating

010=0.10μm

022=0.22μm

045=0.45μm

100=1.00μm

500=5.00μm

1000=10.00μm

End cap type

J1=222/Fin

J2=222/Flat

J3=226/Fin

J4=226/Flat

J5=DOE

Length

05=5"

10=10"

20=20"

30=30"

40=40"

O-ring

S=Silicone

E=EPDM

V=Viton

D=PTFE

core

A=PP core

B=PP core+Interface lined with stainless steel

C=PP core+Lined with stainless steel
