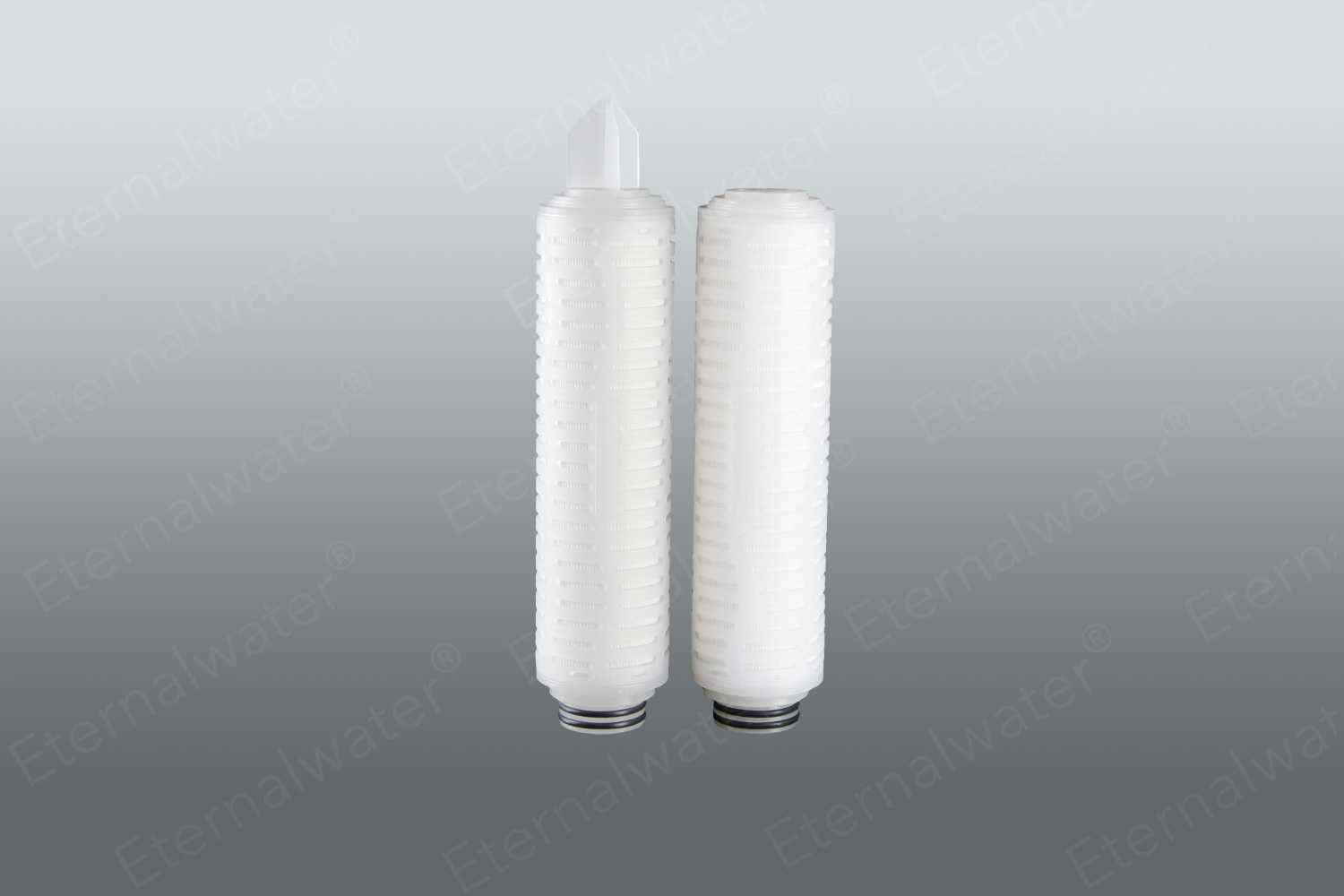

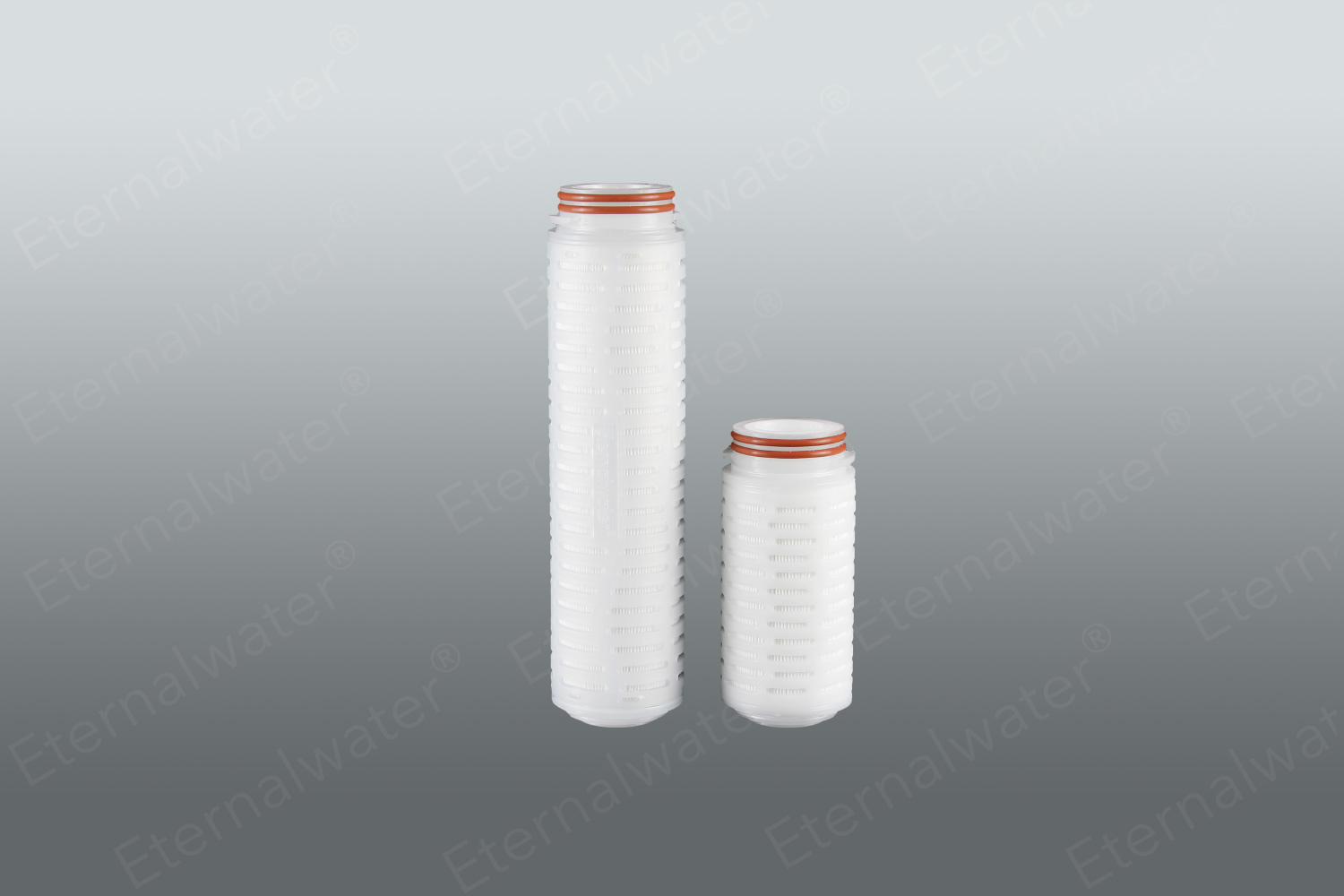

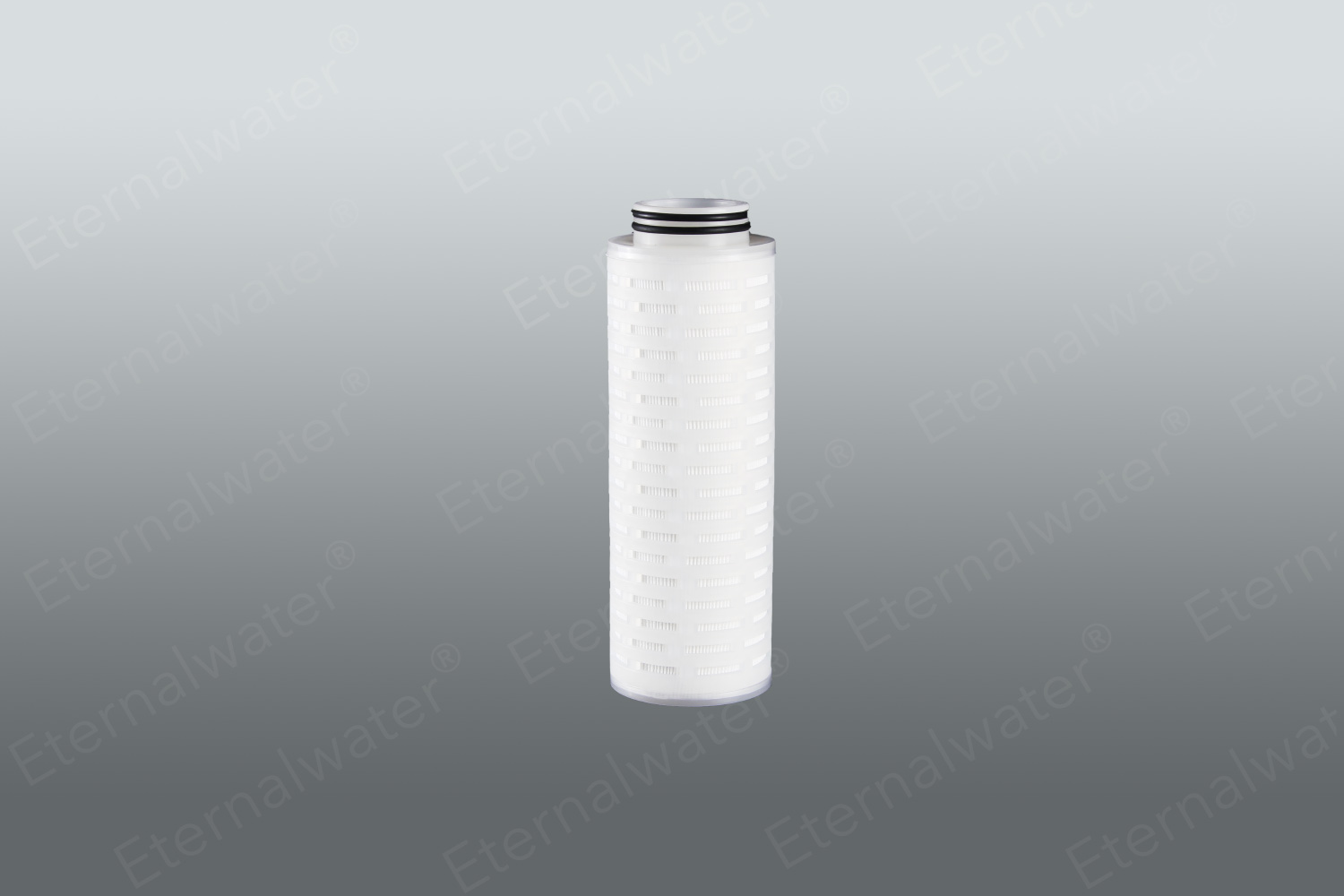

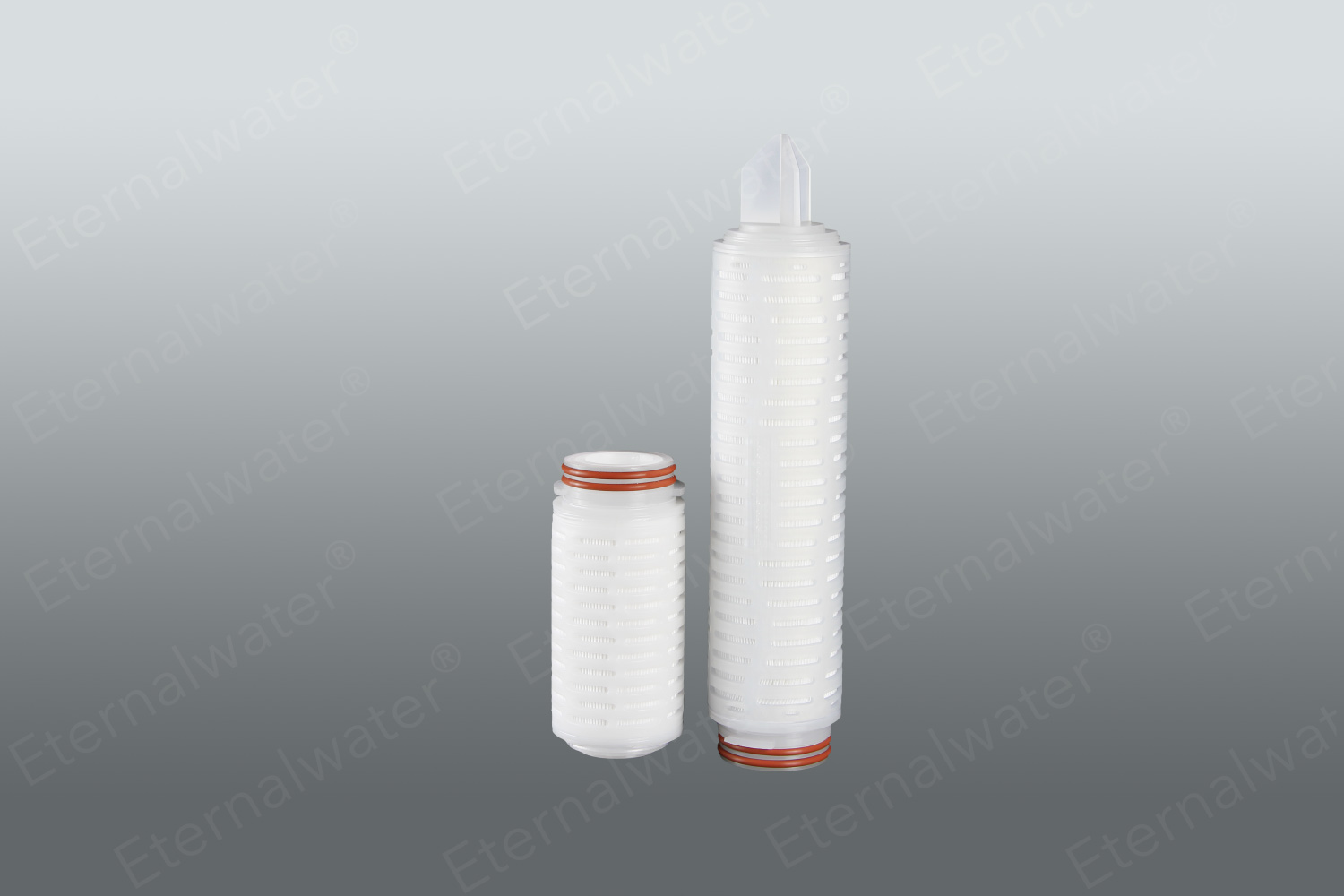

The relative precision polypropylene filter element adopts high efficiency PP membrane, and the characteristics of high flow rate and high contaminant capacity make it the most economical pre filtration filter element. Wide range of uses, factory integrity test to ensure high quality products.
  • Product features
  • No fiber shedding Economical and efficient pre-filtration products Each filter element passes the integrity test
  • Industry Application
  • Electronic industry: chemical reagents, cutting fluid, ink, electroplating solution and other precision filtration, ultra pure water preparation and pre filtration. Pharmaceutical industry: liquid pre filtration of biopharmaceutical and pharmaceutical solvent, active carbon filtration of pharmaceutical liquid, chemical intermediate filtration. Food industry: Baijiu, wine, yellow wine, fruit wine, beer, mineral water, purified water and other pre filtration and precision filtration.
PRODUCT DESCRIPTION
  • Operating conditions
  • Operating temperature: ≤80℃
  • Maximum pressure difference that can withstand: 4bar (21℃)/2.4bar (80℃)
  • Sterilization method: 121℃/30min steam sterilization
  • Material structure
  • Filter material: PP
  • Inner core: PP
  • shell: PP
  • End cap: PP
  • Sealing technology: hot melt welding
  • Gasket/O-ring: EPDM, silica gel, fluororubber, PTFE coated, PTEF
  • Filter element size
  • external diameter: (68mm)
  • length: 5〞、10 〞、20 〞、30〞、40〞
Ordering Information
  • Series
  • EHP
  • Micron Rating
  • 010=0.10μm
  • 022=0.22μm
  • 045=0.45μm
  • 100=1.00μm
  • 500=5.00μm
  • 1000=10.00μm
  • 2000=20.00μm
  • 5000=50.00μm
  • 10000=100.00μm
  • End cap type
  • J1=222/Fin
  • J2=222/Flat
  • J3=226/Fin
  • J4=226/Flat
  • J5=DOE
  • Length
  • 05=5"
  • 10=10"
  • 20=20"
  • 30=30"
  • 40=40"
  • O-ring
  • S=Silicone
  • E=EPDM
  • V=Viton
  • D=PTFE
  • core
  • A=PP core
  • B=PP core+Interface lined with stainless steel
  • C=PP core+Lined with stainless steel
