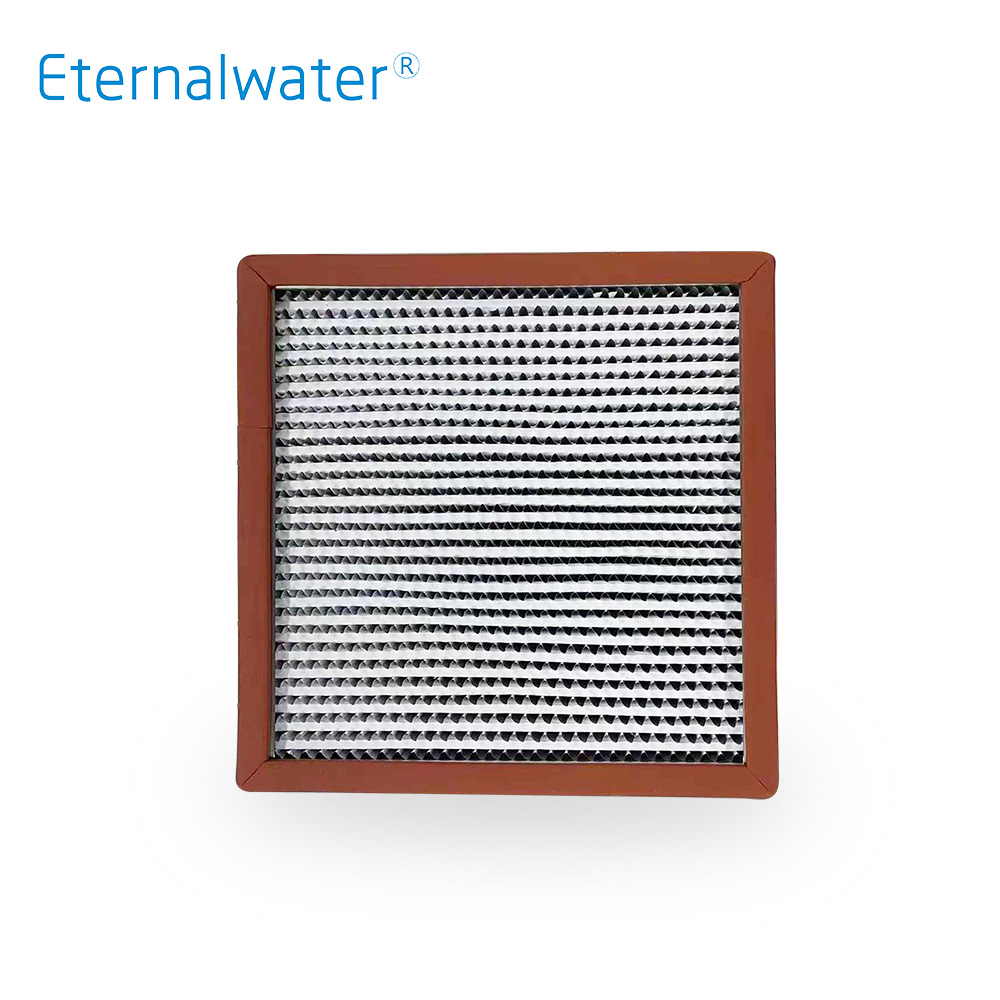

High-Temperature HEPA Filter with Separator
High-Temperature HEPA Filter with Separator

High-Temperature HEPA Filter with Separator

High-Temperature HEPA Filter with Separator
  • Product features
  • 1.A substantial filtration area 2.Long operating life 3.The maximum ambient temperature allowed for operation is 250°C
  • Industry Application
  • It is suitable for providing clean air protection in high-temperature processes, such as spraying ovens, sterilization tunnels
  • DOWNLOAD
  • INQUIRY NOW
PRODUCT DESCRIPTION

Parameters：

Type
 High-Temperature Filter
Filter Media
 Glass Fiber Filter paper
Frame Material
 Galvanized Steel / Stainless Steel
Separator
 Aluminum Foil
Sealant
 High-Temperature Sealant
Filtration Efficiency Grade
H11(EN779),≥95%@MPPS   H12(EN779),≥99.5%@MPPS
H13/EN779),≥99.5%@MPPS   H14(EN779),≥99.95%@MPPS
Recommended Final Resistance
 ≤500Pa
Continuous and Stable Operating Temperature
 Up to 250°C


Thickness / Efficiency /Resistance- Relationship Table:


Thickness
 Plait
 Pressure [email protected]/sPa
(inches)
 (mm)
 (mm)
 H11 H12
 H13
 H14


3 165
185
200 215
6
 150 5
180
205 220 235


8
200
225 250 260


3 150 165 180 195
9 220 5 160 185 200 210


8 180 200 225 235


Dimensional Size (L x W) / Airflow Capacity-Relationship Table:

Dimension（H×W）
Air flow m³/[email protected]/s
(inches)
(mm)

24*24
610*305
290
24*12
610*610
580
24*12
595*287
260
24*24
595*595
550

·Resistance: +/-15%. Customized non-standard sizes are available
