HP1-226 Series

HP1-226 Series

HP1-226 Series

HP1-226 Series


HP1-226 Series

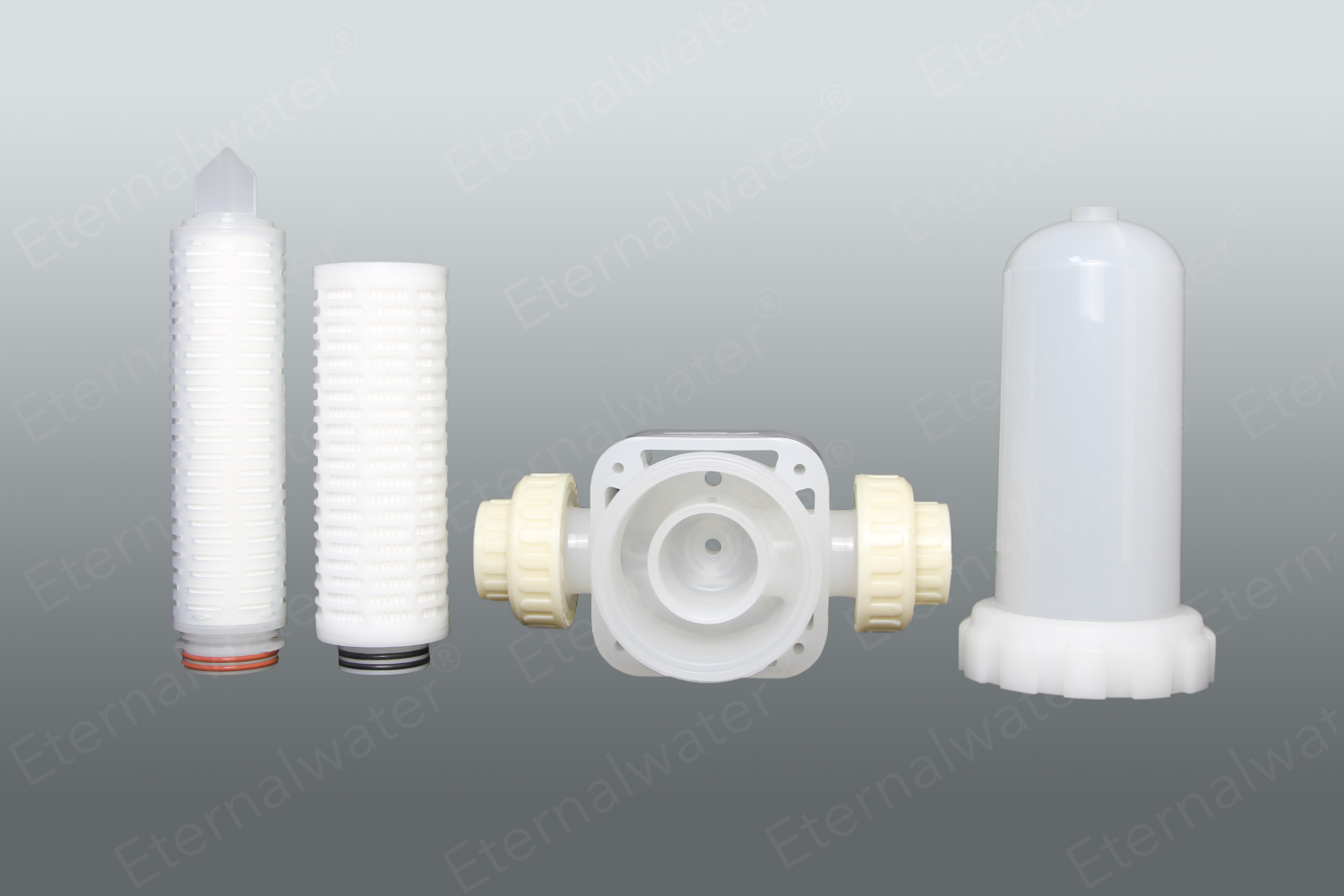

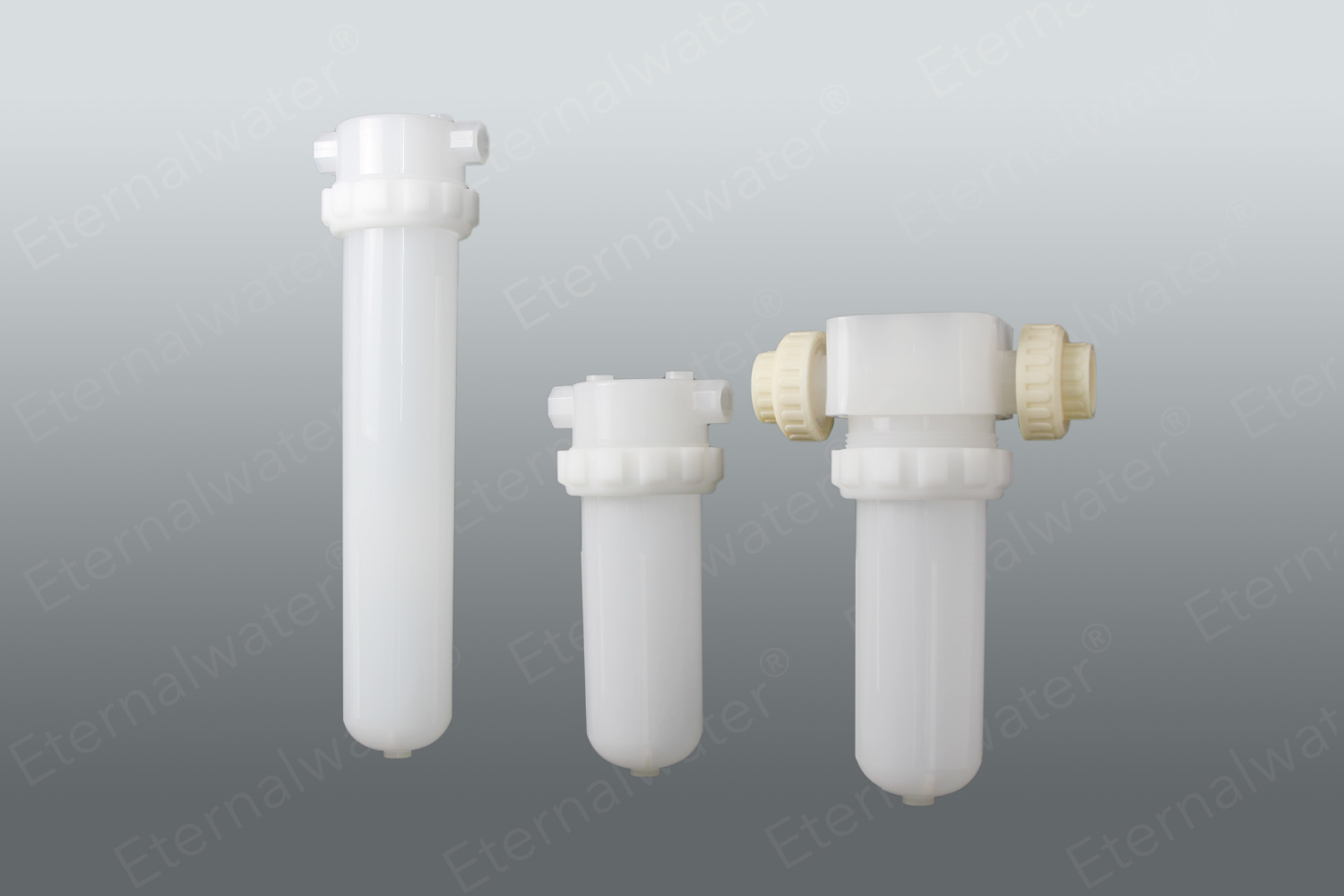

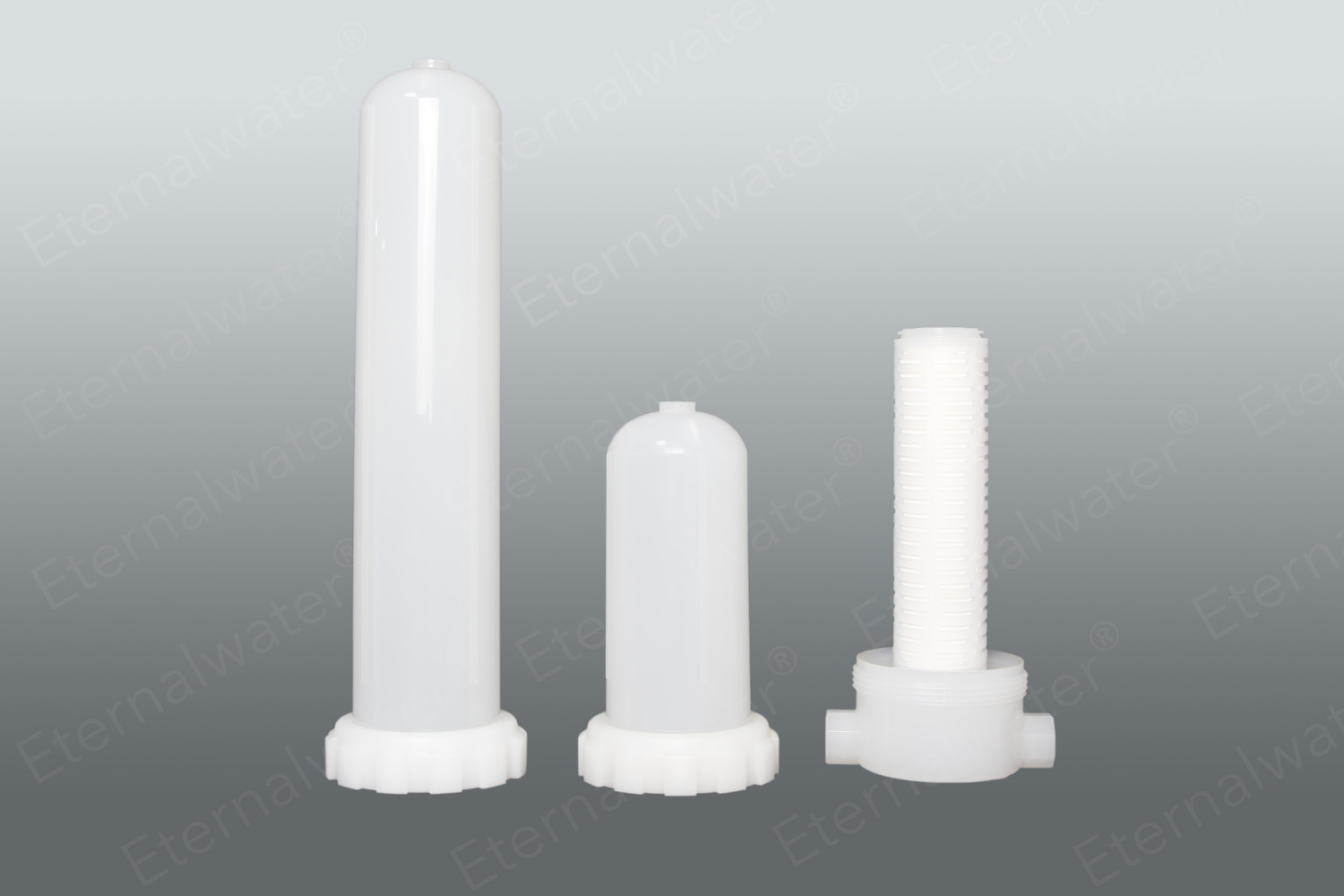

HP1 series filters are made of high-purity polypropylene (PP) material by one time injection molding. Optional lengths include 10" and 20", which are suitable for 222 interface filter element installation. With the characteristics of low precipitation, wide chemical compatibility, compact design and easy installation, they are suitable for filtration of a variety of liquids.
  • Product features
  • Super low ion precipitation of 100% pure PP Corrosion resistance and oxidation resistance Good chemical compatibility, suitable for a variety of liquid filtration
  • Industry Application
  • It is an ideal filtration equipment for biomedicine, beer and beverage, chemical, water treatment and other industries.
PRODUCT DESCRIPTION
  • Filter material
  • base: PP
  • Cylinder: PP
  • Connector: PVC
  • Sealing ring: EPDM, fluororubber
  • Technical Parameter
  • Maximum withstand voltage :6bar
  • Maximum operating temperature: 60℃
  • Filter (filter element) connection
  • Cylinder connection: thread
  • Inlet and outlet: DN40
  • length:10”、20”
  • Interface for matching filter:226,334
Ordering Information
  • Series
  • HP1
  • End cap type
  • R=226
  • Length
  • 10=10"
  • 20=20"
  • Cylinder connection
  • L=Thread
  • Inlet and outlet connection
  • N=3/4“ NPT
