Nylon EYN Series
Nylon EYN Series
Nylon EYN Series
Nylon EYN Series
Nylon EYN Series

Nylon EYN Series

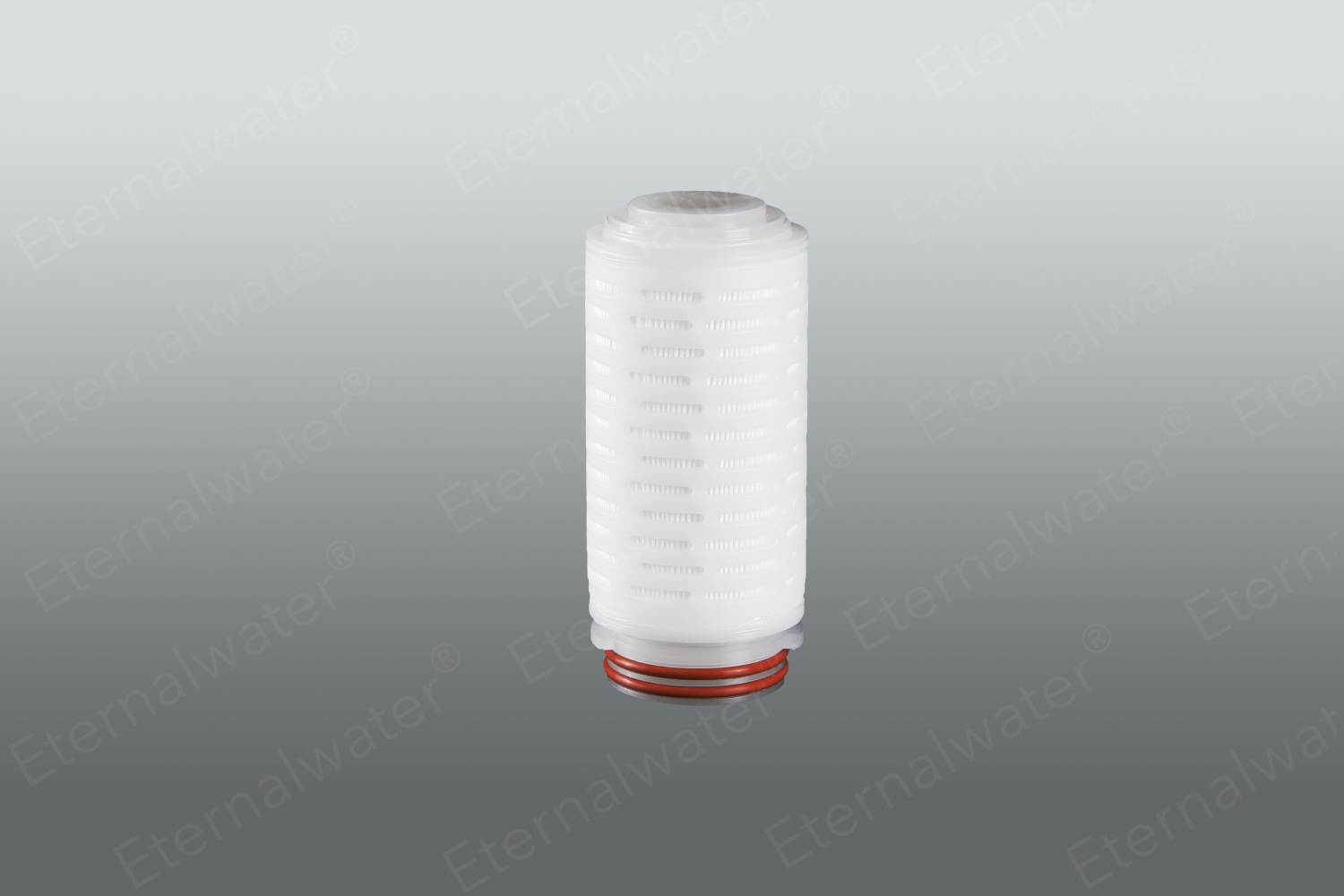

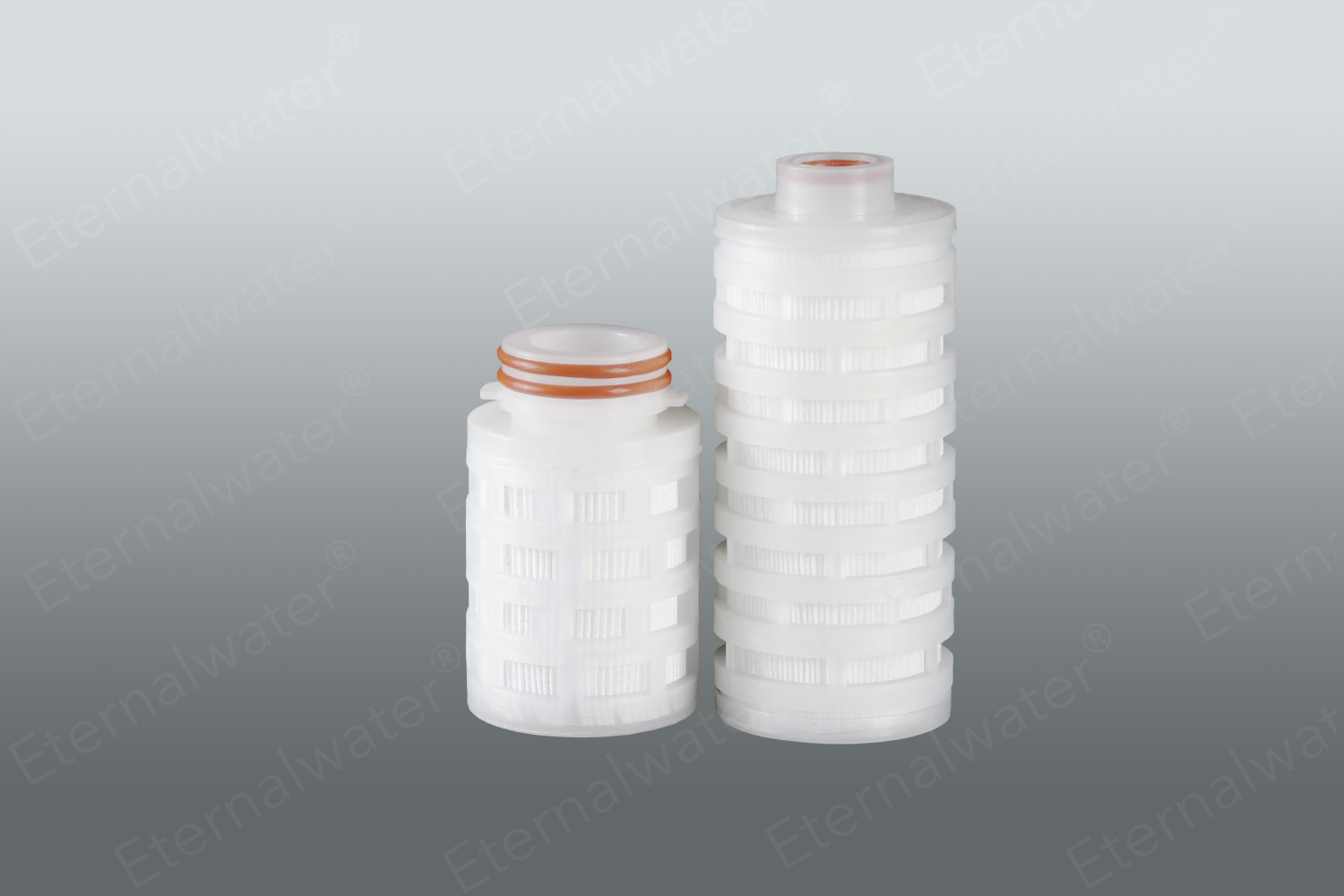

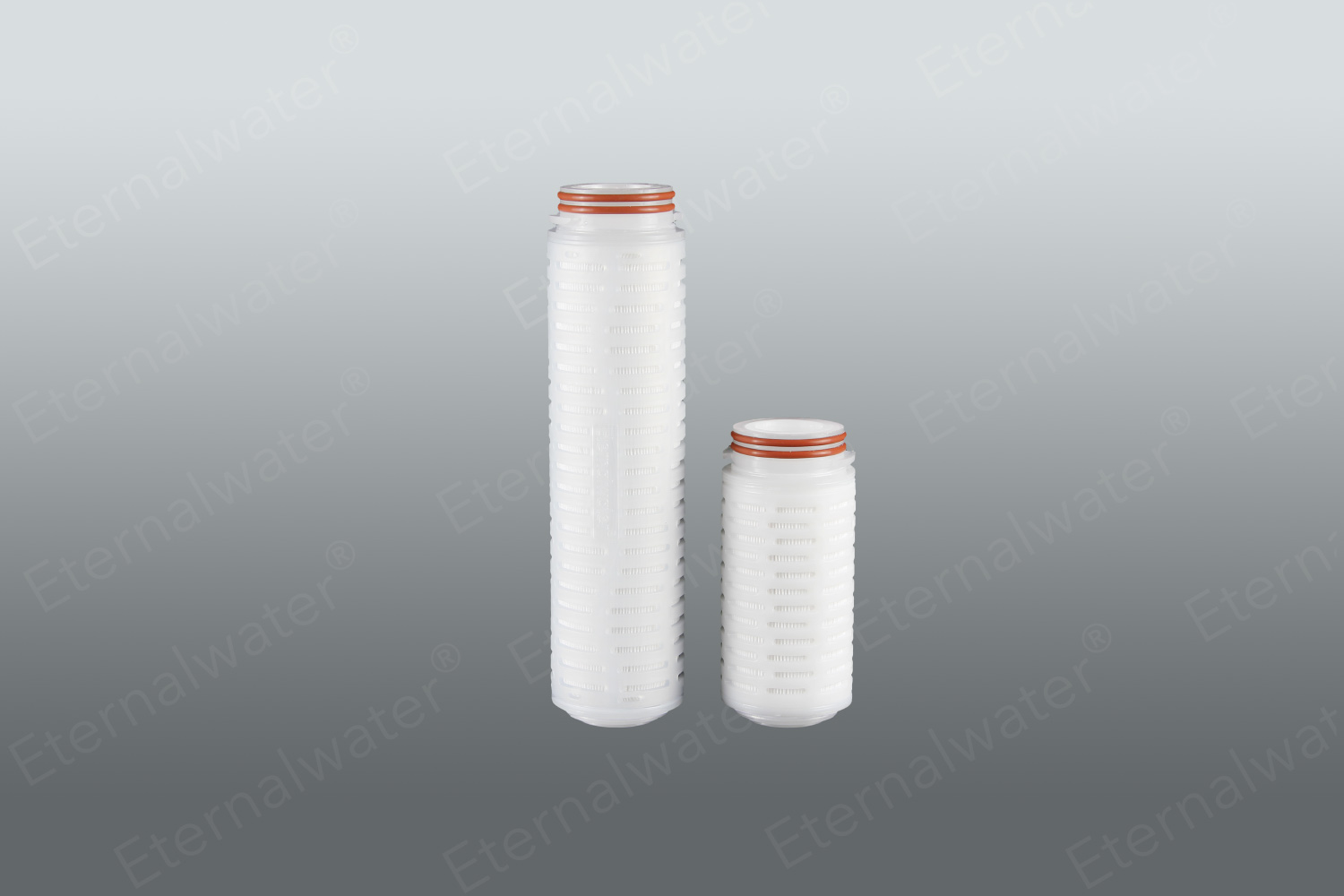

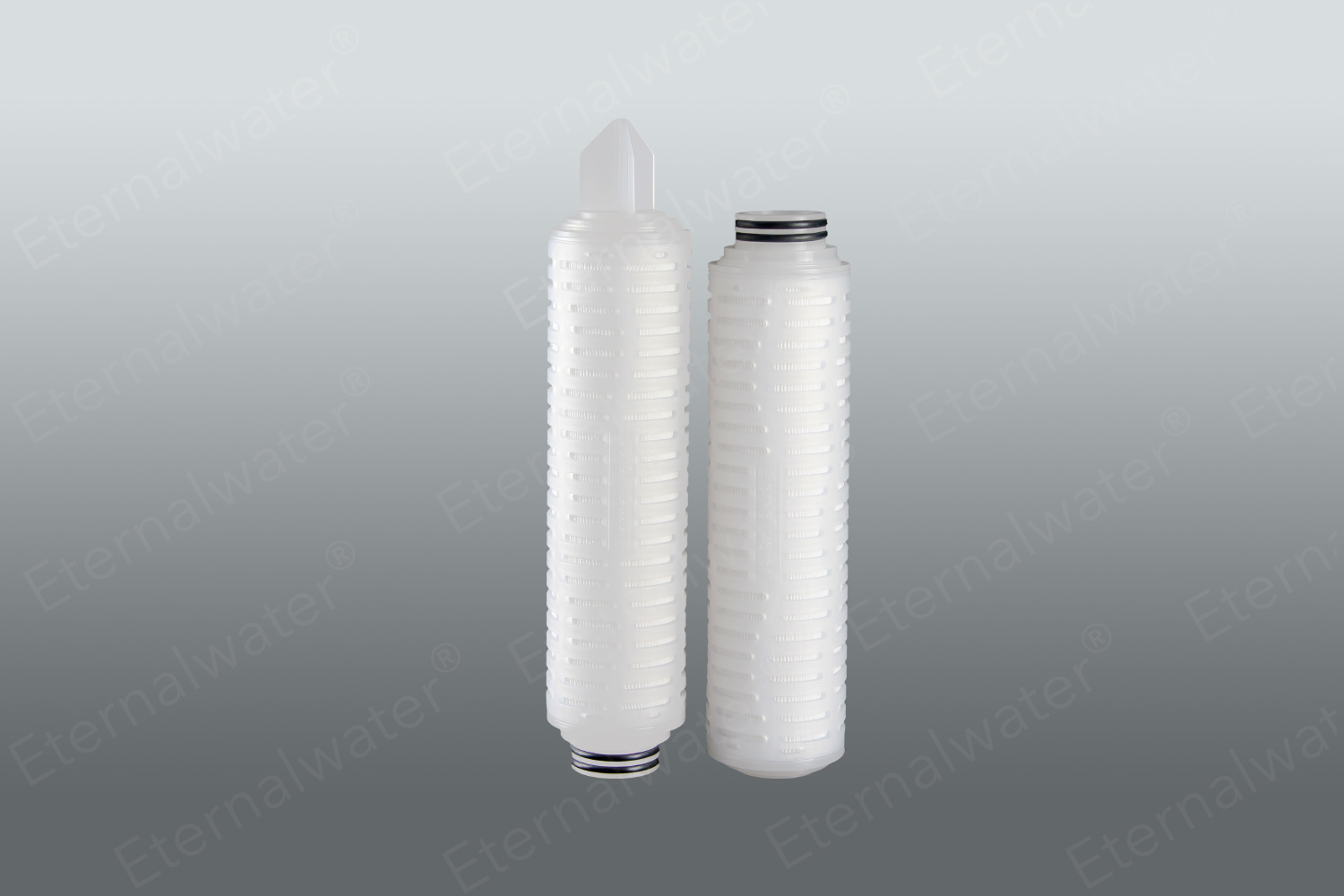

The economical and efficient nylon membrane filter element adopts natural hydrophilic N6 membrane, which is a composite membrane containing a support body and has good mechanical properties and temperature resistance.Integrity test before delivery to ensure high quality of products
  • Product features
  • Charged, high throughput, strong sterilization Absolute pore size to ensure effective filtration Each filter element passes the integrity test
  • Industry Application
  • Electronics industry: Ultrapure water preparation terminal filtration, semiconductor wet equipment terminal filtration, water-based reagent filtration Pharmaceutical industry:Water for injection, large volume parenteral, small volume parenteral, freeze-dry powder injector, eye drops, biological products, blood products, antibiotics and other liquid sterilization filtration Food industry:Terminal filtration of mineral water and pure water
PRODUCT DESCRIPTION
  • Operating conditions
  • Operating temperature: ≤80℃
  • Maximum pressure difference that can withstand: 4bar (21℃)/2.4bar (80℃)
  • Sterilization method: 121℃/30min steam sterilization
  • Material structure
  • Filter material: nylon (N6)
  • Inner core: PP
  • shell: PP
  • End cap: PP
  • Sealing technology: hot melt welding
  • Gasket/O-ring: EPDM, silica gel, fluororubber, PTFE coated, PTEF
  • Filter element size
  • external diameter: (68mm)
  • length: 5〞、10 〞、20 〞、30〞、40〞
Ordering Information
  • Series
  • EYN
  • Micron Rating
  • 010=0.10μm
  • 022=0.22μm
  • 045=0.45μm
  • 100=1.00μm
  • 500=5.00μm
  • 1000=10.00μm
  • End cap type
  • J1=222/Fin
  • J2=222/Flat
  • J3=226/Fin
  • J4=226/Flat
  • J5=DOE
  • Length
  • 05=5"
  • 10=10"
  • 20=20"
  • 30=30"
  • 40=40"
  • O-ring
  • S=Silicone
  • E=EPDM
  • V=Viton
  • D=PTFE
  • core
  • A=PP core
  • B=PP core+Interface lined with stainless steel
  • C=PP core+Lined with stainless steel

  • related products
    Hangzhou Eternalwater Filtration Equipment Co., Ltd. specializes in the development of microporous membranes such as PES, PVDF, N66, PTFE, PP, etc., and designs and manufactures various folded membrane cartridges. Products are widely used in liquid filtration and gas filtration in the pharmaceutical, food and beverage, chemical, electronics and other industries, and provide filtration, separation and purification solutions for customers.
