PTFE EFT Series
PTFE EFT Series
PTFE EFT Series
PTFE EFT Series
PTFE EFT Series

PTFE EFT Series

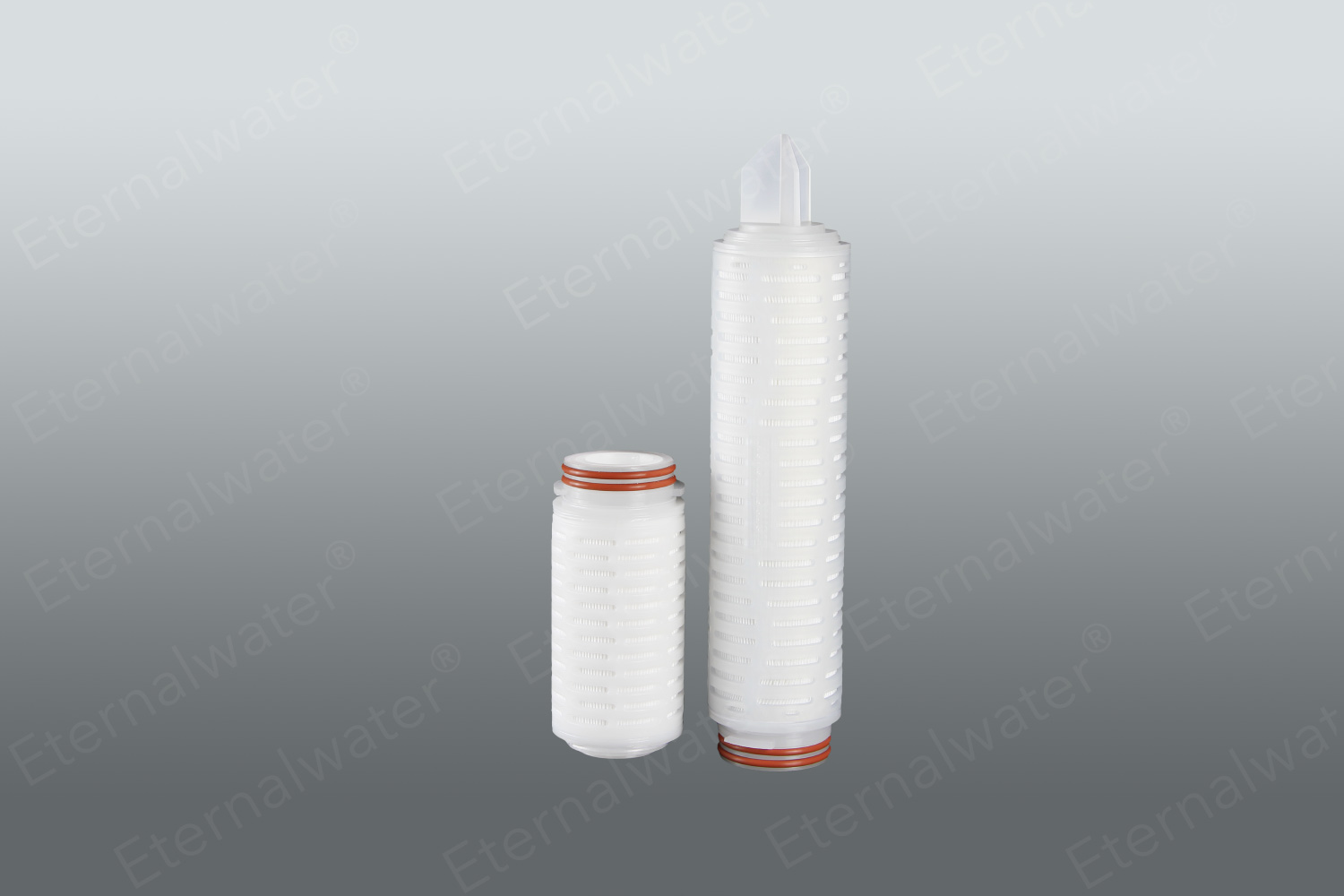

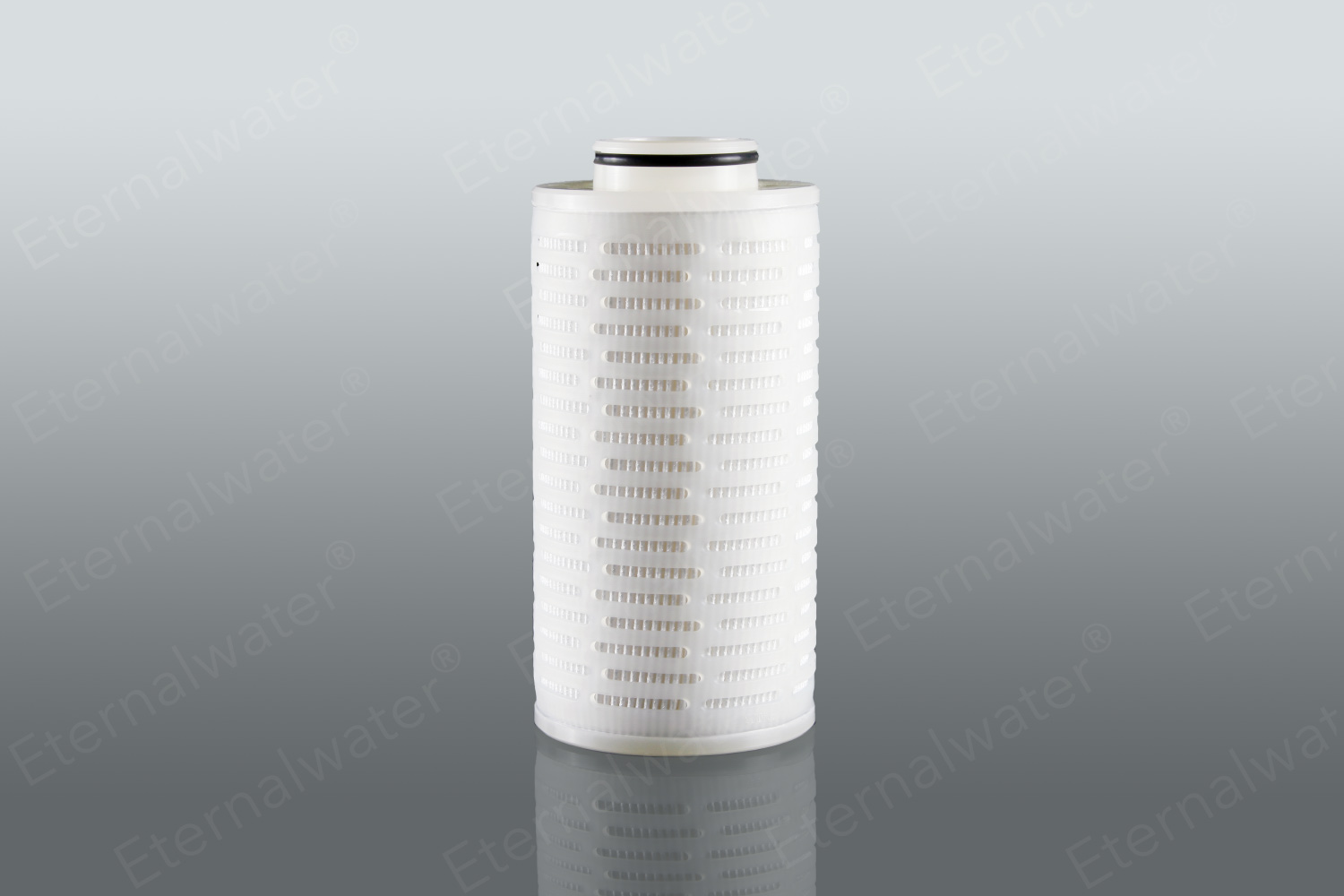

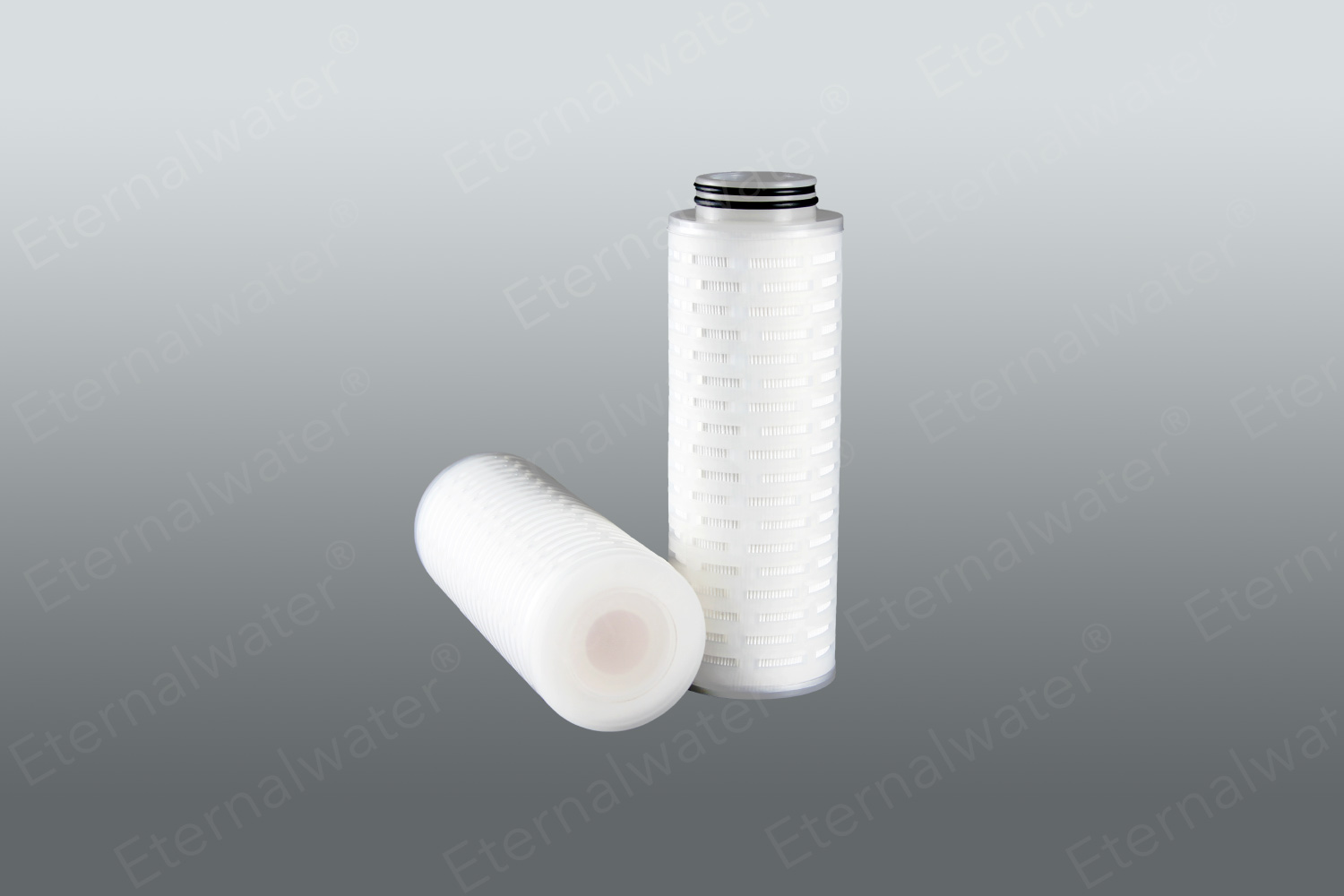

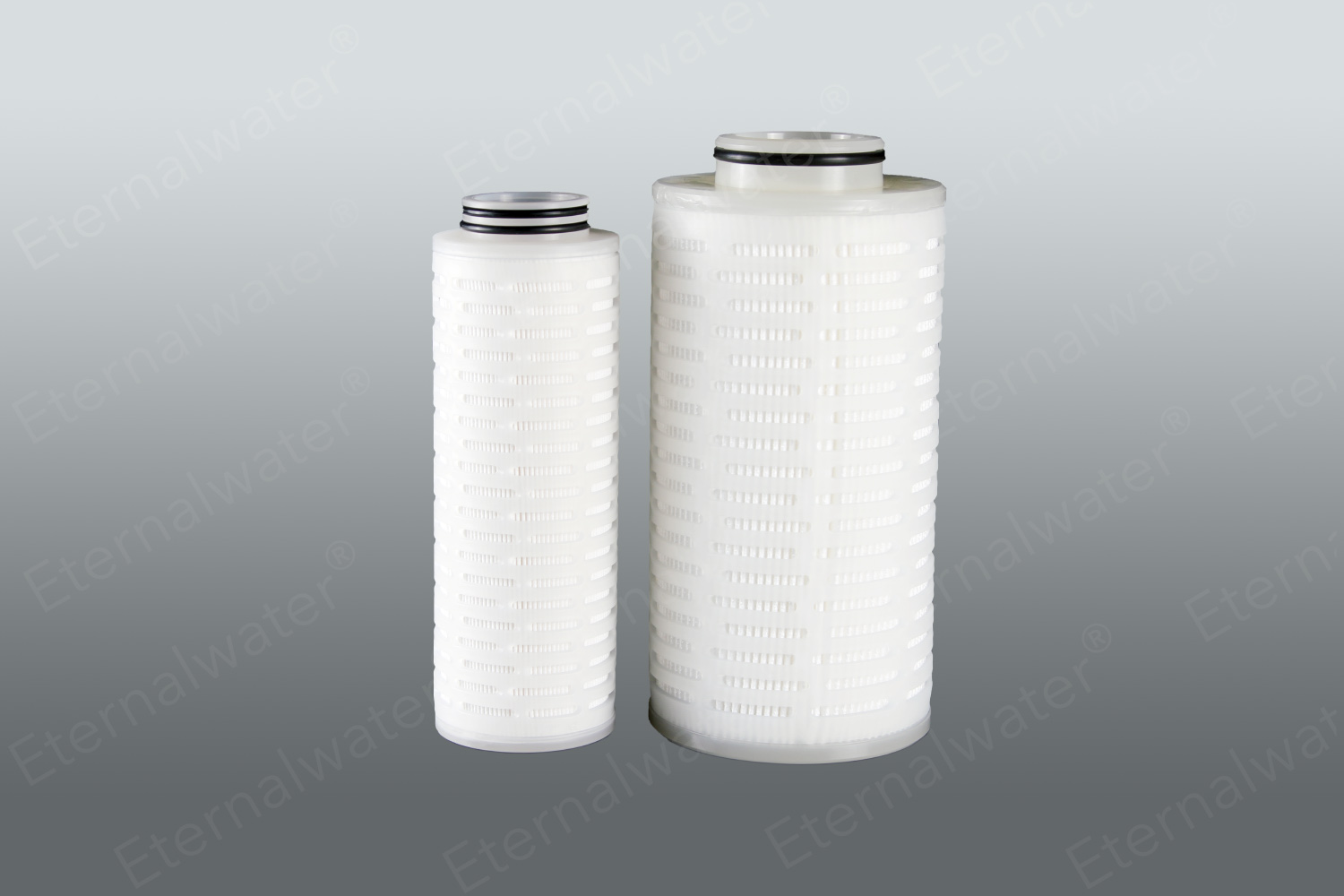

The hydrophobic PTFE filter element adopts natural hydrophobic PTFE membrane. The wide chemical compatibility of PTFE membrane makes the filter element suitable for sterilization and filtration of strong solvents, strong corrosive liquids, and strong oxidizing liquids.
  • Product features
  • natural hydrophobicity, corrosion resistance Broad chemical compatibility Absolute pore size to ensure effective filtration
  • Industry Application
  • Electronic industry: Electronic-grade filtration of various acids, alkalis and organic reagents Pharmaceutical industry: Solvent sterilization and filtration, and filtration of corrosive, strong oxidizing liquids, organic reagents, etc.
PRODUCT DESCRIPTION
  • Operating conditions
  • Operating temperature: ≤80℃
  • Maximum pressure difference that can withstand: 4bar (21℃)/2.4bar (80℃)
  • Sterilization method: 121℃/30min steam sterilization
  • Material structure
  • Filter material: hydrophobic PTFE membrane
  • Inner core: PP
  • shell: PP
  • End cap: PP
  • Sealing technology: hot melt welding
  • Gasket/O-ring: EPDM, silica gel, fluororubber, PTFE coated, PTEF
  • Filter element size
  • external diameter: (68mm)
  • length: 5〞、10 〞、20 〞、30〞、40〞
Ordering Information
  • Series
  • EFT
  • Micron Rating
  • 005=0.05μm
  • 010=0.10μm
  • 022=0.22μm
  • 045=0.45μm
  • 100=1.00μm
  • 300=3.00μm
  • 500=5.00μm
  • End cap type
  • J1=222/Fin
  • J2=222/Flat
  • J3=226/Fin
  • J4=226/Flat
  • J5=DOE
  • Length
  • 05=5"
  • 10=10"
  • 20=20"
  • 30=30"
  • 40=40"
  • O-ring
  • S=Silicone
  • E=EPDM
  • V=Viton
  • D=PTFE
  • core
  • A=PP core
  • B=PP core+Interface lined with stainless steel
  • C=PP core+Lined with stainless steel

  • related products
    Hangzhou Eternalwater Filtration Equipment Co., Ltd. specializes in the development of microporous membranes such as PES, PVDF, N66, PTFE, PP, etc., and designs and manufactures various folded membrane cartridges. Products are widely used in liquid filtration and gas filtration in the pharmaceutical, food and beverage, chemical, electronics and other industries, and provide filtration, separation and purification solutions for customers.
    • PTFE EFT Series
    • PTFE EFT Series
    • The hydrophobic PTFE filter element adopts natural hydrophobic PTFE membrane. The wide chemical compatibility of PTFE membrane makes the filter element suitable for sterilization and filtration of strong solvents, strong corrosive liquids, and strong oxidizing liquids.
    • PTFE EKT Series
    • PTFE EKT Series
    • It is suitable for gas sterilization and adopts imported hydrophobic PTFE membrane, which has high flux and high sterilization efficiency. The filter element has good heat resistance and can operate steam sterilization for over 150 times.The integrity test before delivery ensures the high quality of products.
    • PTFE ELT Series
    • PTFE ELT Series
    • The hydrophilic PTFE filter element adopts a permanently modified hydrophilic PTFE membrane. The hydrophilic PTFE membrane has wide chemical compatibility without the need of pre-wetting.The integrity test before delivery ensures the high quality of products.
    • PTFE EQT Series
    • PTFE EQT Series
    • The strongest corrosion-resistant perfluorinated filter element adopts imported PTFE membrane and imported PTFE support layer. The perfluorinated framework is made through a special structural design. It has high flux and flow rate, and long life to meet the filtration requirements under most harsh environments. It has superior corrosion resistance and durability in a strongly corrosive acid and alkali environment.The integrity test before delivery ensures the high quality of products.
