EPD Series
EPD Series
EPD Series
EPD Series
EPD Series

EPD Series

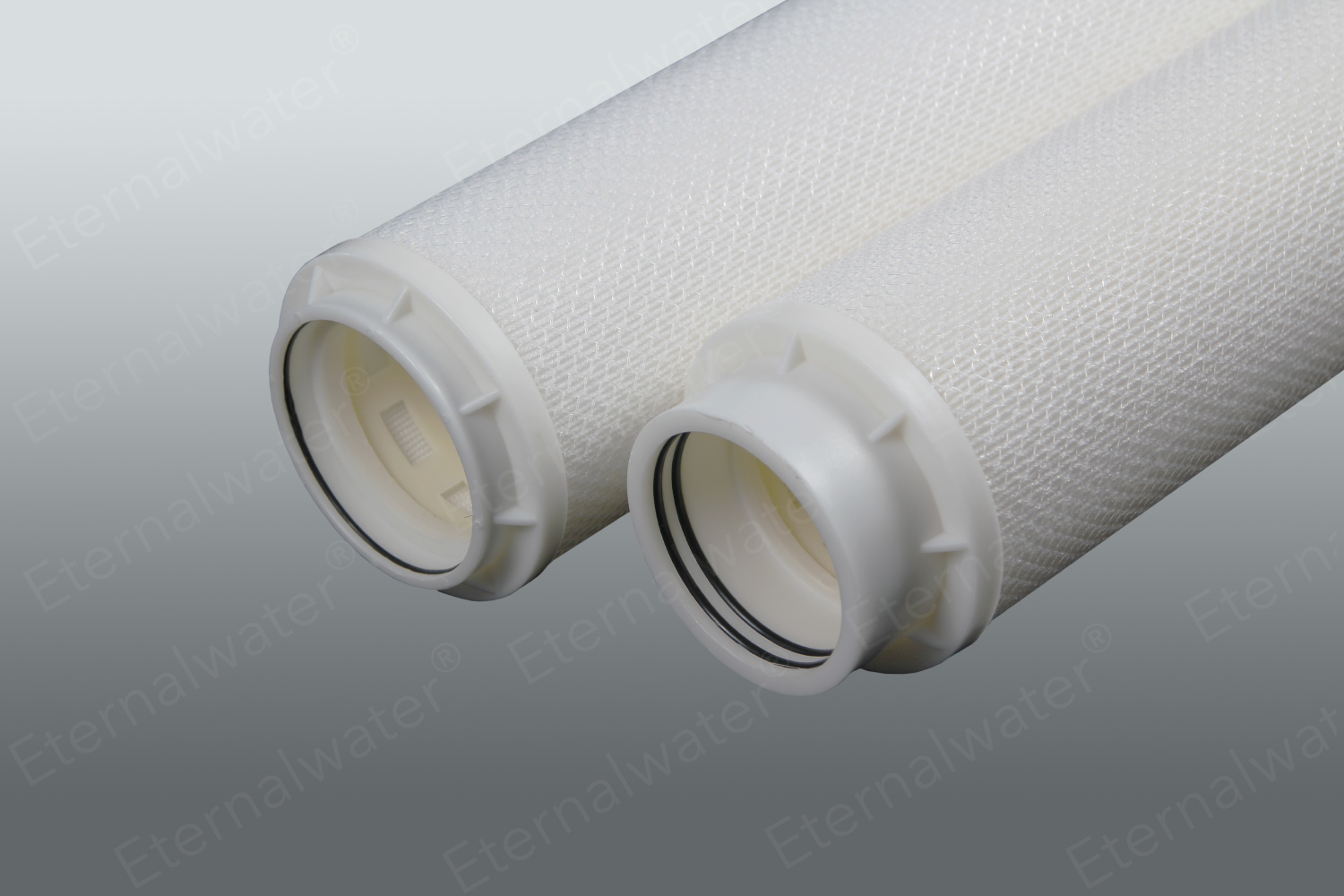

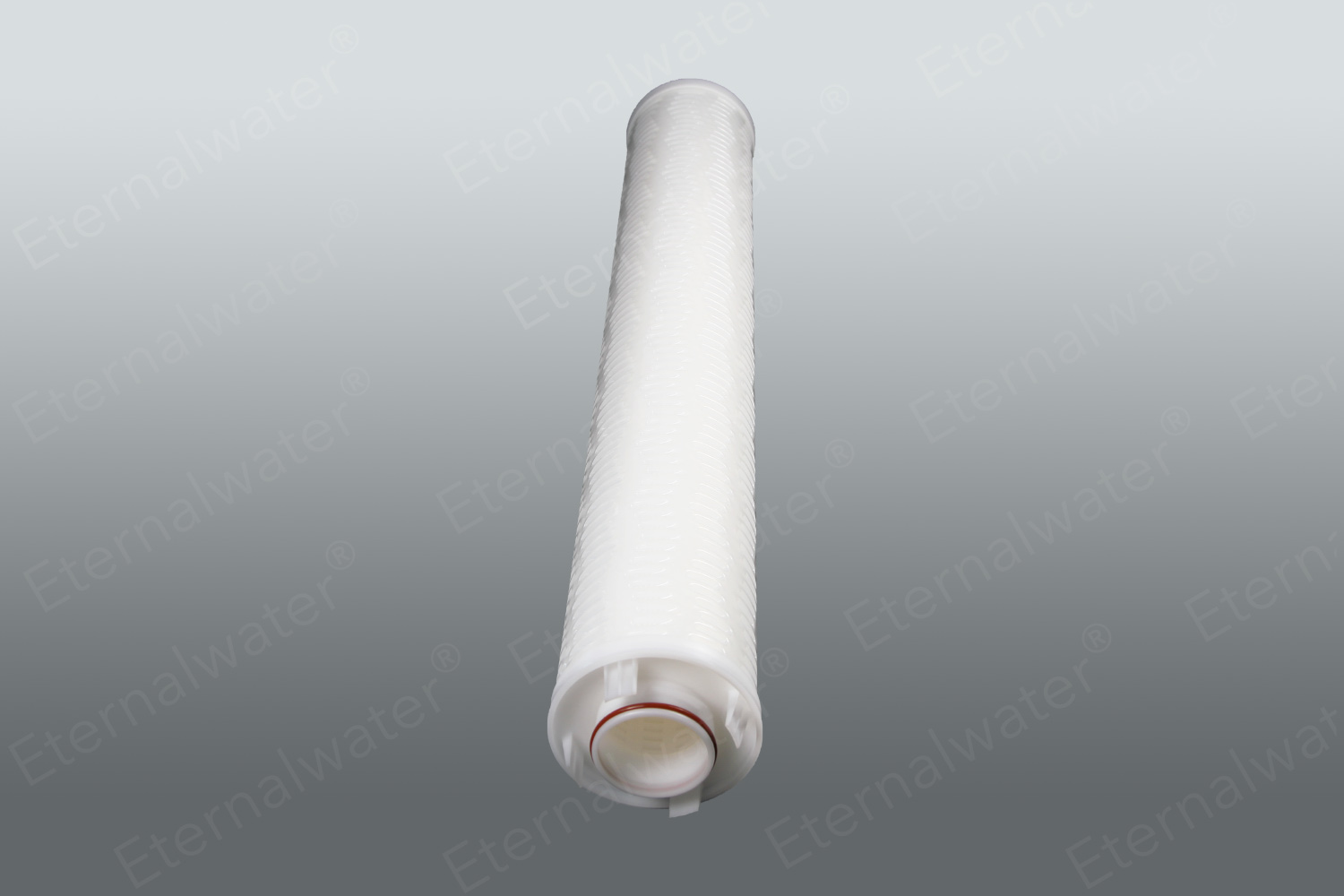

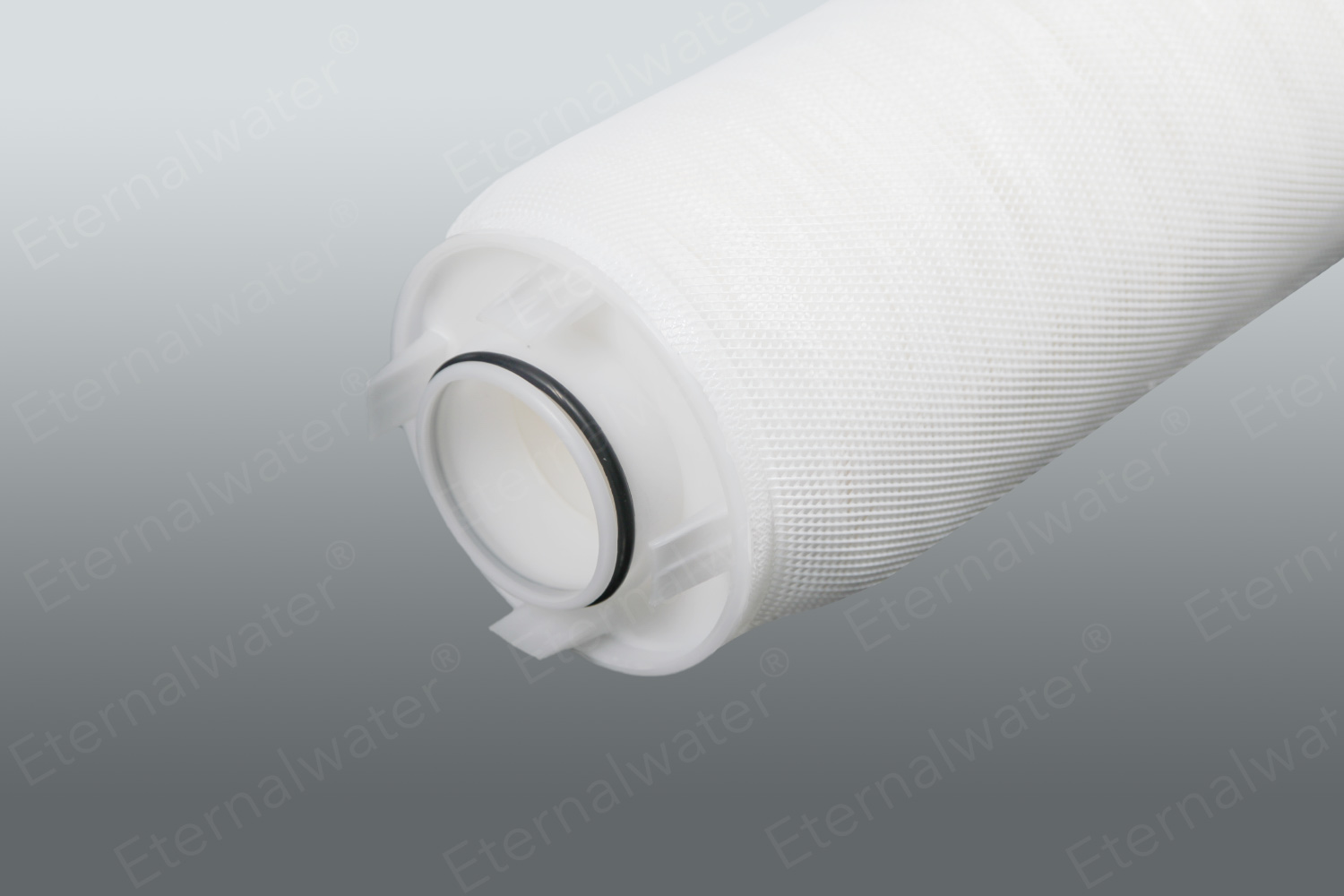

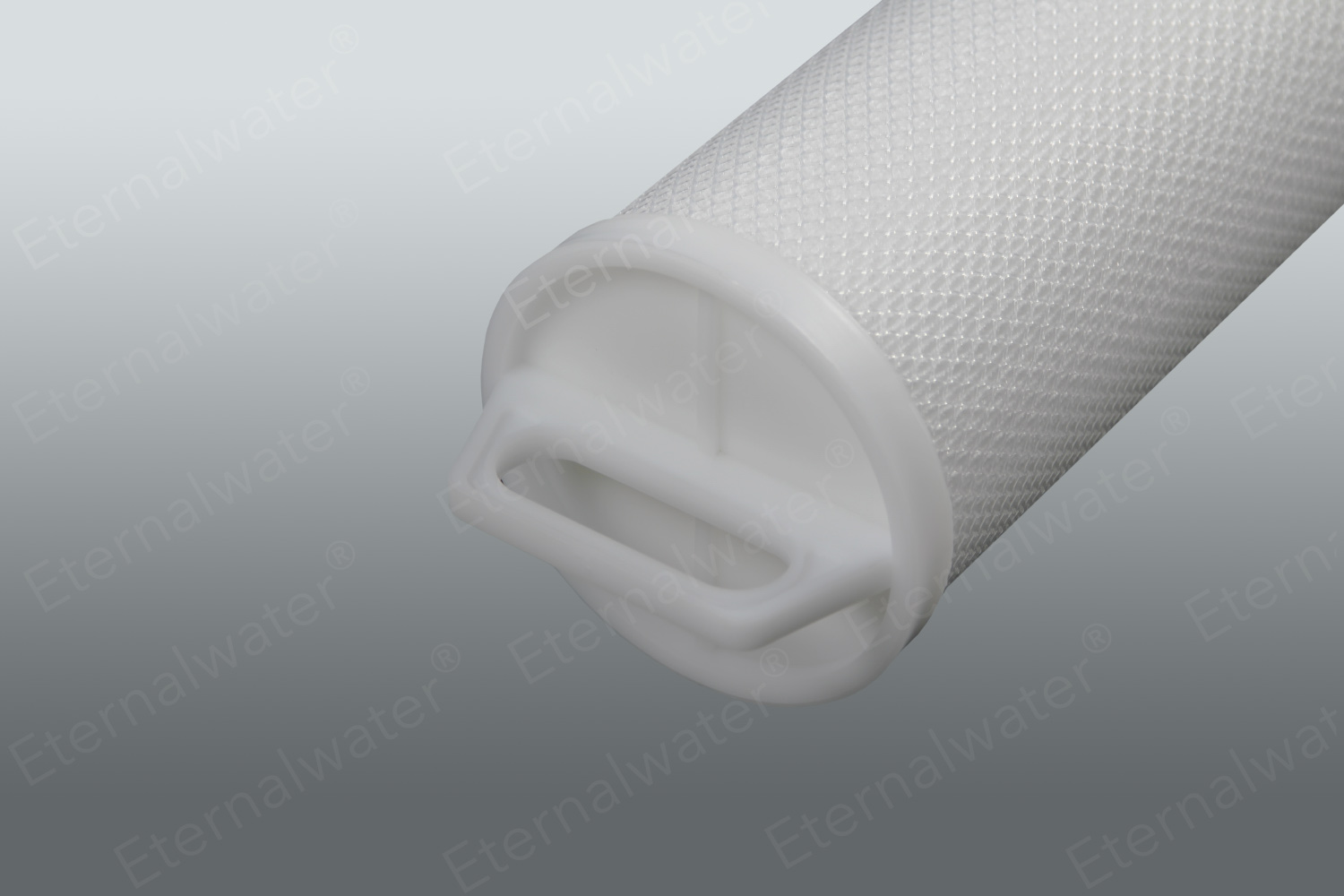

The large flow filter element is made of deep fine polypropylene fiber membrane as the main filter layer, folded and welded. 6 "large diameter, one-way opening. The liquid flows from the inside to the outside to ensure that the particles are trapped inside the filter element. Large filtration area, high pollutant capacity and high flux. It is widely used in security filtration, circulating water filtration and liquid impurity removal filtration in various industries. Main features: large filtration area and high throughput
  • Product features
  • Large filtration area, high throughput, high pollution capacity External pressure structure Pure PP material, wide chemical compatibility Easy installation and replacement, saving manpower and time
  • Industry Application
  • General purpose: pre-filtration for reverse osmosis system, seawater desalination filtration General industry: filtration of process water, condensate water, cooling water, wastewater treatment, etc. Electronics industry: pre-filtration of deionized water Thermal power plant: condensate filtration Chemical/Petrochemical industry: filtration of various acids, alkalis, solvents, quench water, brine, etc.
PRODUCT DESCRIPTION
  • Operating conditions
  • Operating temperature: ≤80℃
  • Maximum pressure difference that can withstand: 2.4bar (21℃)
  • proposal Change the pressure drop: 2.2bar (21℃)
  • Material structure
  • Filter material: PP,GF
  • brace: PP
  • skeleton: PP
  • End cap: PP
  • Gasket/O-ring: EPDM, silica gel, fluororubber, PTFE coated, PTEF
  • Filter element size
  • external diameter: 6"(152mm)
  • length: 40"
Ordering Information
  • Series
  • EPD
  • Material
  • P=PP
  • G=GF
  • Micron Rating
  • 100=1.00μm
  • 500=5.00μm
  • 1000=10.00μm
  • 5000=50.00μm
  • 10000=100.00μm
  • End cap type
  • A=Outer seal
  • Length
  • 20=20“
  • 40=40"
  • 60=60"
  • O-ring
  • S=Silicone
  • E=EPDM
  • core
  • A=PP core
  • G=GF core
    • related products
    Hangzhou Eternalwater Filtration Equipment Co., Ltd. specializes in the development of microporous membranes such as PES, PVDF, N66, PTFE, PP, etc., and designs and manufactures various folded membrane cartridges. Products are widely used in liquid filtration and gas filtration in the pharmaceutical, food and beverage, chemical, electronics and other industries, and provide filtration, separation and purification solutions for customers.
    • EPD Series
    • EPD Series
    • The large flow filter element is made of deep fine polypropylene fiber membrane as the main filter layer, folded and welded. 6 "large diameter, one-way opening. The liquid flows from the inside to the outside to ensure that the particles are trapped inside the filter element. Large filtration area, high pollutant capacity and high flux. It is widely used in security filtration, circulating water filtration and liquid impurity removal filtration in various industries. Main features: large filtration area and high throughput
