PES EAPS Series
PES EAPS Series
PES EAPS Series
PES EAPS Series
PES EAPS Series

PES EAPS Series

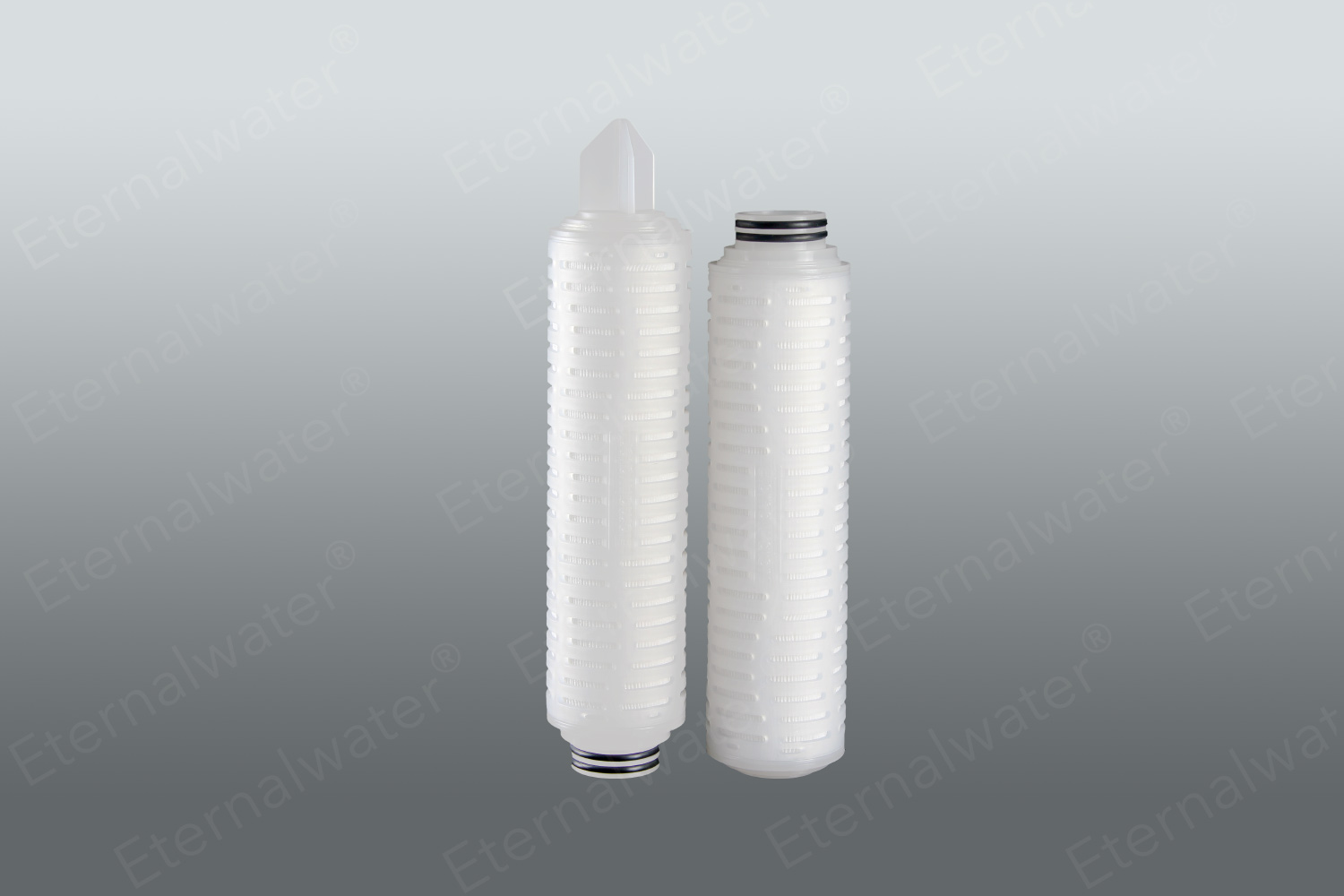

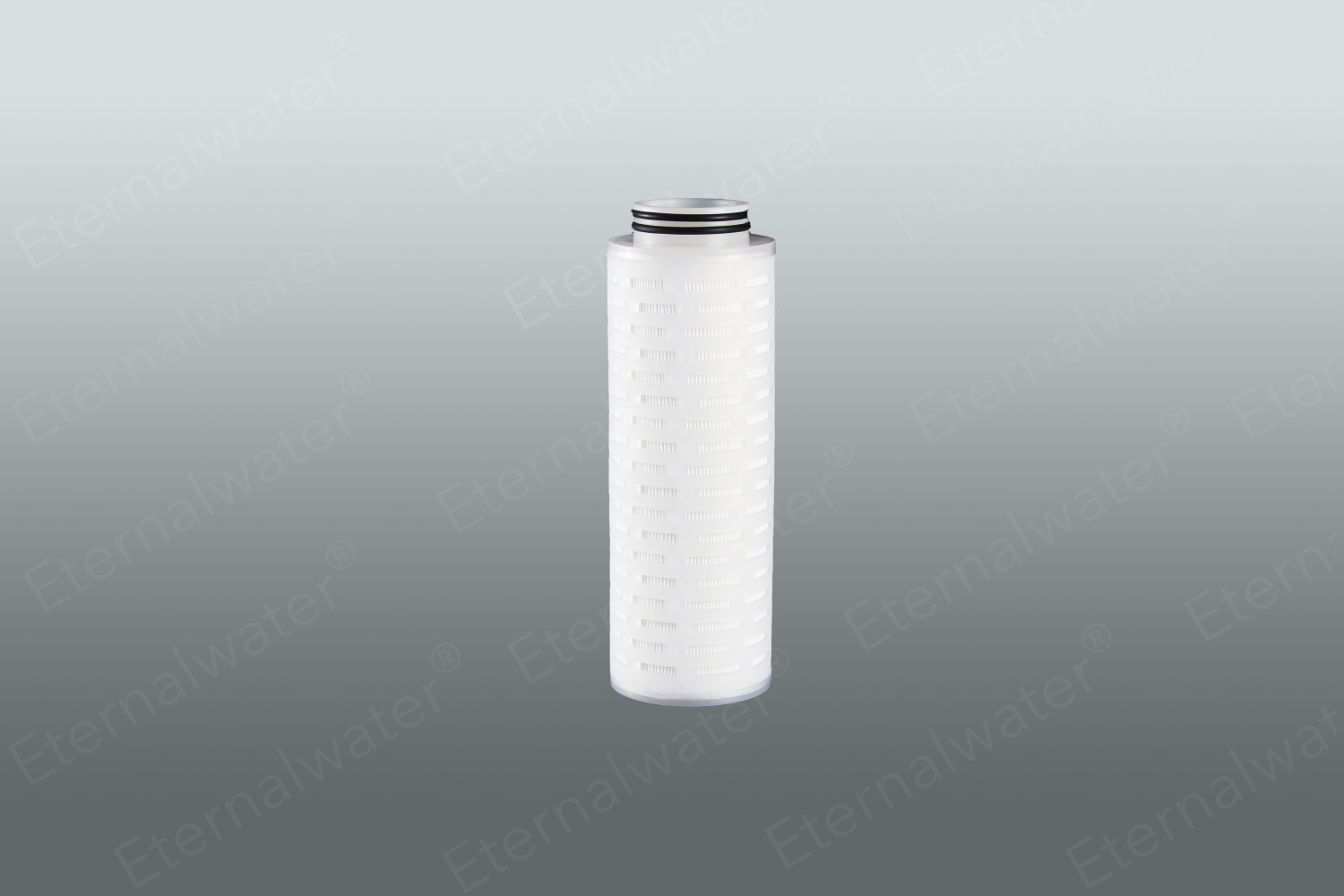

The sterilization-grade double-layer polyethersulfone filter element adopts adouble-layer asymmetric unsupported PES membrane imported from Germany, which has the performance of high throughput, long life, high bubble point and high rejection rate. The filter element has good heat resistance and can withstand multiple steam sterilization,The integrity test before delivery ensures the high quality of products.
  • Product features
  • Asymmetric double-layer polyethersulfone membrane, high pollution capacity High throughput, high bubble point, strong sterilization High hydrophilicity, easy for wetting test Absolute pore size to ensure effective filtration Each filter element passes the integrity test Broad chemical compatibility
  • Industry Application
  • Electronics industry: Terminal filtration of ultrapure water preparation, semiconductor wet equipment terminal filtration, water-based ink terminal filtration, electronic reagent terminal filtration Pharmaceutical industry:Sterilization and filtration of water for injection, large volume parenteral (LVP), small volume parenteral (SVP), freeze-dry powder injection, biological products, eye drops, antibiotics, etc. Food industry:Sterilization and filtration of pure draft beer, wine, pure water, mineral water, etc.
PRODUCT DESCRIPTION
  • Operating conditions
  • Operating temperature: ≤80℃
  • Maximum pressure difference that can withstand: 4bar (21℃)/2.4bar (80℃)
  • Sterilization method: 121℃/30min steam sterilization
  • Material structure
  • Filter material: Inlet asymmetry PES
  • Inner core: PP
  • shell: PP
  • End cap: PP
  • Sealing technology: hot melt welding
  • Gasket/O-ring: EPDM, silica gel, fluororubber, PTFE coated, PTEF
  • Filter element size
  • external diameter: (68mm)
  • length: 5〞、10 〞、20 〞、30〞、40〞
Ordering Information
  • Series
  • EAPS
  • Micron Rating
  • 005=0.05μm
  • 010=0.10μm
  • 022=0.22μm
  • 045=0.45μm
  • 065=0.65μm
  • 080=0.80μm
  • 120=1.20μm
  • End cap type
  • J1=222/Fin
  • J2=222/Flat
  • J3=226/Fin
  • J4=226/Flat
  • J5=DOE
  • Length
  • 05=5"
  • 10=10"
  • 20=20"
  • 30=30"
  • O-ring
  • S=Silicone
  • E=EPDM
  • V=Viton
  • D=PTFE
  • core
  • A=PP core
  • B=PP core+Interface lined with stainless steel
  • C=PP core+Lined with stainless steel
