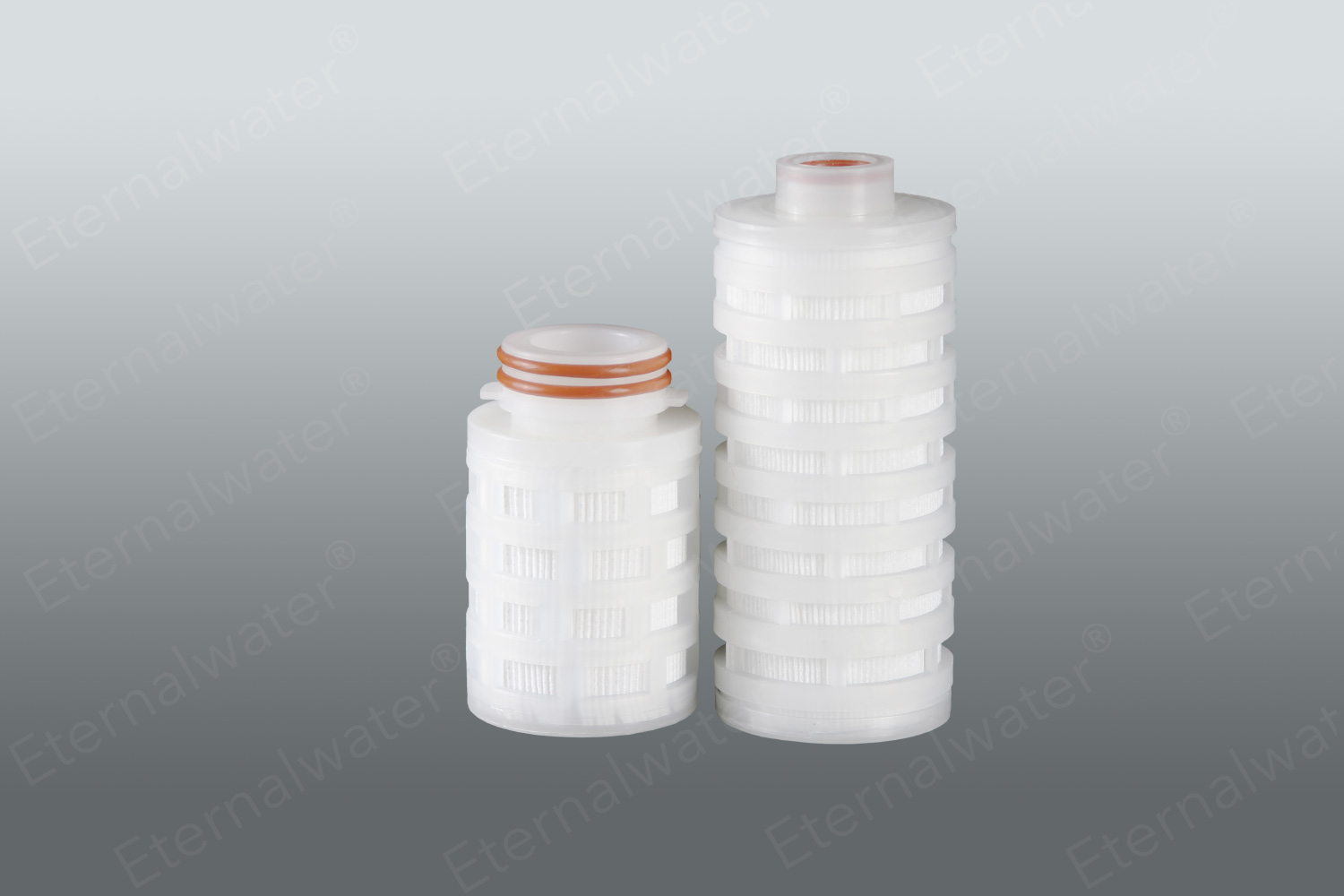

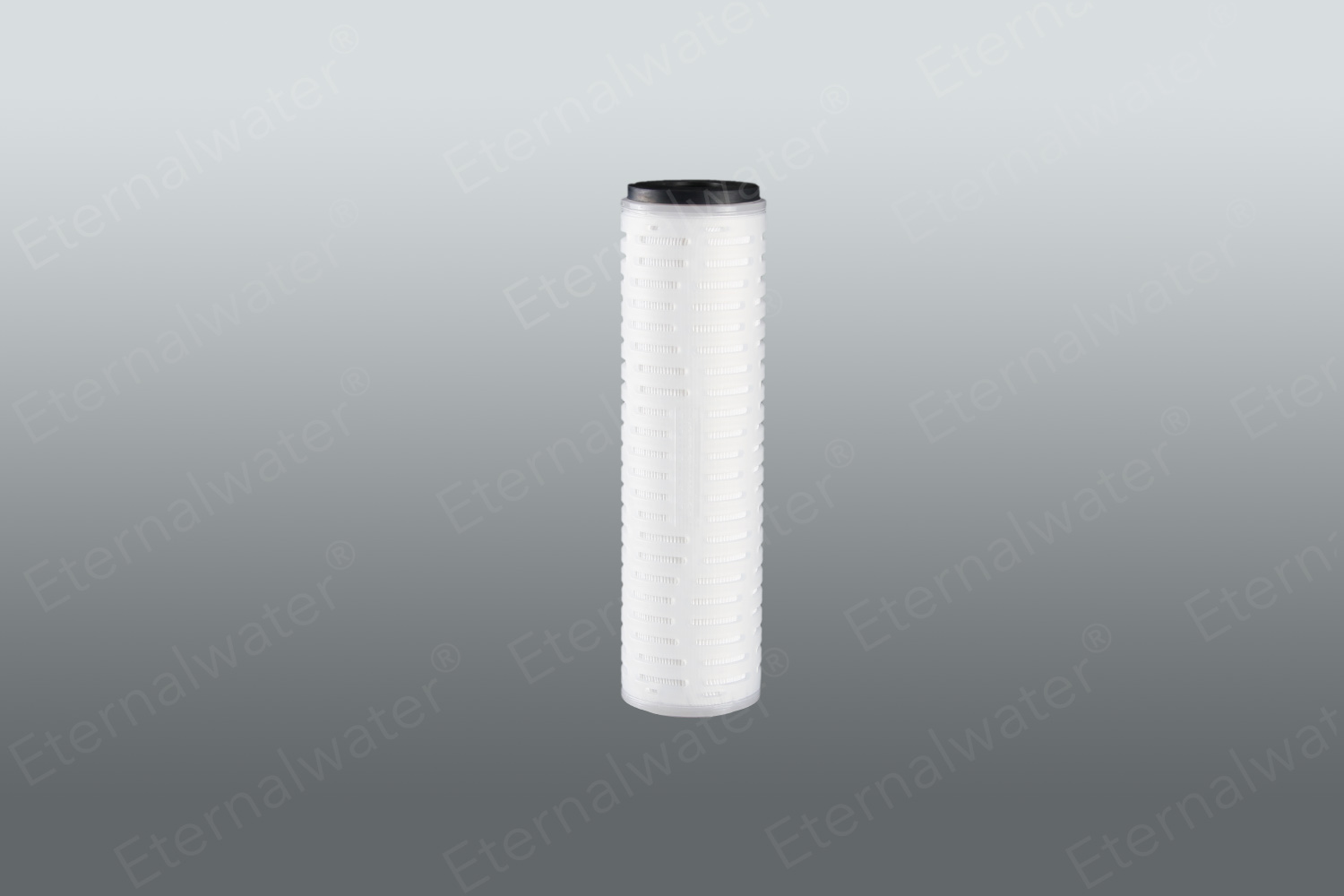

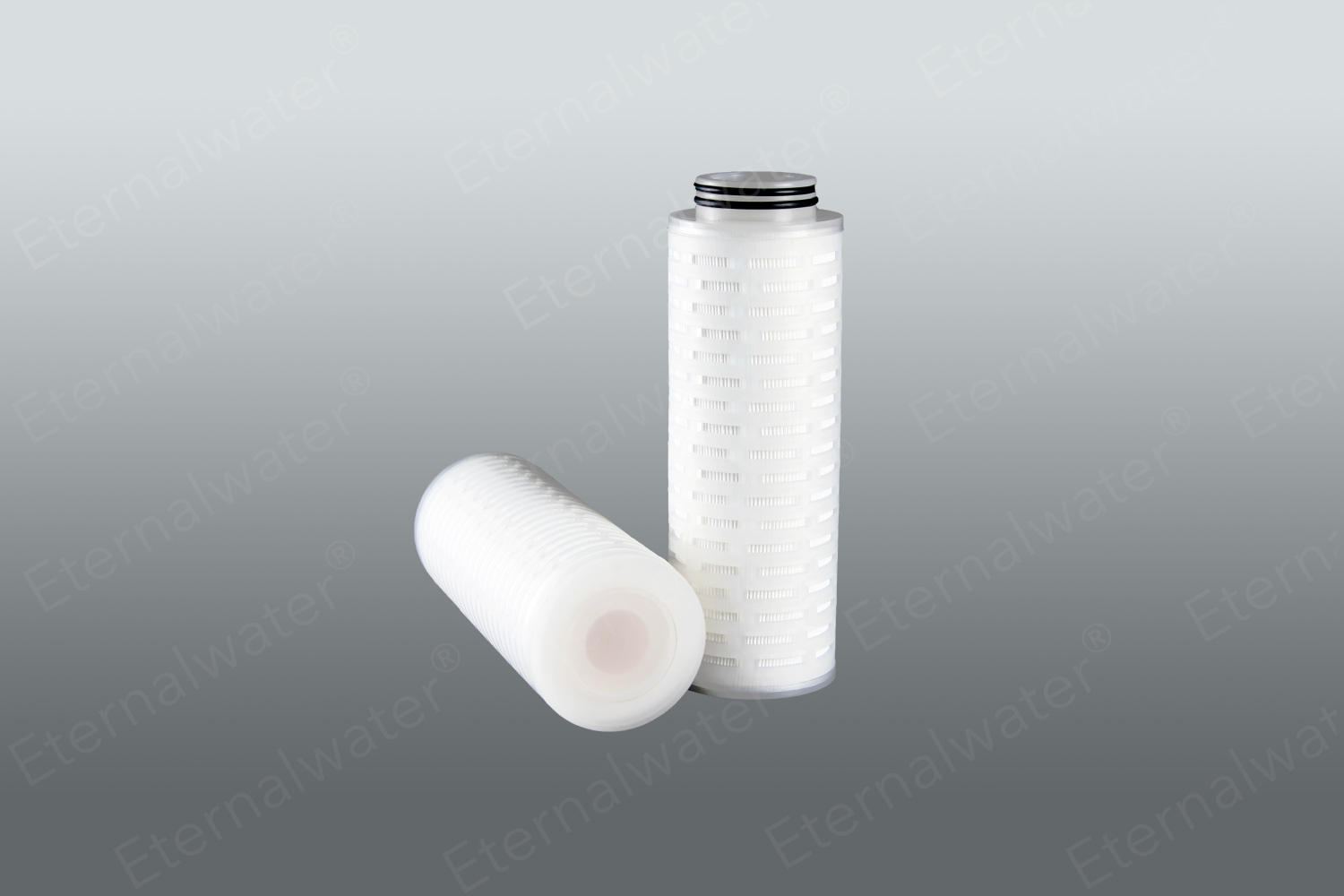

PVDF EFV Series

Hydrophobic polyvinylidene fluoride filter element adopts hydrophobic PVDF membrane, which has high flux and low protein adsorption. The wide chemical compatibility of hydrophobic PVDF membrane makes the filter element suitable for filtration of various acid and alkali solutions.

Product features
High flow rate and long life Low protein adsorption Broad chemical compatibility Absolute aperture to ensure effective filtration Each filter element passes the integrity test

Industry Application
Electronic industry: Filtration of hydrophilic solvents, various acids, alkalis and other corrosive solutions Pharmaceutical industry: Solvent sterilization and filtration, and filtration of corrosive, strong oxidizing liquids

PRODUCT DESCRIPTION

Operating conditions
Operating temperature: ≤80℃
Maximum pressure difference that can withstand: 4bar (21℃)／2.4bar (80℃)
Sterilization method: 121℃/30min steam sterilization

Material structure
Filter material: Hydrophobic polyvinylidene fluoride membrane
Supporting layer:PP
shell: PP
End cap: PP
Sealing technology: hot melt welding
Gasket/O-ring: Silicone rubber, EPDM, fluororubber, PTFE

Filter element size
external diameter: (68mm)
length: 5〞、10 〞、20 〞、30〞、40〞

Ordering Information

Series

EFV

Micron Rating

010=0.10μm

022=0.22μm

045=0.45μm

100=1.00μm

300=3.00μm

500=5.00μm

End cap type

J1=222/Fin

J2=222/Flat

J3=226/Fin

J4=226/Flat

J5=DOE

Length

05=5"

10=10"

20=20"

30=30"

40=30"

O-ring

S=Silicone

E=EPDM

V=Viton

D=PTFE

core

A=PP core

B=PP core+Interface lined with stainless steel

C=PP core+Lined with stainless steel
