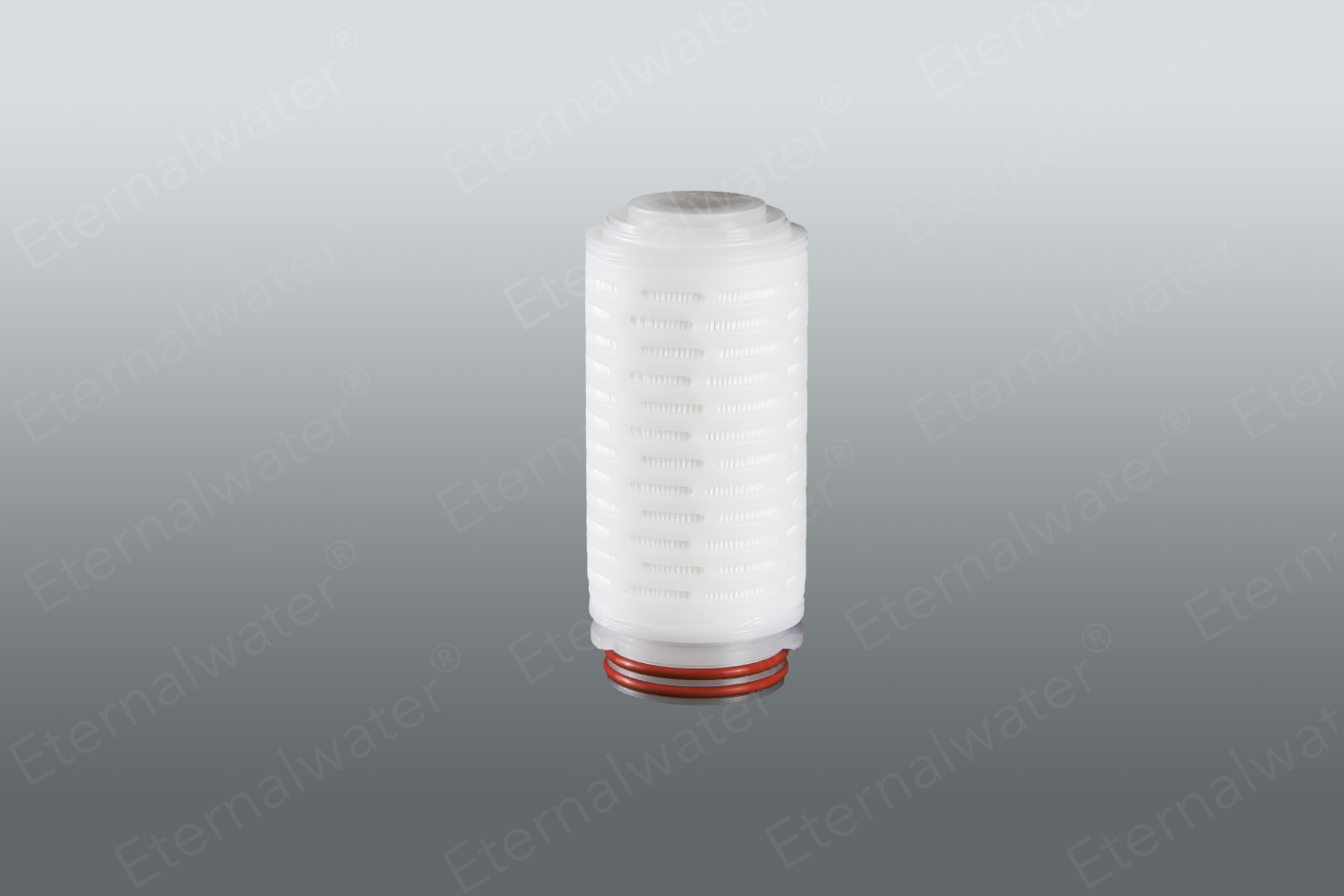

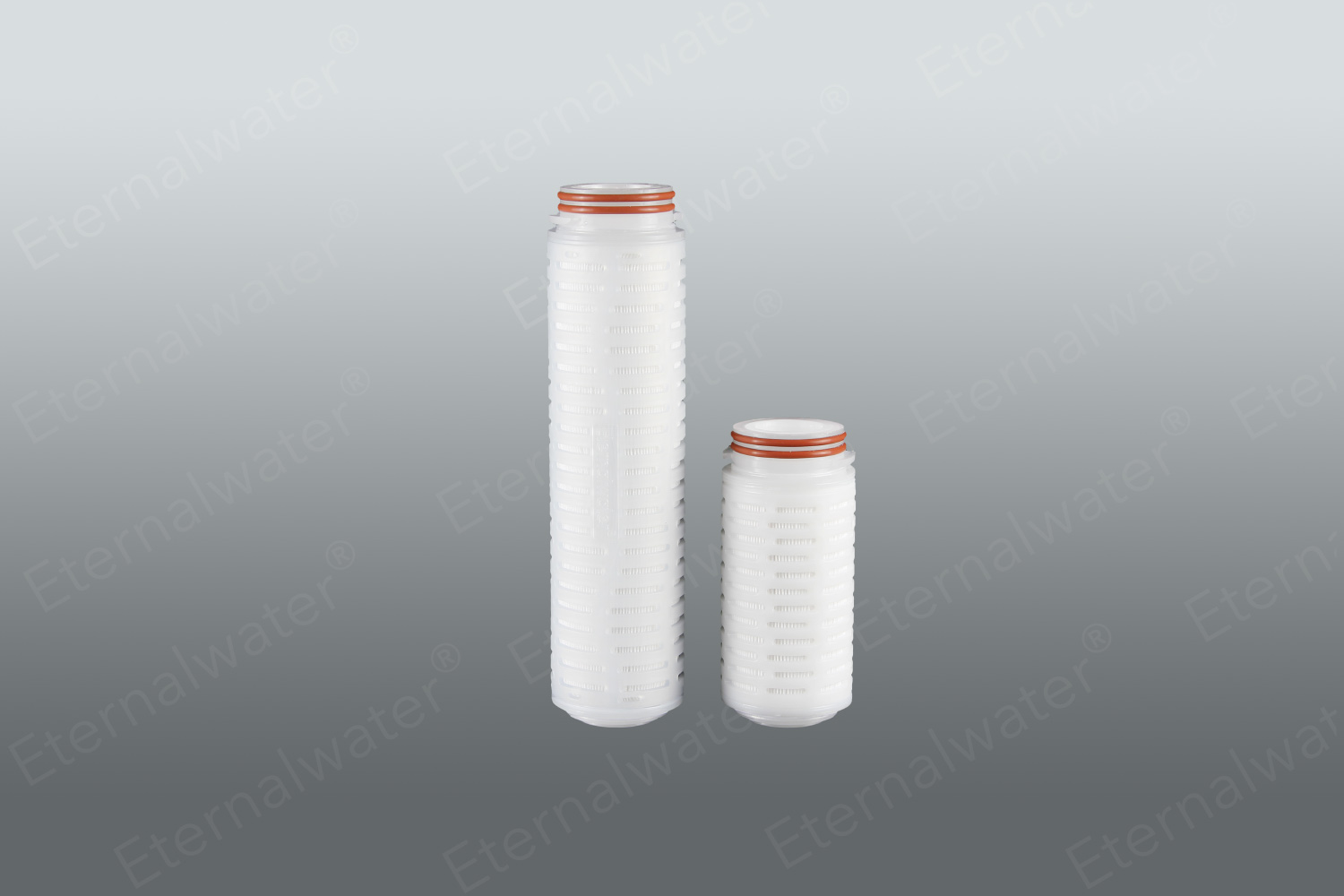

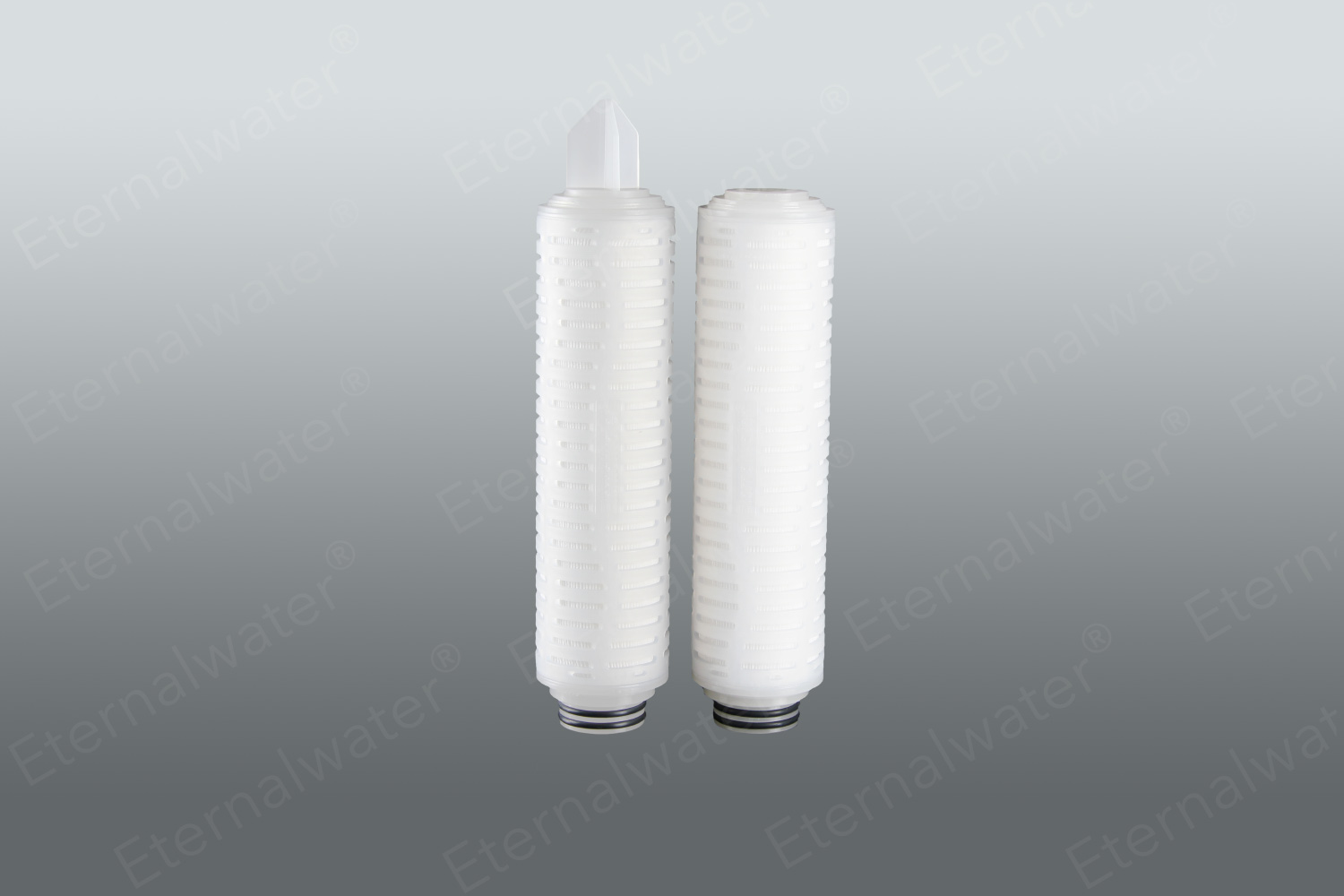

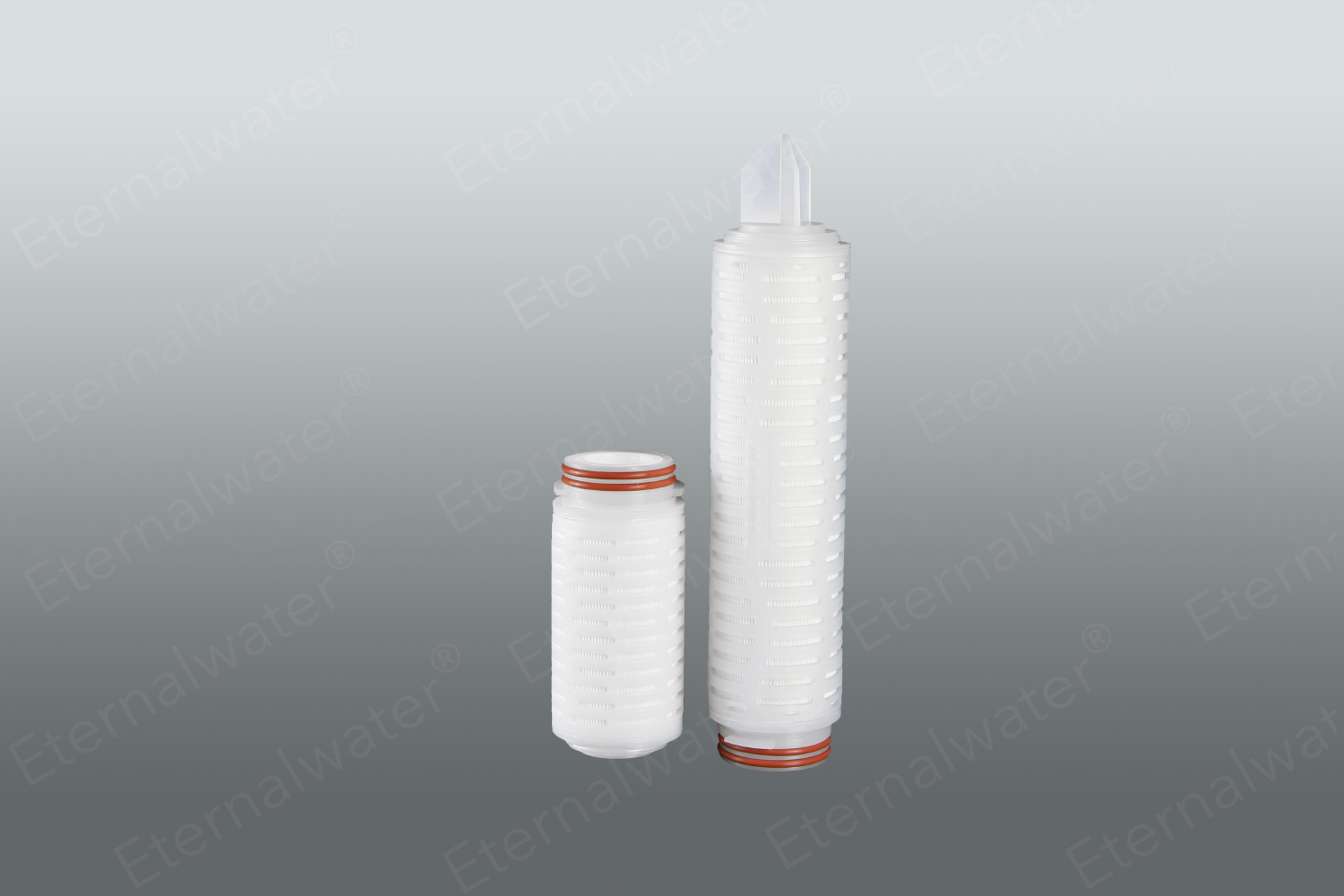

The multi-layer polypropylene filter element adopts the multi-layer gradient PP membrane structure, whose high pollutant capacity makes it the most economical and efficient filter element.Integrity test before delivery to ensure high quality of products.
  • Product features
  • No fiber shedding Multi-layer gradient PP film structure High removal efficiency Each filter element passes the integrity test
  • Industry Application
  • Electronic industry:High viscosity reagent filtration Food industry:Fine filtration of liquor, beverages and other liquids. Pharmaceutical industry: High pollutant capacity filtration for liquids such as biopharmaceuticals and medicinal solvents
PRODUCT DESCRIPTION
  • Operating conditions
  • Operating temperature: ≤80℃
  • Maximum pressure difference that can withstand: 4bar (21℃)／2.4bar (80℃)
  • Sterilization method: 121℃/30min steam sterilization
  • Material structure
  • Filter material: PP
  • Inner core: PP
  • shell: PP
  • End cap: PP
  • Sealing technology: hot melt welding
  • Gasket/O-ring: EPDM, silica gel, fluororubber, PTFE coated, PTEF
  • Filter element size
  • external diameter: (68mm)
  • length: 5〞、10 〞、20 〞、30〞、40〞
Ordering Information
  • Series
  • EDP
  • Micron Rating
  • 010=0.10μm
  • 022=0.22μm
  • 045=0.45μm
  • 100=1.00μm
  • 300=3.00μm
  • 500=5.00μm
  • End cap type
  • J1=222/Fin
  • J2=222/Flat
  • J3=226/Fin
  • J4=226/Flat
  • J5=DOE
  • Length
  • 05=5"
  • 10=10"
  • 20=20"
  • 30=30"
  • 40=40"
  • O-ring
  • S=Silicone
  • E=EPDM
  • V=Viton
  • D=PTFE
  • core
  • A=PP core
  • B=PP core+Interface lined with stainless steel
  • C=PP core+Lined with stainless steel
